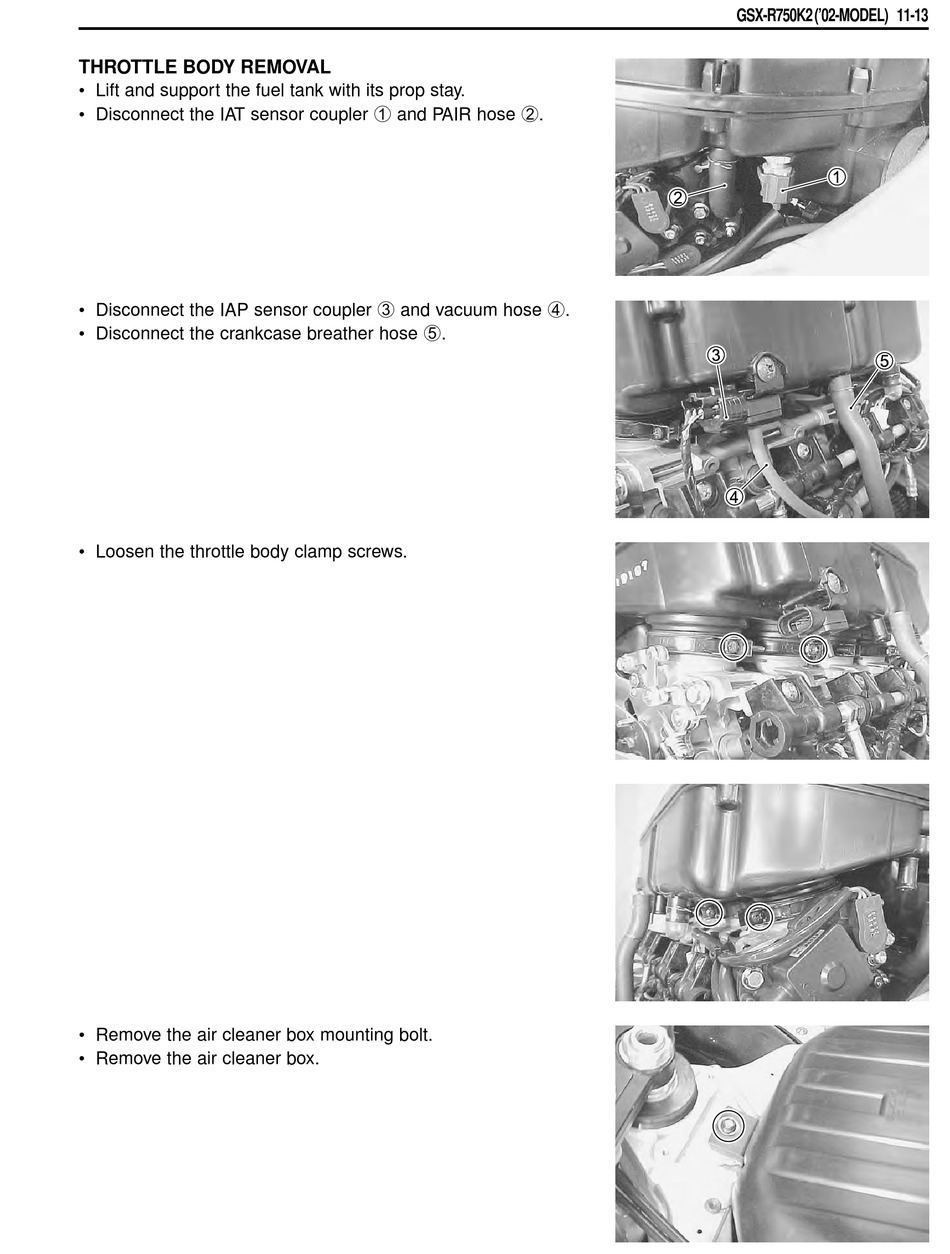

GSX-R750K2 ('02-MODEL) 11-13

THROTTLE BODY REMOVAL

• Lift and support the fuel tank with its prop stay.

• Disconnect the IAT sensor coupler 1 and PAIR hose 2.

• Disconnect the IAP sensor coupler 3 and vacuum hose 4.

• Disconnect the crankcase breather hose 5.

• Loosen the throttle body clamp screws.

• Remove the air cleaner box mounting bolt.

• Remove the air cleaner box.
