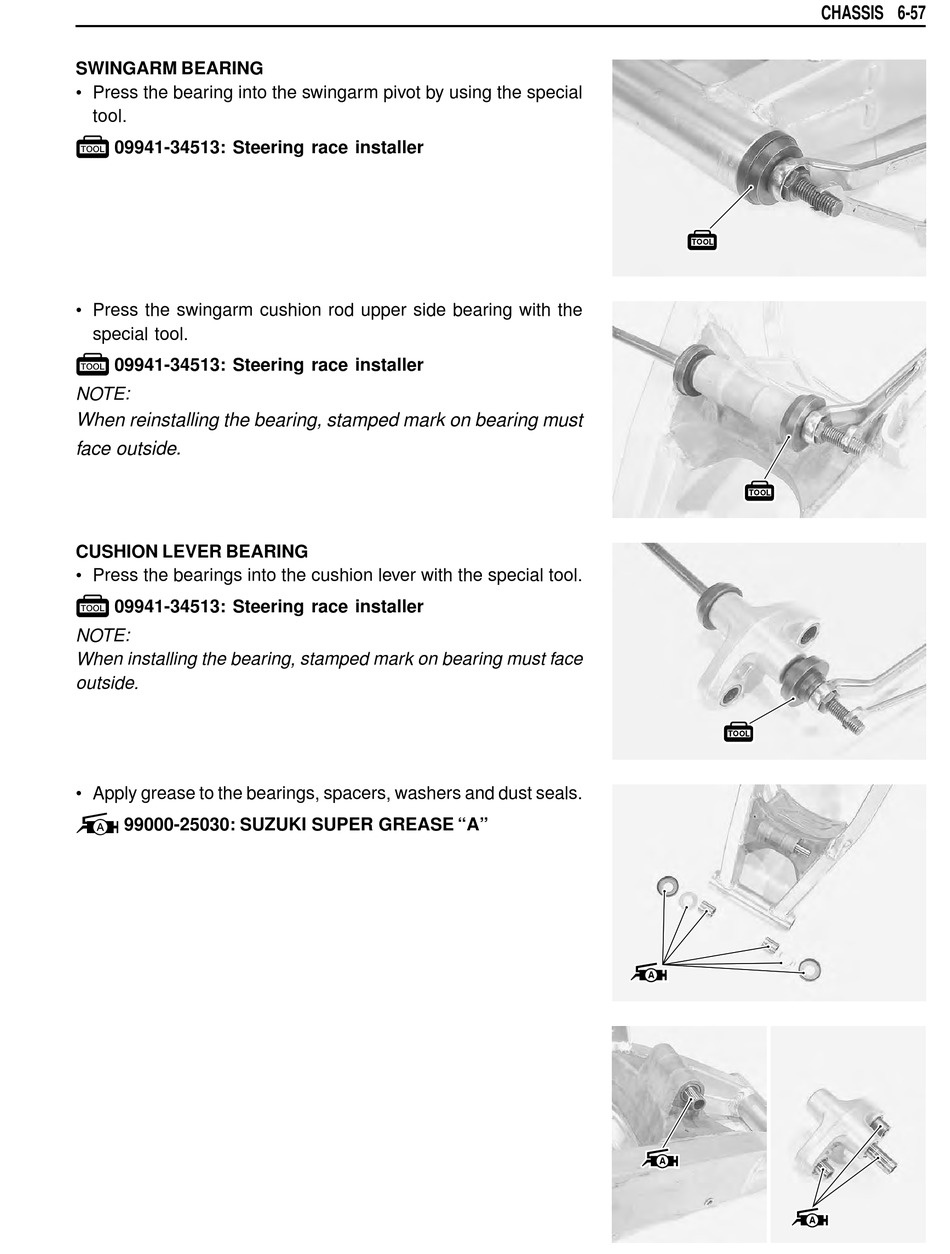

SWINGARM BEARING

• Press the bearing into the swingarm pivot by using the special

[ 09941-34513: Steering race installer

• Press the swingarm cushion rod upper side bearing with the

special tool.

[ 09941-34513: Steering race installer

When reinstalling the bearing, stamped mark on bearing must

face outside.

CUSHION LEVER BEARING

• Press the bearings into the cushion lever with the special tool.

[ 09941-34513: Steering race installer

When installing the bearing, stamped mark on bearing must face

• Apply grease to the bearings, spacers, washers and dust seals.

W 99000-25030: SUZUKI SUPER GREASE "A"

CHASSIS 6-57
