Configuring and Managing Zones

Zone Sets

Tip Use the show wwn switch command to retrieve the sWWN. If you do not provide a sWWN, the software
automatically uses the local sWWN.
The following examples show how to configure zone members:
switch(config)# zone name MyZone vsan 2
pWWN example:
switch(config-zone)# member pwwn 10:00:00:23:45:67:89:ab
Fabric pWWN example:
switch(config-zone)# member fwwn 10:01:10:01:10:ab:cd:ef
FC ID example:
switch(config-zone)# member fcid 0xce00d1
FC alias example:
switch(config-zone)# member fcalias Payroll
Domain ID example:
switch(config-zone)# member domain-id 2 portnumber 23
Local sWWN interface example:
switch(config-zone)# member interface fc 2/1
Remote sWWN interface example:
switch(config-zone)# member interface fc 2/1 swwn 20:00:00:05:30:00:4a:de
Domain ID interface example:
switch(config-zone)# member interface fc 2/1 domain-id 25
Zone Sets
In the following figure, two separate sets are created, each with its own membership hierarchy and zone
members.

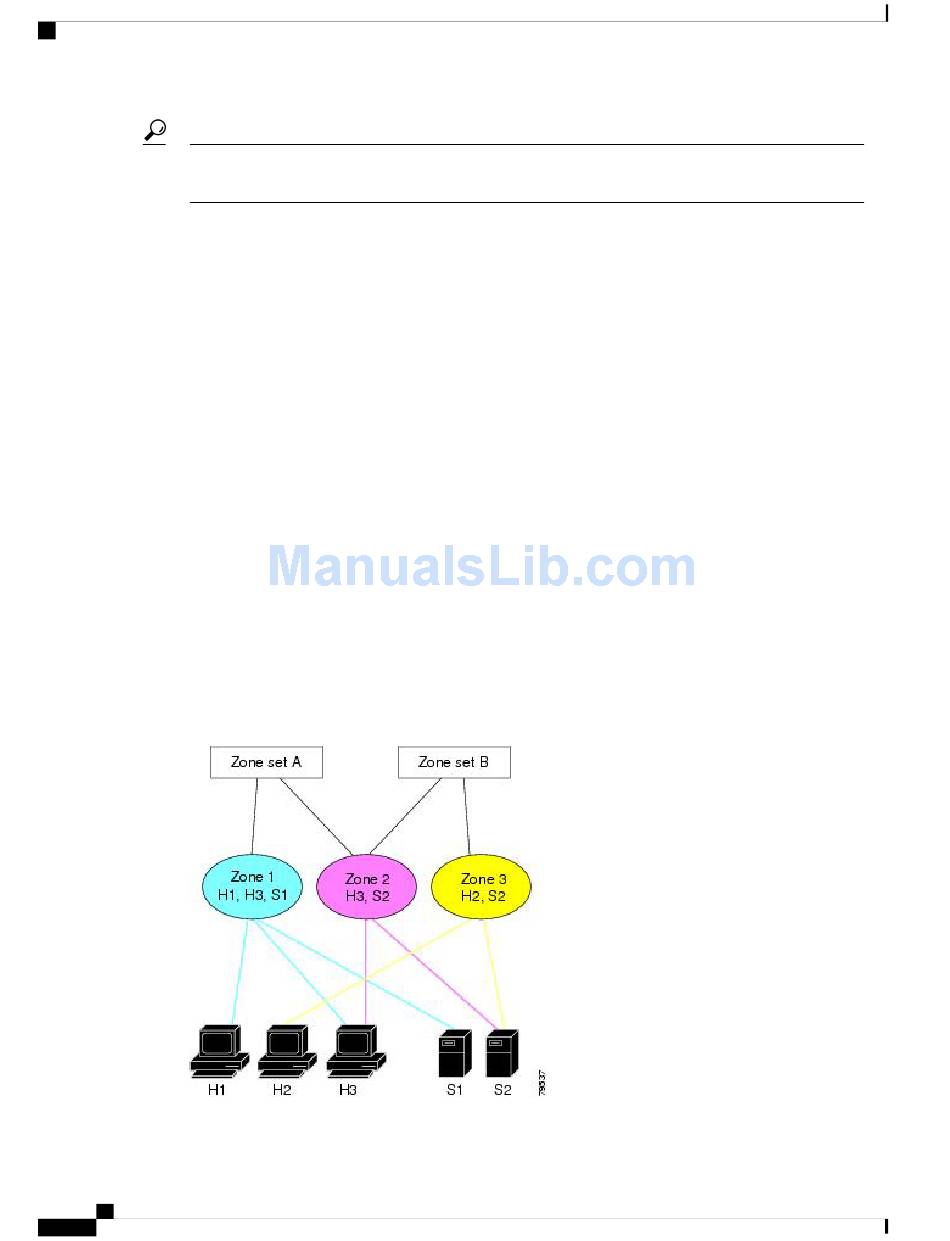

Figure 67: Hierarchy of Zone Sets, Zones, and Zone Members
