Configuring SAN Port Channels

Configuring SAN Port Channels
particular exchange are sent on the same link. For exchange 1, no frame uses link 2. For the next exchange,
link 2 is chosen by the hash algorithm. Now all frames in exchange 2 use link 2.

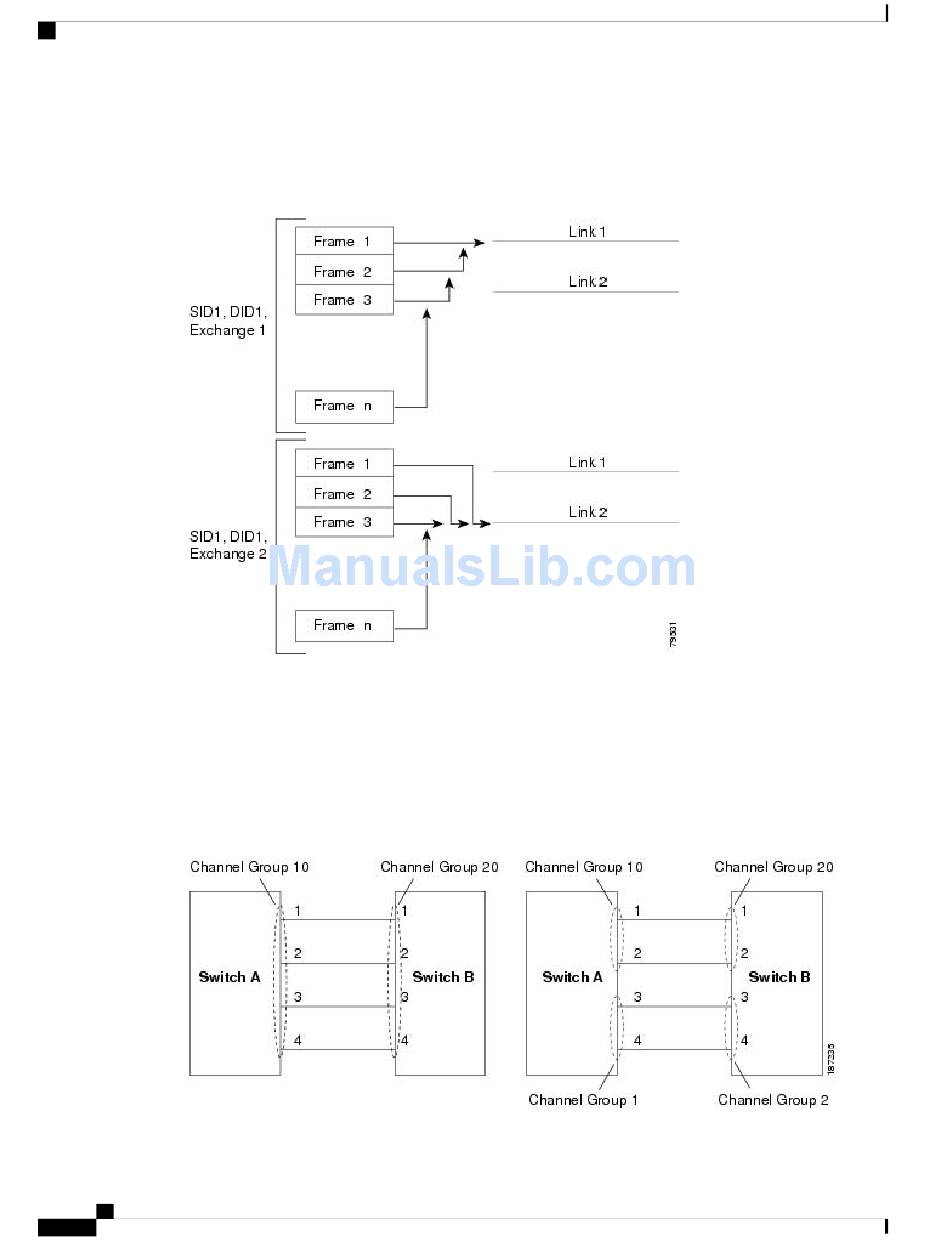

Figure 56: SID1, DID1, and Exchange-Based Load Balancing
Configuring SAN Port Channels
SAN port channels are created with default values. You can change the default configuration just as any other
physical interface.
The following figure provides examples of valid SAN port channel configurations.
Figure 57: Valid SAN Port Channel Configurations
