Config | Utility; Figure 7-13. 'Config | Utility' Page - Comtech EF Data LBC-4000 Installation And Operation Manual

7.5.3.3

Config | Utility

Use this page to configure a variety of converter operating parameters.
Utility
Click [Refresh] to update screen.
Name
Date
Time
Circuit ID
Current Active Firmware
Next Reboot Image
Fault Relay Logic
Perform Soft Reboot
Firmware Information
Ethernet Interface Operation

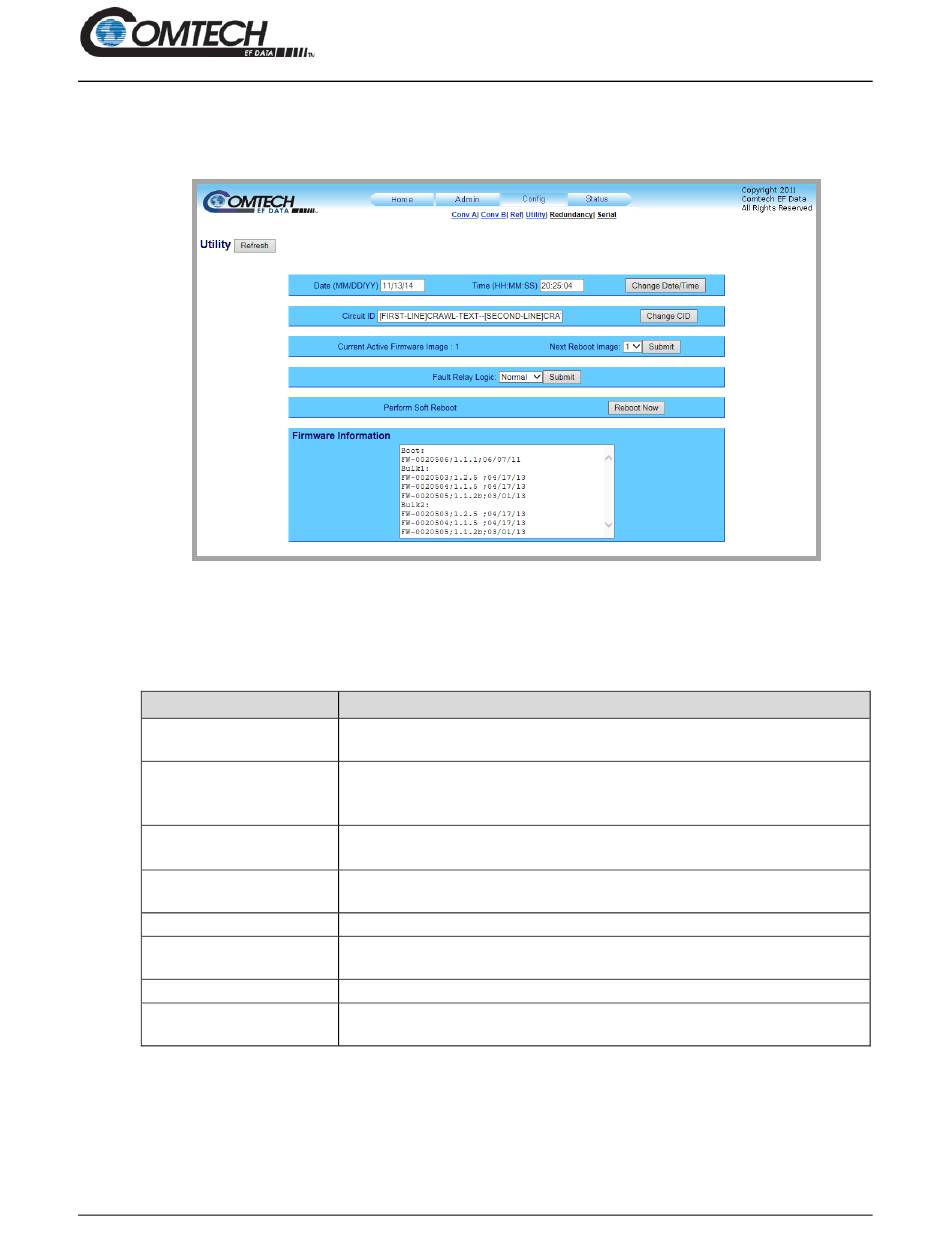

Figure 7-13. 'Config | Utility' Page

Enter a date in the form MM/DD/YY (where MM = month [01 to 12],
DD = day [01 to 31], and YY = year [00 to 99]).
Enter a time in the form HH:MM:SS (where HH = hour [00 to 23], MM = minutes [00
to 59], and SS = seconds [00 to 59]).
Click [Change Date/Time] to update settings.
Enter a Circuit ID string of up to 48 characters – 24 characters per line.
Click [Change CID] to update settings.
This read-only section identifies the selected Current Active Firmware Image. In this
example, Image 2 is the Current Active Firmware Image.
Use the drop-down menu to select Image 1 or 2. Press [Submit] when done.
Use the drop-down menu to select the Fault Relay Logic as Normal or Invert, and
then click [Submit].
Click [Reboot Now] to reboot the unit using the Current Active Firmware Image.
This read-only scrollable window identifies the Bootrom, Bulk Image#1 and Bulk
Image #2 firmware information.
