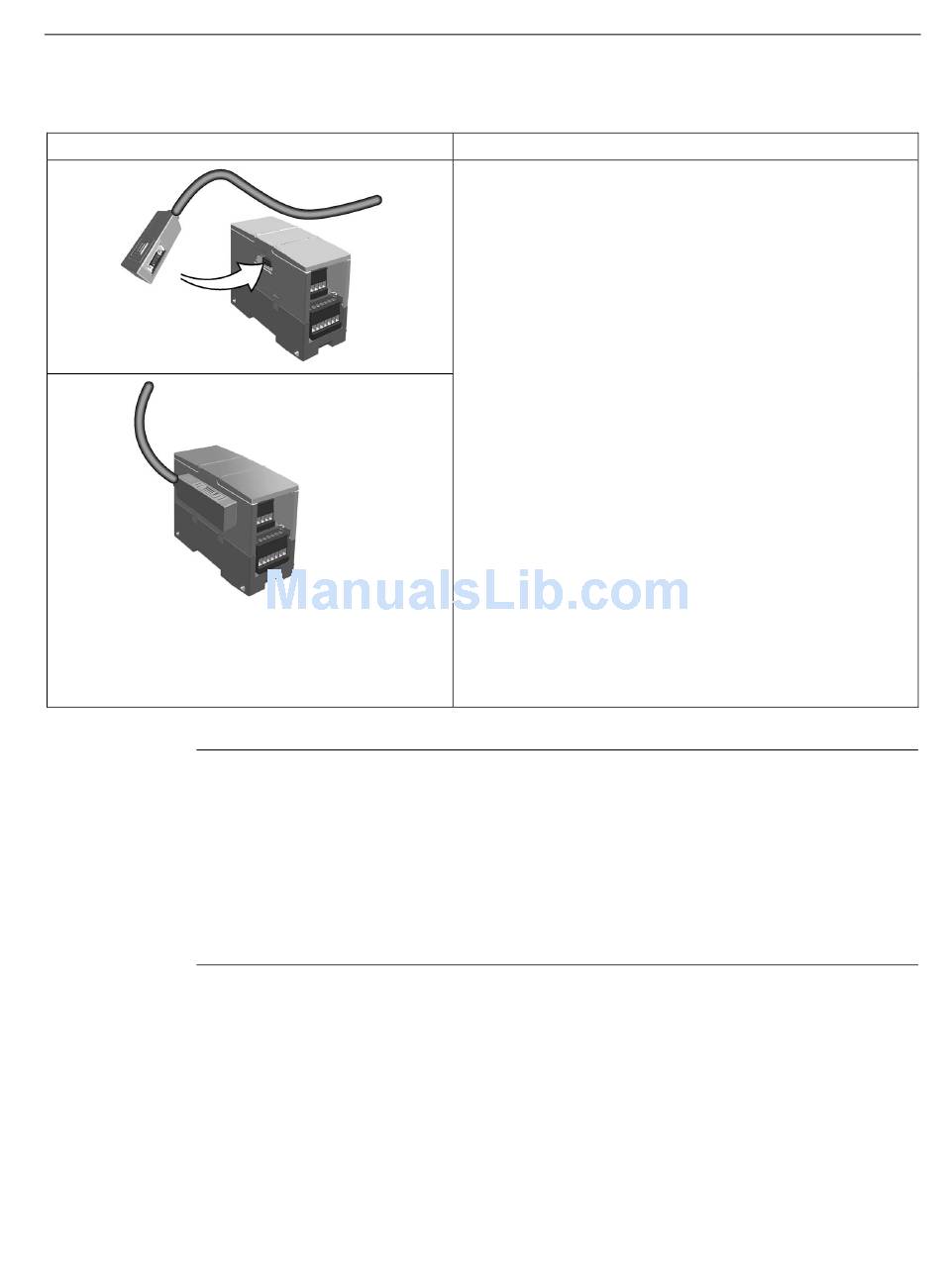

Table 3- 10 Installing and removing the female connector of the expansion cable
Task
Note
Installing the expansion cable in a vibration environment
If the expansion cable is connected to modules that move or are not firmly fixed, the
connection on the cable ends can gradually become loose.
Use a cable tie to fix the cable ends on the DIN-rail (or other place) to provide extra strain
relief.
Avoid using excessive force when you pull the cable during installation. Ensure the cable-
module connection is in the correct position once installation is complete.
S7-200 SMART
System Manual, V2.3, 07/2017, A5E03822230-AF
3.3 Installation and removal procedures
Procedure
To install the female connector:
1. Ensure that the CPU and all S7-200 SMART equipment are
disconnected from electrical power.
2. Push the female connector into the bus connector on the left
side of the expansion module.
3. The female connector is locked in place when it is fully seed-
ed.
To remove the female connector:
1. Ensure that the CPU and all S7-200 SMART equipment are
disconnected from electrical power.
2. Use your thumb to press down the latch on the top of the
female connector to release it from the expansion module.
3. Remove the female connector from the expansion module by
pulling it straight out.
