Block icons and faceplate views
3.2 Faceplates
Object properties TrendConfiguration
Trends
Trend curves configuration for the MMOprtn block
Trends_SelFp1
Trend curves configuration for the block connected via the parameter Trends_SelFp1 (e.g.
MMMeas).
Trends_SelFp2
Trend curves configuration for the block connected via the parameter Trends_SelFp2.

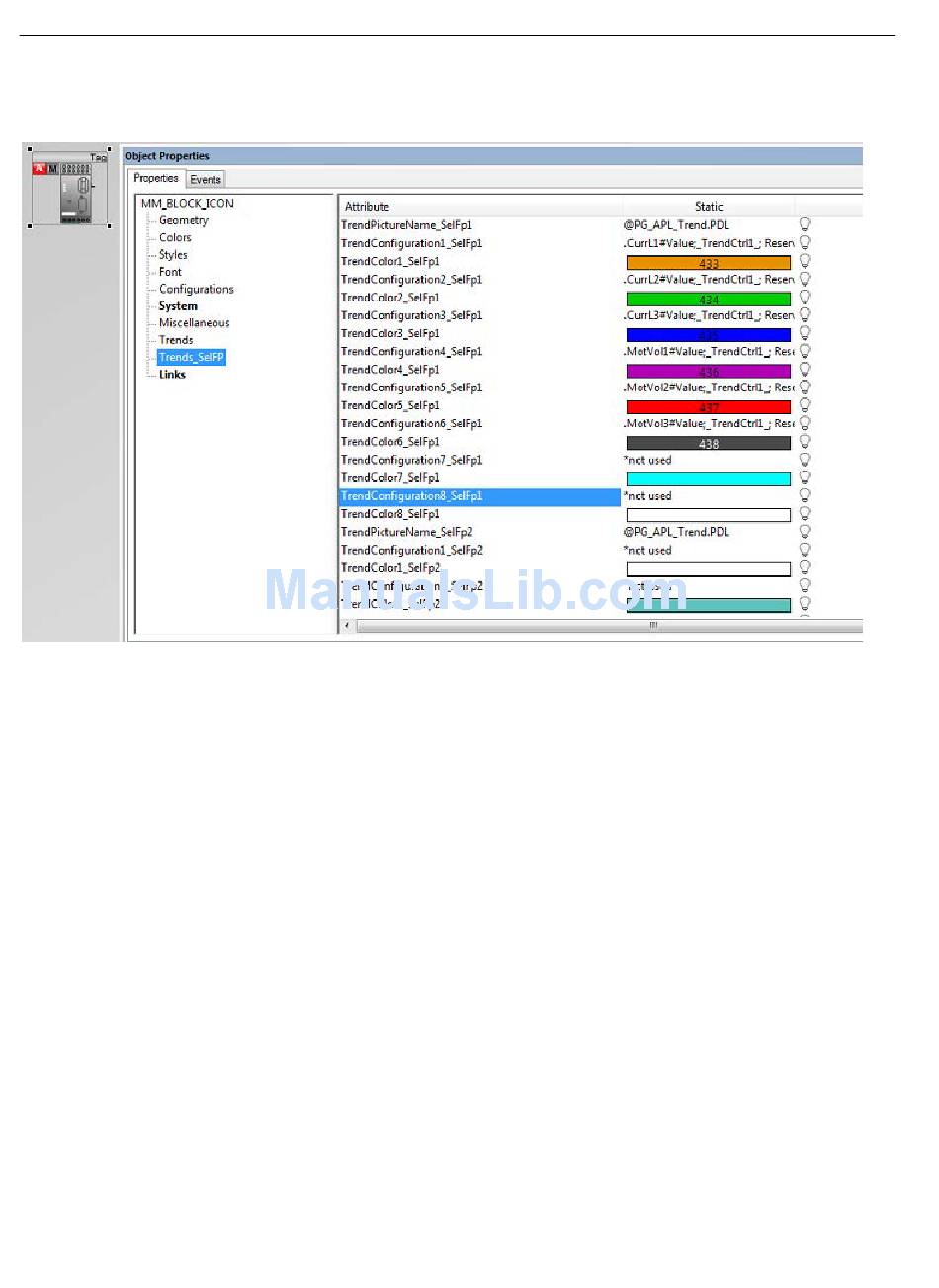

Figure 3-5
Object properties TrendConfiguration
64
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
SIMOCODE pro PCS 7 Library V9.0
