DP2K-E series
User and installation manual
R5906693/01
19/06/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP2K-E series and is the answer not in the manual?

Questions and answers

Related Manuals for Barco DP2K-E series

Summary of Contents for Barco DP2K-E series

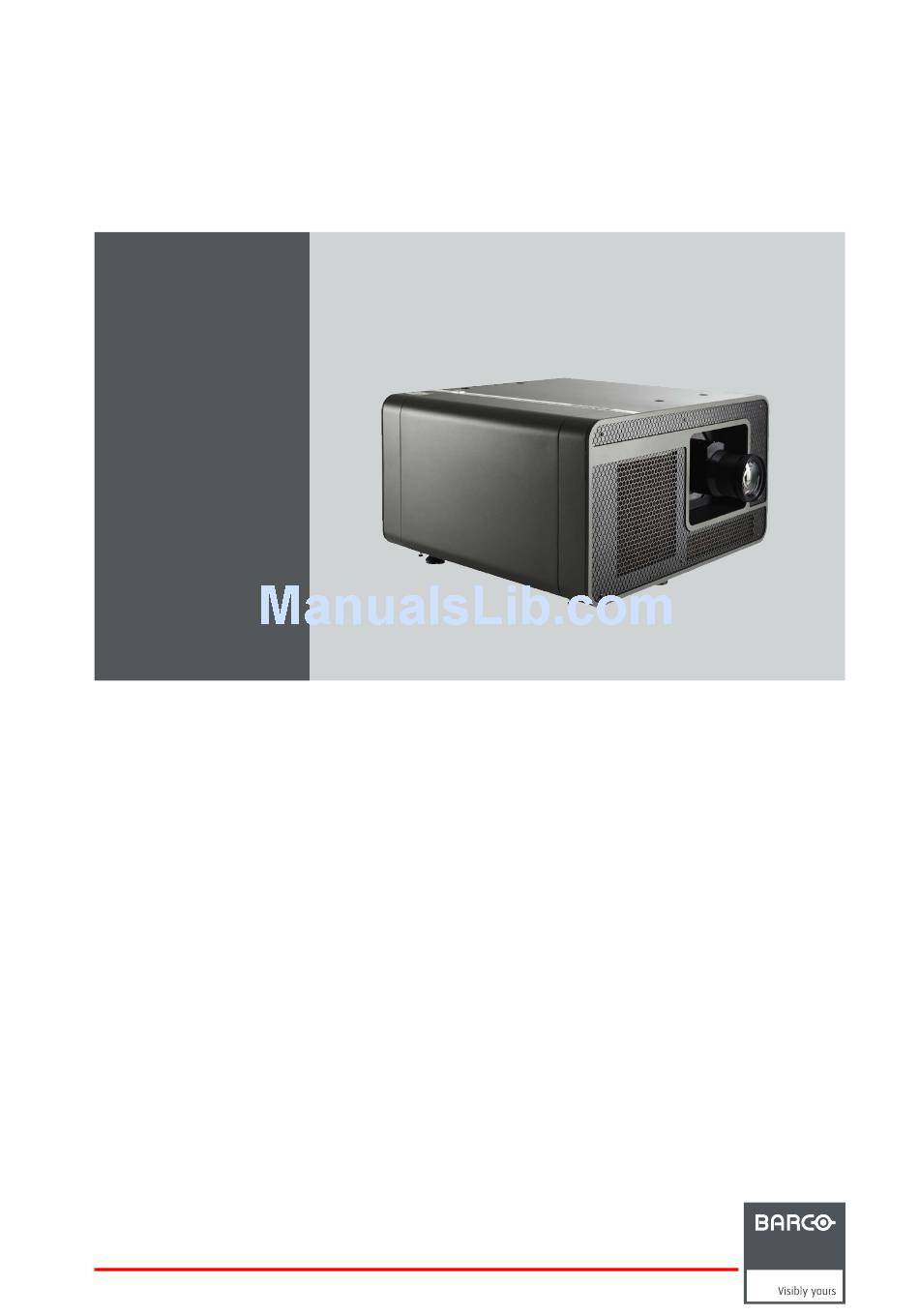

  • Page 1 DP2K-E series User and installation manual R5906693/01 19/06/2015...
  • Page 2 Barco Visual (Beijing) Electronics Co., Ltd 地址：北京市 昌平区 中关村科技园 昌平园 昌盛路 16号 Phone: +86 10 8010 1166 Fax: +86 10 8970 2793 Support: www.barco.com/en/support Visit us at the web: www.barco.com Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.36.82.11 Fax: +32 56.36.883.86...

  • Page 3: Software License Agreement

    The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
  • Page 4 GNU-GPL code If you would like a copy of the GPL source code contained in this product shipped to you on CD, please contact Barco. The cost of preparing and mailing a CD will be charged.

  • Page 5: Table Of Contents

    13.2 Removal of the Lamp Module ..................... .101 R5906693 DP2K-E SERIES 19/06/2015...
  • Page 6 19.5 Importers contact information ..................... .159 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 7: Welcome

    Congratulations May we congratulate you on your purchase of a Barco DP2K-E series projector! It is our sincere wish that this digital projector meets up to your every expectation and that you thereby take a little time to page through this important manual. Familiarizing yourself with it’s features, important safety instructions and necessary maintenance actions, will ensure you enjoy many years of reliable,...

  • Page 8: About This Manual

    How to use this manual? We suggest that you read over this manual before you install and use your DP2K-E series projector. Inside it, you will find important information regarding safety, installation and maintenance. We urge even the experienced user to take the necessary time to page through this manual.

  • Page 9: Safety

    “warnings” and “cautions” as well. Clarification of the term “DP2K-E series” used in this document When referring in this document to the term “DP2K-E series” means that the content is applicable for following Barco products: • DP2K-6E Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guar- antee.

  • Page 10: General Considerations

    • Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service deal- ers. • All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 11: Important Safety Instructions

    Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, remove all power from the projector. This will prevent damage to the projector due to lightning and AC power-line surges. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 12 fire extinguishers. Never use water on an electrical fire. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
  • Page 13 If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitu- tions may result in degraded performance and reliability, fire, electric shock or other hazards.

  • Page 14: Product Safety Labels

    Lamp House. General Warning Hazard Electric Voltage Hazard Hot Surface Hazard UV Hazard Hazardous moving parts. On the fans inside the projector Keep away from moving fan blades. Keep fingers and other body parts away. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 15: Light Beam Hazard Distance (Hd)

    On image 2-1 a typical setup is displayed. It must be verified by the installer if these minimum requirements are met. If required a restricted zone (RZ) in the theater must be established. This can be done by using physical barrier, like a red rope as illustrated in image 2-2. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 16 2. Safety Image 2-2 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 17: Hd In Function Of The Lens Throw Ratio (Tr)

    HD in function of the lens Throw Ratio (TR) TR (Throw Ratio) The ratio of the distance to the screen (throw) to the screen width. Hazard Distance Image 2-3 HD (in meter) in function of the Throw Ratio (TR) R5906693 DP2K-E SERIES 19/06/2015...
  • Page 18 2. Safety R5906693 DP2K-E SERIES 19/06/2015...

  • Page 19: Getting Started

    Read this chapter before installing your DP2K-E series projector. It contains important information concerning installation require- ments for the DP2K-E series projector, such as minimum and maximum allowed ambient temperature, humidity conditions, required safety area around the installed projector, required power net, etc.

  • Page 20: Installation Requirements

    Projector weight Do not underestimate the weight of the DP2K-E series projector. The projector weights approximately 53 kg (116.8 lb.) without lens. Ensure that the pedestal on which the projector is installed is capable of supporting the complete load of the system. Minimum 4 adult persons are needed to carry the projector.
  • Page 21 3. Getting started Barco offers a pedestal for the DP2K-E series projector. This universal pedestal allows for a solid and easy setup of the projector. The universal pedestal support 19” rack systems. (projector peripherals such as alter- native content switchers, ShowVault, etc.)

  • Page 22: Unpacking The Projector

    3. Take out the small box (3) between the polystyrene foam on top of the projector. This box contains the product documentation (manuals etc.). 4. Remove the polystyrene foam (4) from the top of the projector. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 23 6. Remove the plastic cover from the Lens Holder opening. After unpacking, allow the projector to acclimatize to a room temperature ranging from 10°C (50°F) to 35°C (95°F) MAX. Neglecting this may result in a start up failure of the Light Processor Unit. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 24: Initial Inspection

    This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents and scratches, and that the operating panel is not scratched or cracked. The Barco Sales and Service office should be notified as soon as possible if this is not the case.

  • Page 25: Installation Process

    Each stage is briefly described and refers to more detailed step by step procedures in this manual. Use this overview as a checklist to ensure that all stages have been followed in the setup process of the DP2K-E series projector.

  • Page 26: Installation Process Overview

    Use the lens ZOOM, SHIFT and FOCUS buttons on the Local Keypad to match the projected image with the screen. Tilt the projector in case you can not SHIFT the image completely upon the screen. See "Positioning the DP2K-E series projector at port window", page 24.

  • Page 27: Physical Installation

    5. Physical installation 5. PHYSICAL INSTALLATION About this chapter This chapter describes how the mechanical and electrical set up of your DP2K-E series projector has to be done. Overview • Positioning the DP2K-E series projector at port window • Connecting the projector with the power net •...

  • Page 28: Positioning The Dp2K-E Series Projector At Port Window

    The installation of the DP2K-E series projector requires at least 4 adult persons. General guidelines • Use a solid pedestal to mount the DP2K-E series projector on to. Ensure that the pedestal can support the weight of the projector and that all feet of the projector are captured. •...

  • Page 29: Projector Tilting

    Projector tilting In an ideal installation, the DP2K-E series projector lens surface is centered with and parallel to the screen. This orientation helps to ensure optimized lens performance with minimal offset. If this position is not possible (such as when the projector is significantly higher than the center of the screen), it is better to rely on offset rather than extra tilt.
  • Page 30 The back feet of the projector can be turned out maximum 125mm. This correspond with a forward tilt of 12° if the front foot is completely turned in. Barco offers a pedestal for the DP2K-E series projector. This universal pedestal allows you to easily tilt the projector forward up to 6°.

  • Page 31: Connecting The Projector With The Power Net

    (18AWG), min. 300V with IEC 60320 - C13 connector How to connect the main AC power with the DP2K-E series projector projector? 1. Remove the right side cover of the projector. See procedure "Removal of the right side cover", page 125.

  • Page 32: Connecting A Ups To The Projector Electronics

    5. Physical installation Connecting a UPS to the projector electronics ARNING Only use UPS units which are suitable for the DP2K-E series projector. See chapter “Installation requirements” for more information about the requirements of the UPS. Necessary tools 3mm Allen wrench How to connect the UPS 1.
  • Page 33 9. Install the right side cover of the projector. See procedure "Installation of the right side cover", page 130. AUTION The electrical connection with the UPS INLET socket of the projector must be done with a certified AC power supply cord (minimum 0,75 mm² or 18 AWG and minimum 300V) R5906693 DP2K-E SERIES 19/06/2015...
  • Page 34 5. Physical installation R5906693 DP2K-E SERIES 19/06/2015...

  • Page 35: Lenses & Lens Selection

    About this chapter This chapter gives an overview of available lenses for your DP2K-E series projector and explains how to select the best suited lens for a specific situation using the lens calculator. Also, it is explained how to install and remove a lens from the projector Lens Holder and how to shift, zoom and focus the lens.

  • Page 36: Available Lenses

    For the DP2K-E series projector the 0.69” DC2K lens family is used. The table below is subject to changes and was last updated on 15 October 2012. Consult https://my.barco.com for the most recent information about available lenses for the DP2K-E series projector. 0.69” DC2K zoom lenses Product Number...

  • Page 37: Lens Selection

    6. Lenses & Lens selection Lens selection Which lens do I need? 1. Go to Barco’s website on www.barco.com and click on myBarco 2. Login on. If you are not yet registered create a login and password. With the created login and password, it is possible to enter myBarco.

  • Page 38: Lens Installation

    FOCUS barrels of the installed lens. AUTION Never transport the projector with a Lens mounted in the Lens Holder. Always remove the Lens before transporting the projector. Neglecting this can damage the Lens Holder and Prism. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 39: Lens Removal

    It’s recommended to place the Lens caps of the original Lens packaging, back on both sides of the removed Lens to protect the optics of the Lens. It’s recommended to place the plastic cover of the original projector packaging, back into the Lens opening to prevent intrusion of dust. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 40: Lens Shift, Zoom & Focus

    Lens shift, zoom & focus Motorized lens adjustment The DP2K-E series projector is equipped with a motorized lens shift and zoom & focus functionality. Maximum shift range The lens can be shifted with respect to the internal optics of the projector (DMD) which results in a shifted image on the screen (Off-Axis).
  • Page 41 PURPLE : When pushing the Shift, Zoom or Focus button the backlight color is purple of the part of the button that is pushed. This indicates that the requested action is ongoing. • RED : The backlight color of the Shift, Zoom and Focus buttons is red in case of end of range. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 42 6. Lenses & Lens selection R5906693 DP2K-E SERIES 19/06/2015...

  • Page 43: Input & Communication

    This chapter describes the functionality of the Local Keypad, the projector Status Light (tail light) and the different input and commu- nication ports of your DP2K-E series projector. Note that all information about the ICMP is gathered into one separated chapter: "ICMP", page 47.

  • Page 44: Introduction

    General The Input & Communication side of the DP2K-E series projector consists of a Local Keypad integrated into the projector housing and a card cage with three slots. The top side of the projector is equipped with a tail light which reflects the status of the projector.

  • Page 45: Local Keypad

    Enter or leave Sleep mode can also be done via a 2 dedicated projector command (USB/Ethernet), or via two predefined Macros (not editable) with GPIO, or via the Communicator. The Sleep button is disabled if the lamp is on. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 46 Test Pattern button a white backlight color indicates that no test pattern is selected (applied source can be displayed). for the Key button a white backlight color means that the projector is not secured (tamper event). R5906693 DP2K-E SERIES 19/06/2015...

  • Page 47: Projector Status

    Enter or leave Sleep mode can also be done via 2 dedicated projector command (USB/Ethernet), or via two predefined Macros (not editable) with GPIO of the Cinema Controller (not the GPIO of the ICMP), or via the Communicator. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 48 7. Input & Communication The projector always boots up in the same mode (E.g. Standby or Sleep) as it was switched OFF. The Sleep button is disabled if the lamp is ignited. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 49: Cinema Controller

    Diagnostic LEDs The front plate of the Cinema Controller contains 4 diagnostic LEDs to display the status of the power supply (reference 6 image 7-4): • +VTEC supply (not used on DP2K-E series projector). • +24V supply. • +12V supply.
  • Page 50 The USB-IN port of the communication interface supports RS232 serial communication. You can use the RS232 input port to connect a local PC to your DP2K-E series projector projector. This way you can configure and control your DP2K-E series projector projector from your local PC.

  • Page 51: Icmp

    ICMP reset button and status LEDs • ICMP HDD status LEDs • ICMP device certificate • ICMP configuration via Communicator • Obtaining the Barco ICMP certificate • Removing a HDD form the ICMP • Installing a HDD into the ICMP R5906693 DP2K-E SERIES 19/06/2015...

  • Page 52: Icmp Introduction

    The Card Cage can be different depending the projector type but it always consists of a button module and several removable units. The ICMP (reference 1) is inserted into the former ICP slot and IMB slot above the Barco Cinema Controller (reference 2).
  • Page 53 8. ICMP ICMP location in the Card Cage of a E-series projector. Image 8-4 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 54: Icmp Hdd

    Once the drive is removed from the original packaging the recommended maximum period between drive operation cycles is 30 days. During any storage period the drive non-operational temperature, humidity, wet bulb, atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 55: Icmp Communication Ports

    The ICMP can be connected to a USB 3.0 Media to load content. The USB port can be used to load content (DCP), or keys (KDM), or software update. NOTE: These ports are recommended for fast ingest when connected to an appropriate USB 3.0 source. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 56 USB 3.0 defines a new SuperSpeed mode with a signaling speed of 5 Gbit/s and a usable data rate of up to 4 Gbit/s (500 MB/s). A USB 3.0 port is usually colored blue, and is backwards compatible with USB 2.0. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 57: Icmp Source Input Ports

    Single 1920 x 1200 @60Hz 8, 10 Single 2048 x 1536 @60Hz 8, 10 Single 1280 x 800 @60Hz 8, 10 Single 1280 x 720 @60Hz 8, 10 Single 1680 x 1050 @60Hz 8, 10 Single R5906693 DP2K-E SERIES 19/06/2015...
  • Page 58 • 720 x 576p at 50Hz Notes: • Includes NTSC refresh rate = (Hz*1000)/1001 • Upscaled x2 if smaller than 50% of native DMD size, while maintaining aspect ratio (aka automatic 2K→4K up-scaling on 4K projectors) R5906693 DP2K-E SERIES 19/06/2015...
  • Page 59 Interlaced 59.94 29.57 SMPTE 274M 1920x1080 23.976 23.976 Segmented frame SMPTE RP211 29.57 29.57 SMPTE 428-9 2048x1080 23.976 23.976 Progressive 29.97 29.97 SMPTE 428-9 2048x1080 23.976 23.976 Segmented frame 29.97 29.97 Dual link (2xSMPTE 292M) formats R5906693 DP2K-E SERIES 19/06/2015...
  • Page 60 The formats in the above table support both RGB (4:4:4) and YCBCR (4:2:2 and 4:4:4) color encoding using 10 or 12 bits/component. • 4:4:4 10 bits/component • 4:4:4 12 bits/component • 4:2:2 12 bits/component • 4:4:4 10 bits/component • 4:4:4 12 bits/component R5906693 DP2K-E SERIES 19/06/2015...
  • Page 61 HDMI-compliant device ("the source device") to a com- patible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 62: Icmp Reset Button And Status Leds

    ICMP is rebooted (after reset). Resetting the ICMP with lasers on can create a risk as the proper operation of the DMD cooling cannot be guaranteed in this case. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 63: Icmp Hdd Status Leds

    (Web) Commander. See user guide of the (Web) Commander. page 66. Ensure to insert the HDDs firmly. If problem remains try “RAID Initialize”. See user guide of the Communicator. Note that all content will be lost! If problem remains contact Service for further instructions. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 64 8. ICMP In case the ICMP has to be returned to factory (e.g. for repair) the non defective HDDs should be removed and kept. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 65: Icmp Device Certificate

    Purpose of the Barco ICMP device certificate The device certificate (*.pem) of the Barco ICMP is a digital certificate signed by Barco which is required when ordering the KDM to play a DCP that is ingested on the ICMP. The device certificate is stored inside the ICMP and on a web server.
  • Page 66 Products that have been tested per the DCI Compliance Test Plan (CTP) are posted at the DCI compliance web site. Notably, DCI compliance does not require compliance to the full set of SMPTE DCP standards. A copy of the most recent DCI specification can be downloaded from the DCI website (http://dcimovies.com). R5906693 DP2K-E SERIES 19/06/2015...

  • Page 67: Icmp Configuration Via Communicator

    • Verify internal clock of the ICMP. All installation and maintenance operations on the ICMP are performed via Communicator, the Barco config- uration software. Please refer to the Communicator user guide for further information. About Default settings The restore of factory setting is a feature that allows removing all settings performed on the ICMP and replaces them with the default values set at the factory.

  • Page 68: Obtaining The Barco Icmp Certificate

    8. ICMP Obtaining the Barco ICMP certificate Necessary tools Smartphone (with auto-focus) or control software (e.g. Communicator, Commander or WEB Commander) Using the CertID label to download the ICMP certificate 1. Scan the QR code (reference 1) on the front face of the ICMP with a smartphone. It’s recommended to use a smartphone with auto-focus.

  • Page 69: Removing A Hdd Form The Icmp

    Image 8-12 3. Push the unlock button to open the handle. Image 8-13 4. Pull the HDD out of its slot. Image 8-14 To install the HDD see procedure "Installing a HDD into the ICMP", page 66. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 70: Installing A Hdd Into The Icmp

    This procedure assumes that the HDD slot of the ICMP is empty. If not, see procedure "Removing a HDD form the ICMP", page 65. AUTION Always use a new empty spare part HDD from Barco to replace a malfunction HDD. Do not use a HDD from another ICMP HDD set. AUTION Always make sure that all HDDs in the ICMP HDD set have the same storage capacity.
  • Page 71 Once the RAID is completed the red LED turns off. AUTION It’s strongly recommended to complete the RAID recovery process prior to starting a show. This to ensure that the content integrity is preserved and that the show is not interrupted. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 72 8. ICMP R5906693 DP2K-E SERIES 19/06/2015...

  • Page 73: Communicator Touch Panel

    This chapter gives a short introduction of the Communicator Touch Panel, describes how to install the Communicator Touch Panel interface onto the top of your DP2K-E series projector and how to connect the interface. For operation instructions refer to the user guide of the Communicator software.

  • Page 74: Communicator Touch Panel

    Flexible Touch Panel interface The Touch Panel interface can be mounted upon a swivel arm which easily fits on top of the DP2K-E series projector. One central locking mechanism of the swivel arm allows instant fixation of the Touch Panel interface in any position.
  • Page 75 Touch Panel power/data customized cable Image 9-3 Customized cable to connect Touch Panel interface with the Barco projector. The Communicator Touch Panel has its own user guide which latest version is available on the Barco website. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 76: Installing The Touch Panel Interface

    Local Keypad of the projector. Image 9-5 3. Place the Touch Panel interface upon the mounting plate of the swivel arm and fasten the two wing nuts (5) as illustrated. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 77 Note: Ensure to tighten the locking nut on the connector. Image 9-8 7. Attach the multi cable to the swivel arm using the two Velcro strips. 8. Position the Touch Panel interface in the desired location. See "Repositioning the Touch Panel interface", page 74. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 78: Repositioning The Touch Panel Interface

    Image 9-9 3. Move the Touch Panel interface to the desired position. 4. Fasten the central swivel clamp by turning the knob clockwise. AUTION Never release the central swivel lock without supporting the Touch Panel interface. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 79: Starting Up

    About this chapter This chapter contains the switch ON and switch OFF procedures of your DP2K-E series projector. These procedures highlight all important points to be checked prior to switching the projector ON. This is to ensure a safe startup of the projector.

  • Page 80: Switching The Dp2K-E Series Projector On

    AUTION See user’s guide of the Communicator Touch Panel to operate and control the DP2K-E series pro- jector. When for any reason a restart of the projector is required, the content server should be restarted also.

  • Page 81: Switching The Dp2K-E Series Projector Off

    10. Starting up 10.2 Switching the DP2K-E series projector OFF How to switch the DP2K-E series projector OFF? 1. Press the Standby button on the Local Keypad or use the Communicator Touch Panel to switch the projector from Lamp ON mode to Standby mode.
  • Page 82 10. Starting up R5906693 DP2K-E SERIES 19/06/2015...

  • Page 83: Scheimpflug

    About this chapter This chapter explains the Scheimpflug principle and when to apply Scheimpflug correction upon your DP2K-E series projector. In addition to the procedure for Scheimpflug adjustment the procedure to adjust the Back Focal Length is also included in this chapter.

  • Page 84: Scheimpflug Introduction

    Set screw for nut No3. Set screw for nut No4. Lock nut. Lock nut. Lock nut. Lock nut. Reference 1, 2 and 3 are adjustment points. Reference 4 is a locking point and NOT used during Scheimpflug adjustment. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 85 SHIFT functionality of the Lens Holder to match the projected image with the projection screen. In case the SHIFT range is not sufficient then the projector can be tilted and Scheimpflug can be applied. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 86: Scheimpflug Adjustment

    8. Fully loosen the Scheimpflug nut at the lower left of the Lens Holder (reference 4 image 11-5). Use a 13mm nut driver. 9. Optimize the focus of the projected image in the center of the screen (F) using the motorized focus control (Local Keypad). FOCUS Image 11-5 R5906693 DP2K-E SERIES 19/06/2015...
  • Page 87 5. Repeat from step 1 until the projected focus pattern is as sharp as possible in the center, left, right, top and bottom of the screen. 6. Proceed with the procedure "Fixation of the Lens Holder front plate", page 84. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 88: Fixation Of The Lens Holder Front Plate

    Note: Ensure that the edges of the projected test pattern remain in place on the screen. Any movement of the image will affect the Scheimpflug adjustment. Tip: Fasten the set screw and the Scheimpflug nut alternately, without disturbing the projected image, until the Scheimpflug nut and set screw are completely tightened. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 89 11. Scheimpflug Image 11-12 7. Fasten the lock nut at the lower left of the Lens Holder. Use a 10mm nut driver. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 90: Back Focal Length Adjustment

    FLAT and/or for SCOPE. In other words, when it is impossible to focus the image on the screen for FLAT and/or for SCOPE. Note that the lenses for the DP2K-E series projector are varifocal. So, switching between FLAT and SCOPE (zoom action) requires a readjustment of the focus.
  • Page 91 Note: This is the nominal position of the Lens Holder. Image 11-17 4. Zoom the lens for maximum image on the screen (WIDE) and focus the center of the projected image using the motorized focus control (Local Keypad). R5906693 DP2K-E SERIES 19/06/2015...
  • Page 92 Note: the same turning direction as in step 4 is applicable. Image 11-21 8. Check if it is possible to focus the center of the projected image using the motorized focus control (Local Keypad) for WIDE and for TELE. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 93 If no, Scheimpflug adjustment is required. See procedure "Scheimpflug adjustment", page 82, prior to fixate the Lens Holder front plate. CAUTION: Skip the action, in the Scheimpflug adjustment procedure, to turn the three Scheimpflug adjustment nuts until the front of the nut is equally aligned with the front of the threaded rod! R5906693 DP2K-E SERIES 19/06/2015...
  • Page 94 11. Scheimpflug R5906693 DP2K-E SERIES 19/06/2015...

  • Page 95: Convergence

    12. Convergence 12. CONVERGENCE About this chapter This chapter describes how to prepare your DP2K-E series projector for convergence adjustment and how to adjust the convergence. Overview • Convergence controls • Preparing for convergence adjustment • Converging the blue pattern onto the red pattern •...

  • Page 96: Convergence Controls

    Processor top fan unit in it’s upper position, hereby still providing the necessary cooling to the unit. Image 12-1 Blue channel, knob number 1. Blue channel, knob number 2. Blue channel, knob number 3. Green channel, knob number 4. Green channel, knob number 5. Green channel, knob number 6. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 97 Thereafter, return the image back immediately to the correct position. The knob should now have become tighter in the final position and therefore resists turning due to vibrations and such. Repeat the procedure if you feel the knob is still loose. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 98: Preparing For Convergence Adjustment

    6. Select the convergence test pattern, which is illustrated below (image 12-4). Use the communicator to activate the convergence test pattern. Note: The convergence test pattern can NOT be activated via the PATTERN button on the Local Keypad. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 99 12. Convergence Image 12-4 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 100: Converging The Blue Pattern Onto The Red Pattern

    5. Repeat from step 1 until full coincidence is obtained of the blue pattern in the center, lower left and upper right of the projected image. 6. Continue with the procedure: "Converging the green pattern onto the red pattern", page 97. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 101: Converging The Green Pattern Onto The Red Pattern

    5. Repeat from step 1 until full coincidence is obtained of the green pattern in the center, lower left and upper right of the projected image. 6. Switch off the projector. 7. Continue with the procedure Closing off the Light Processor compartment. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 102: Closing Off The Light Processor Compartment

    3. Install the top cover of the projector. 4. Install the left side cover of the projector. 5. Switch on the projector. 6. Clear the security warning. See "Authorization to clear security warning on the projector", page 117. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 103: Lamp House

    This chapter explains how to replace the Lamp House. Also included is the procedure to reset the lamp parameters, which is required after a Lamp House replacement. Overview • Introduction • Removal of the Lamp Module • Installation of the Lamp House • Resetting the lamp parameters R5906693 DP2K-E SERIES 19/06/2015...

  • Page 104: Introduction

    Lamp House The DP2K-E series projector is delivered with two Lamp Houses installed. The Lamp House is a consumable item of the projector. For a better user experience, it is recommended to replace both Lamp Modules at the same time.

  • Page 105: Removal Of The Lamp Module

    3. Loosen the retaining screw (1) of the fan door and open the door (2). Image 13-2 4. Release the three retaining screws (3) of the Lamp Module. Use a 7mm nut driver or a flat screw driver. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 106 Grip the Lamp Module by the handle (4) and slide it out half way of the lamp compartment. b) Support the Lamp Module at the bottom with the other hand and remove it from the lamp compartment. c) Place the Lamp Module on a stable support. Image 13-4 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 107: Installation Of The Lamp House

    2. Tighten the three retaining screws (3) of the Lamp House. Use a 7mm nut driver or a flat screw driver. Image 13-6 3. Close the fan door (2) and tighten the retaining screw (1) of the fan door. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 108 13. Lamp House Image 13-7 4. Install the rear cover of the projector. See "Installation of the rear cover", page 134. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 109: Resetting The Lamp Parameters

    The service code appears. Click the copy icon (5) to copy the service code to the clipboard. Paste the service code in a text editor and save the file. This service code will be required to claim a lamp which is failing within its warranty. A replacement lamp cannot be shipped if this code is not provided. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 110 4. Click on Change Lamp (6). Image 13-11 The Reset lamp window appears. 5. Fill in the serial number of the new Lamp Module and click OK (7). Image 13-12 6. A warning appears. Click Yes (8) to proceed. Image 13-13 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 111: Preventative Maintenance Actions

    Contact your service partner for more information about maintenance services. Overview • 1 month maintenance actions • 3 month maintenance actions R5906693 DP2K-E SERIES 19/06/2015...

  • Page 112: Month Maintenance Actions

    See user guide of the Communicator software. Check the porthole (both sides) for dust. Clean the porthole if dust is clearly visible upon the surface. Use a clean dry micro-fiber cloth suitable for cleaning optics. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 113: Month Maintenance Actions

    Communicator version 5.0 is required. See user guide of Communicator for detailed instructions. Check the lamp module compartment and lamp fan for dust. Clean if necessary. Use a vacuum cleaner with brush attachment to remove dust. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 114 14. Preventative maintenance actions R5906693 DP2K-E SERIES 19/06/2015...

  • Page 115: Maintenance Procedures

    15. MAINTENANCE PROCEDURES ARNING All procedures described in this chapter may only be performed by TRAINED PROJECTIONISTS or qualified SERVICE PERSONNEL. About this chapter This chapter describes several maintenance procedures for your DP2K-E series projector. Overview • Check the dust filters •...

  • Page 116: Check The Dust Filters

    CAN HAVE SERIOUS SAFETY CONSEQUENCES AS WELL AS JEOPARDIZE THE INTERNAL OPTICS OF THE SYSTEM. Image 15-1 5. Install the front cover. See "Removal of the front cover", page 120. The dust filter is cleanable. See cleaning procedure for correct cleaning and drying instructions. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 117: Vacuum Cleaning Of The Dust Filters

    Lightly tap the filter on its dusty side to expel heavy dust contamination. Tip: Compressed air is also permitted to clean the filters but take care not to damage them. Caution: Do not damage the dust filter. Replace damaged dust filters immediately. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 118: Washing And Drying The Dust Filters

    About filter washing and drying For environments where popcorn grease and such can contaminate the filters, Barco advises the client to purchase one extra set of filters to cover drying time, as well as taking following extra precautions and instructions pertaining to filter cleaning and drying.

  • Page 119: Cleaning The Lens

    If smears occur when cleaning lenses, replace the cloth. Smears are the first indication of a dirty cloth. 1. Pressurized air cans are not efficient if there is too much dust on the surface, the pressure is too low R5906693 DP2K-E SERIES 19/06/2015...

  • Page 120: Cleaning The Exterior Of The Projector

    1. Switch off the projector and unplug the projector from the mains power net. 2. Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 121: Authorization To Clear Security Warning On The Projector

    In case of a correct code entry, the color of the backlight of the Numeric keys 1 to 6 changes to green for 1 second and then back to white. Each attempt to clear the security warning and its result (successfully or unsuccessfully) is logged inside the projector. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 122 15. Maintenance procedures R5906693 DP2K-E SERIES 19/06/2015...

  • Page 123: Removal And Installation Of The Projector Covers

    Installation of the top cover plate of the Light Processor compartment • Installation of the right side cover • Installation of the left side cover • Installation of the top cover • Installation of the rear cover • Installation of the front cover R5906693 DP2K-E SERIES 19/06/2015...

  • Page 124: Removal Of The

    7 mm flat screwdriver How to remove the front cover? 1. Unscrew the six captive screws (reference 1, image 16-1) from the front cover. Use a 7 mm flat screwdriver. Image 16-1 2. Remove the front cover. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 125: Removal Of The Rear Cover

    How to remove the rear cover? 1. Loosen the five captive screws (reference 1image 16-2 ) of the rear cover using a 7 mm flat screwdriver. Image 16-2 2. Remove the rear cover from the projector. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 126: Removal Of The Top Cover

    How to remove the top cover? 1. Loosen the three screws at the front and the three screws at the back (reference 1, image 16-3) using a 3 mm Allen key. Image 16-3 2. Remove the top cover from the projector. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 127: Removal Of The Left Side Cover

    1. Loosen and remove the three screws at front of the projector (reference 1, image 16-4) and the three screws at the back of the projector (reference 1, image 16-5). Use a 3 mm Allen Key. Image 16-4 R5906693 DP2K-E SERIES 19/06/2015...
  • Page 128 16. Removal and installation of the projector covers Image 16-5 2. Remove the left side cover. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 129: Removal Of The Right Side Cover

    1. Pull down and quarter clockwise turn the two push turn fasteners at the bottom of the right side cover (reference 1, image 16-6). Image 16-6 2. Remove the cover by pulling it straight out. Do not lift or tilt the cover while removing it. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 130: Removal Of The Top Cover Plate Of The Light Processor Compartment

    2. Grip the 2 handles (reference 2, image 16-8) and slide the cover towards the front of the projector until the 8 cover latches (reference 3, image 16-8) are free. Image 16-8 3. Remove the top cover plate. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 131: Removal Of The Side Cover Plate Of The Light Processor Compartment

    1. Remove the four screws at the top of the cover plate and the two screws at the bottom of the cover plate (reference 1, image 16-9). Use a 3 mm Allen wrench. 2. Slide the side cover plate left to disengage the cover, and then remove it. Image 16-9 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 132: Installation Of The Side Cover Plate Of The Light Processor Compartment

    Opening the Light Processor compartment by removing the top cover plate or side cover plate will result in a tamper event. An authorization to clear the security warning on the projector, after closing off the Light Processor compartment, will be needed! R5906693 DP2K-E SERIES 19/06/2015...

  • Page 133: Installation Of The Top Cover Plate Of The Light Processor Compartment

    Opening the Light Processor compartment by removing the top cover plate or side cover plate will result in a tamper event. An authorization to clear the security warning on the projector, after closing off the Light Processor compartment, will be needed! R5906693 DP2K-E SERIES 19/06/2015...

  • Page 134: Installation Of The Right Side Cover

    Before positioning the cover into place, guide the cables (1) (power cables and data cables) underneath the projector. When the cables are guided well, they won’t obstruct the cover when installing. Image 16-13 2. Close the cover by pushing the top firmly into place. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 135: Installation Of The Left Side Cover

    2. Fasten the 3 screws at the front left side of the projector (reference 1, image 16-14) and the 3 screws at the back left side of the projector (reference 1, image 16-15). Use a 3 mm Allen key. Image 16-14 R5906693 DP2K-E SERIES 19/06/2015...
  • Page 136 16. Removal and installation of the projector covers Image 16-15 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 137: Installation Of The Top Cover

    How to install the top cover? 1. Position the top cover on the projector. 2. Fasten the three screws at the front and the three screws at the back (reference 1, image 16-16). Use a 3 mm Allen key. Image 16-16 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 138: Installation Of The Rear Cover

    How to install the rear cover? 1. Position the rear cover on the projector. 2. Fasten the five captive screws (reference 1, image 16-17) of the rear cover using a 7 mm flat screwdriver. Image 16-17 R5906693 DP2K-E SERIES 19/06/2015...

  • Page 139: Installation Of The

    16.14 Installation of the front cover Necessary tools 7 mm flat screwdriver How to install the front cover? 1. Position the front cover on the projector. 2. Install the six captive screws (reference 1, image 16-18). Image 16-18 R5906693 DP2K-E SERIES 19/06/2015...
  • Page 140 16. Removal and installation of the projector covers R5906693 DP2K-E SERIES 19/06/2015...

  • Page 141: Specifications

    17. Specifications 17. SPECIFICATIONS About this chapter This chapter gives an overview of the specification of your DP2K-E series projector as well as the dimensions, the center of gravity and the dimensions of the optional pedestal. Overview • Specifications of the DP2K-6E •...

  • Page 142: Specifications Of The Dp2K-6E

    * 4K 24fps is standard. For 4K 60p / 4K 3D on ICMP upgrade modules a license is required. Newly-built 4K Barco Alchemy projectors have the license standard included. ** On B&C series projectors, the DisplayPort inputs replace the DVI inputs of the Cinema Controller.

  • Page 143: Specifications

    Recessed handles for easy carrying 53.8 kg / 119 lbs Ambient temperature 35°C / 95°F Max. Options Barco CineMate App (iOS & Android) - free 3D add-ons Touch screen monitor, inc. Barco Commander & Communicator Pedestal CineCare Web Auro 11.1 license...

  • Page 144: Specifications Of The Icmp

    * 4K 24fps is standard. For 4K 60p / 4K 3D on ICMP upgrade modules a license is required. Newly-built 4K Barco Alchemy projectors have the license standard included. ** On B&C series projectors, the DisplayPort inputs replace the DVI inputs of the Cinema Controller.
  • Page 145 Dual Projector license Live 3D*** Ghostbusting*** * 4K 24fps is standard. For 4K 60p / 4K 3D on ICMP upgrade modules a license is required. New-built 4K Barco Alchemy projectors have the license standard included *** Software roadmap R5906693 DP2K-E SERIES 19/06/2015...

  • Page 146: Dimensions Of The Dp2K-E Series Projector

    17. Specifications 17.3 Dimensions of the DP2K-E series projector Dimensions 138.5 4 x M8 249.5 min 23 368.5 max 125 230.4 90.15 Image 17-1 Dimensions given in millimeters. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 147: Dimensions Of The Universal Pedestal

    17. Specifications 17.4 Dimensions of the universal pedestal Dimensions 876,3 Image 17-2 Dimensions given in millimeters. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 148: Technical Regulations

    17. Specifications 17.5 Technical Regulations Certificates RoHS Image 17-3 Image 17-4 Image 17-5 Image 17-6 Rohs Rohs OK CE mark CCC mark R5906693 DP2K-E SERIES 19/06/2015...

  • Page 149: Pin Configurations

    18. Pin configurations 18. PIN CONFIGURATIONS Overview • About General Purpose Inputs & Outputs (GPIO) • Pin configurations of the Cinema Controller communication ports • Pin configurations of the ICMP communication ports R5906693 DP2K-E SERIES 19/06/2015...

  • Page 150: About General Purpose Inputs & Outputs (Gpio)

    General Purpose outputs The Barco Cinema Controller and the Barco ICMP have each eight (8) opto-isolated outputs available. Four (4) of the outputs on the Cinema Controller are dedicated for TI. The other general purpose outputs can be controlled via software.
  • Page 151 The GPO signals of the Cinema Controller and ICMP will return to their default output level when the projector is switched to power- off. This could generate unexpected "Falling Edge" triggers at the output pins. Also during power-on the GPO signals may generate unexpected "Rising Edge" events. R5906693 DP2K-E SERIES 19/06/2015...

  • Page 152: Pin Configurations Of The Cinema Controller Communication Ports

    3D interface Name Name +12V +12V Grnd 3D Input Reference - Grnd 3D Display Reference + RS232 RX 3D Display Reference - RS232 TX CONN_3D MODE - CONN_3D_MODE + CONN_SYNC - CONN_SYNC + 3D Input Reference + R5906693 DP2K-E SERIES 19/06/2015...

  • Page 153: Pin Configurations Of The Icmp Communication Ports

    Audio channel AES pair RJ-45 pin 9, 10 11, 12 13, 14 15, 16 General Purpose Output: GPO 1-4 Definition RJ-45 pin EXT_GPOUT_1_P EXT_GPOUT_1_N EXT_GPOUT_2_P EXT_GPOUT_2_N EXT_GPOUT_3_P EXT_GPOUT_3_N EXT_GPOUT_4_P EXT_GPOUT_4_N GPO 5-8 Definition RJ-45 pin EXT_GPOUT_5_P EXT_GPOUT_5_N R5906693 DP2K-E SERIES 19/06/2015...
  • Page 154 AES 1&2 +plus Green Orange AES 1&2 +minus White/Orange White/Green AES 3&4 +plus Blue Blue AES 5&6 +minus White/Blue White/Blue AES 5&6 +plus Orange Green AES 3&4 +minus White/Brown White/Brown AES 7&8 +plus Brown Brown AES 7&8 +minus R5906693 DP2K-E SERIES 19/06/2015...
  • Page 155 568A + 568A wiring is a straight cable. 568B + 568B wiring is a straight cable. The mapping of the channels is done according to the Ethernet wiring scheme and gives us 100 Ohm per pair. R5906693 DP2K-E SERIES 19/06/2015...
  • Page 156 18. Pin configurations R5906693 DP2K-E SERIES 19/06/2015...

  • Page 157: Environmental Information

    19. Environmental information 19. ENVIRONMENTAL INFORMATION Overview • Disposal information • RoHS compliance • Hazards • Production address • Importers contact information R5906693 DP2K-E SERIES 19/06/2015...

  • Page 158: Disposal Information

    For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee...

  • Page 159: Rohs Compliance

    According to the “China Administration on Control of Pollution Caused by Electronic Information Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 160 Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period” of Chinese Mainland.

  • Page 161: Hazards

    Potential Chronic Health Effects: Slightly hazardous in case of skin contact (sensitizer). The substance may be toxic to upper respiratory tract, skin, eyes. Repeated or prolonged exposure to the substance can produce target organ damage. More info about the product can be found on website of “unep” or the link below: http://www.chem.unep.ch/irptc/sids/oecdsids/Naco.pdf R5906693 DP2K-E SERIES 19/06/2015...

  • Page 162: Production Address

    Noordlaan 5, B-8520 Kuurne (BELGIUM) CFG Barco (Beijing) Electronics Co. Ltd. 中影巴可（北京）电子有限公司 3rd Floor, Barco Factory, No.16 Changsheng Road, Changping District, 102200, Beijing, P.R.C. 北京市昌平区中关村科技园区昌平园昌盛路16号巴可工厂第3层 邮政编码：102200 Made in information The made in country is indicated on the product ID label on the product itself.

  • Page 163: Importers Contact Information

    19. Environmental information 19.5 Importers contact information Contact To find your local importer, contact Barco directly or one of Barco’s regional offices via the contact information given on Barco’s web site, www.barco.com. R5906693 DP2K-E SERIES 19/06/2015...
