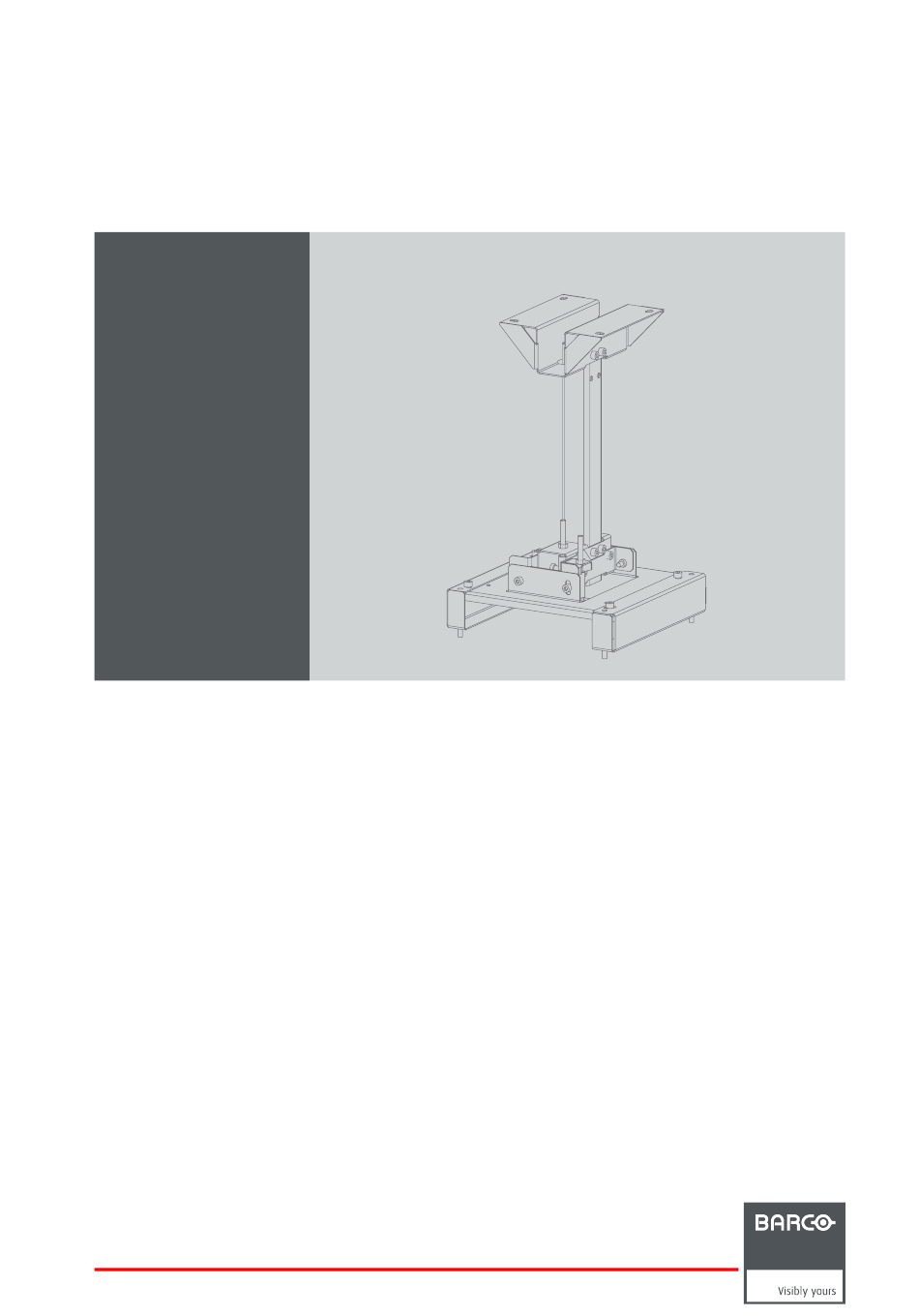

- Page 1 Ceiling mount kit Installation manual For DP2K-E series R9850004 R5906698/02 14/09/2017...
- Page 2 Barco Visual (Beijing) Electronics Co., Ltd 地址：北京市 昌平区 中关村科技园 昌平园 昌盛路 16号 Phone: +86 10 8010 1166 Fax: +86 10 8970 2793 Support: www.barco.com/en/support Visit us at the web: www.barco.com Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.36.82.11 Fax: +32 56.36.883.86...
-
Page 3: Important Safety Instructions
1. INTRODUCTION Purpose of the ceiling mount The ceiling mount is exclusively designed for the Barco DP2K-E series projector and allows the projector to be mounted to the ceiling. The ceiling mount cannot be used on any other equipment. Overview •... -
Page 4: Content Of The Kit
1. Introduction Content of the kit Content of the kit Description Quantity Installation manual Right projector bracket Left projector bracket Internal hexagon bolt (M8x20) Internal hexagon bolt (M8x65) Ceiling bracket Vertical bar Adjustment Assembly Lens safety cable kit Parts identification Parts identification Image 1-1 Parts identification... - Page 5 1. Introduction How to install the ceiling mount? 1. Turn the projector upside down and position the projector on a flat and stable surface. 2. Mount the right (1) and left (2) projector bracket on the projector. Each bracket is mounted with 2 internal hexagon bolts (M8x20) (3).
-
Page 6: Adjusting The Tilt
1. Introduction Image 1-4 6. Slide the projector over the ceiling mount. Secure the projector with right and left bracket to the ceiling mount using 4 internal hexagon bolts (M8x20). Use a 6 mm Allen wrench. Image 1-6 Image 1-5 ARNING Be aware of suspended loads. - Page 7 1. Introduction Image 1-7 3. Once the desired tilt has been achieved, tighten the adjustment screws again. How to adjust the tilt of the projector on the XY plane 1. Loosen the adjustment screws on the front and back of the adjustment assembly (reference 1). 2.
- Page 8 The lens safety cable must be used in any circumstance where the projector is mounted above people. Do this to secure the mounted lens in the lens holder. Only use the safety cable provided by Barco. This safety cable has been approved for any lens applicable for the DP2K-E series projector.
-
Page 9: Configuration Differences
Configuration differences The manual provided with the safety cable describes two different configurations for the safety cable. The configuration used with the DP2K-E series projector is Configuration B. Mounting the safety cable to the lens How to mount the cable 1. - Page 10 1. Introduction Image 1-13 Example of configuration A 5. Install a U-bolt on the lens holder, with the open ends oriented outwards (reference 3). Make sure that both a part of the loop end and the outgoing part of the safety cable are placed in the enclosure. Image 1-14 Image 1-15 Example of Configuration A...
- Page 11 1. Introduction Image 1-16 Caution: Always make sure the lens is really secured by trying to pull the lens out of the lens holder. 2. Hook the shackle lock with cable around the feet of the projector (3). For lenses with a flat barrel 1.
- Page 12 1. Introduction Image 1-18 The illustration below shows other important dimensions. 188.6 4x15 Image 1-19 Mounting holes on projector Positioning of the mounting holes for ceiling mount on the bottom side of the projector. 4 x M8 232.5 278.5 Image 1-20 R5906698 CEILING MOUNT KIT 14/09/2017...
- Page 13 1. Introduction 1.10 Customized vertical bar Disclaimer When using a customized vertical bar produced by any third party shall occur under your own responsibility and shall not lead to any liability of Barco. Dimensions and material 8,5(4X) Customized length Image 1-21...
