Troubleshooting
Check the LED displays on the Sun StorEdge S1 array periodically to make sure that
the array and disk drives are running properly.
Checking Front Panel LEDs
The front panel LEDs indicate system power, system faults, drive activity, and SCSI
ID assignments.
and
show the location of the front panel LEDs
FIGURE 5-1
FIGURE 5-2
and
shows their meanings and gives corrective actions. A quick reference
TABLE 5-1
card attached to the system also explains what the SCSI ID LEDs mean.
System Power LED System Summary Fault LED
Drive Activity LEDs
microsystems
Front Panel LEDs With Bezel

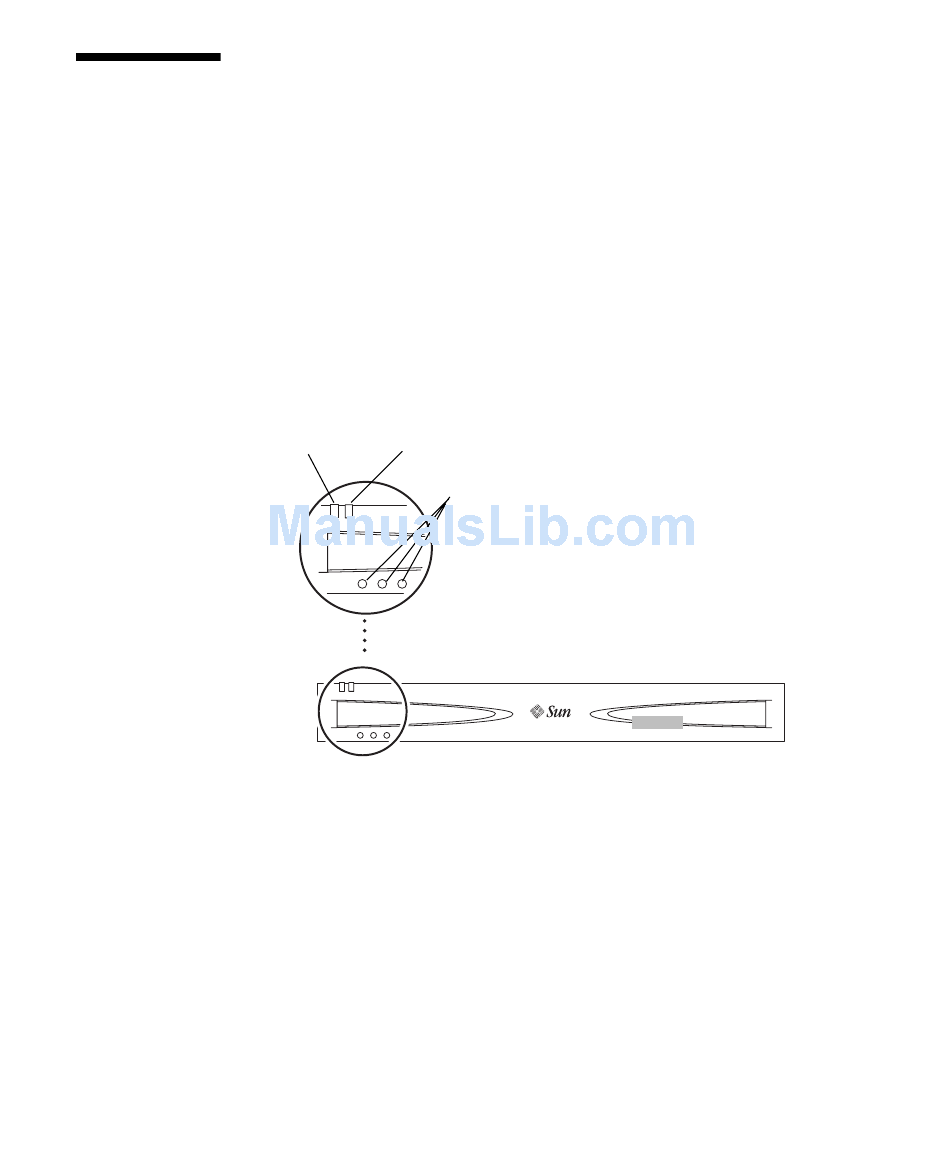

FIGURE 5-1
Chapter 5 Maintenance Tasks
83
