b. For side-mounting, insert two screws through each bracket into the tapped
holes towards the back of the array (
).

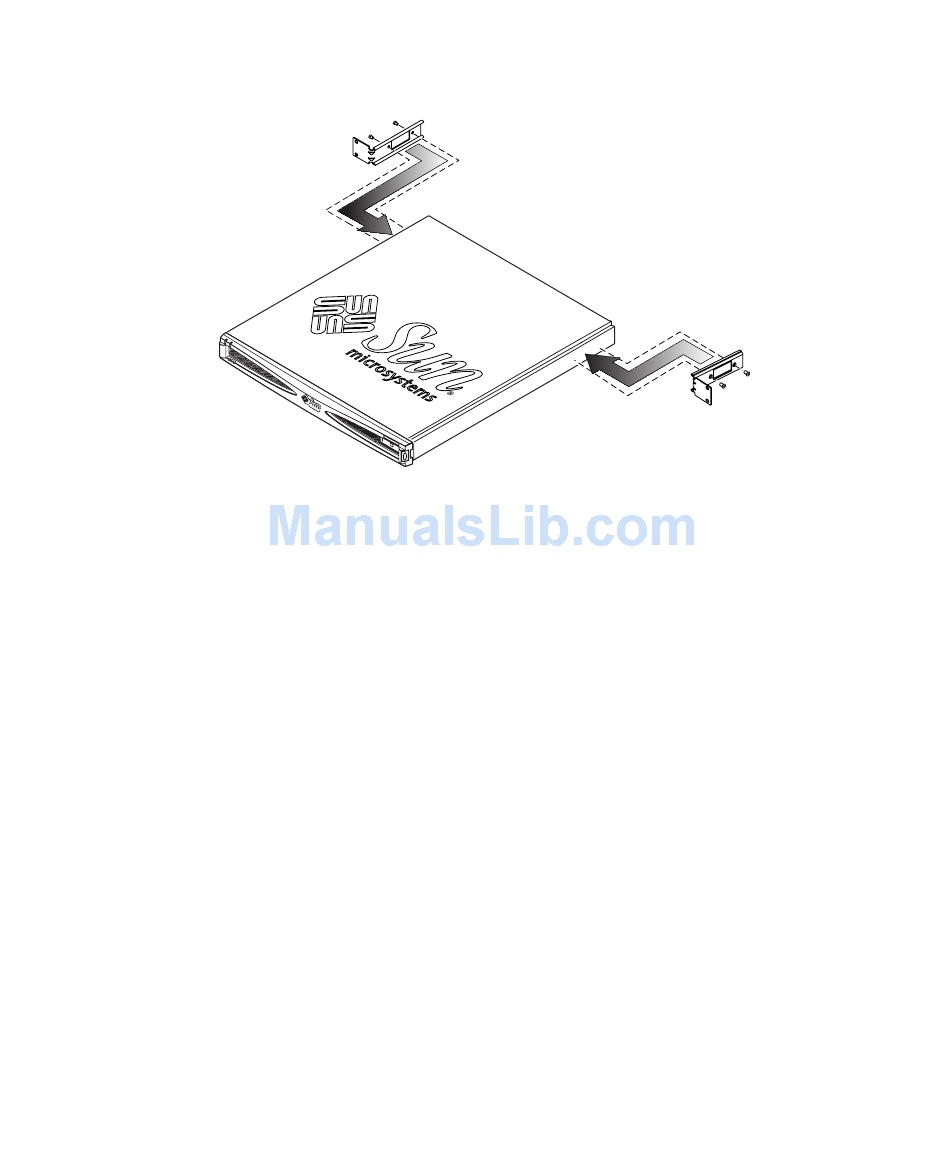

FIGURE 3-13
Attaching Brackets Towards the Back of an Array (for Two-Post Rack Install)
FIGURE 3-13
2. Position the array in the rack, insert, and tighten the screws.
Chapter 3 Installing the Sun StorEdge S1 Array
49
