4 WAGO DC strain relief housings (2 strain relief housings for power cables and 2
I
spares)
See
wiring that extends from the back of the DC connector after the wires are
installed. Installation is described in "To Connect the Strain Relief Housing With
the DC Connector" on page 32.
FIGURE 2-2
1 cage clamp lever
I
See
inserting the wiring into the DC connector.
FIGURE 2-3
4 tie wraps
I
The tie wraps are used to bind the wires.
Note – You can order another set of DC connection materials through Sun (part
number X949A).
26 Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003

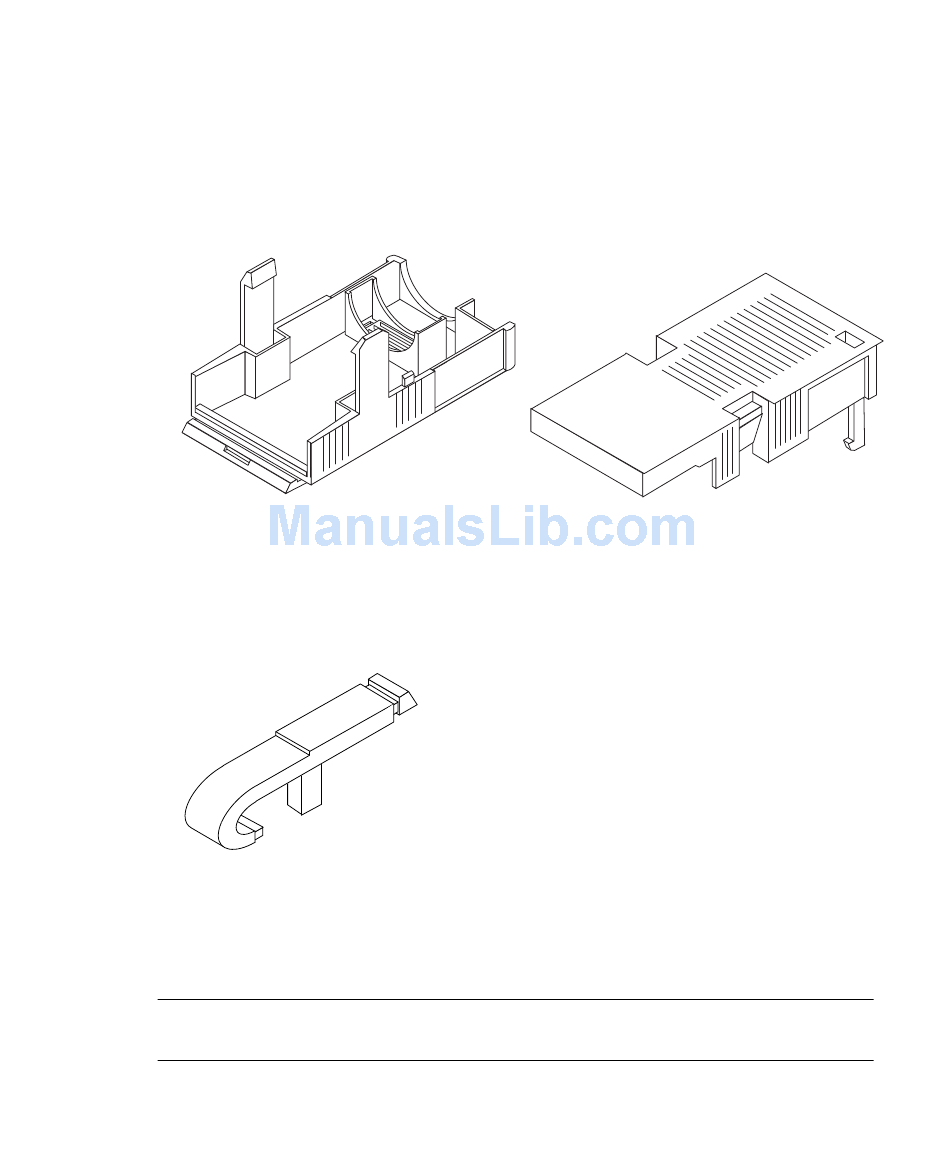

. This housing is connected to the DC connector and protects the
FIGURE 2-2
Bottom
Strain Relief Housing
. The cage clamp lever is used to open the cage clamps before
FIGURE 2-3
Cage Clamp Lever
Top
