To Remove the Nameplate From the Bezel
M
You can place a label onto the front of the nameplate. This nameplate is removable
so you can easily transfer a label onto another system, by following the instructions
below:
1. Press the left end of the nameplate towards the right (
Pressing the left of the nameplate towards the right releases the retaining lug on the
left of the bezel and causes the nameplate to swing out from the bezel.
Nameplate

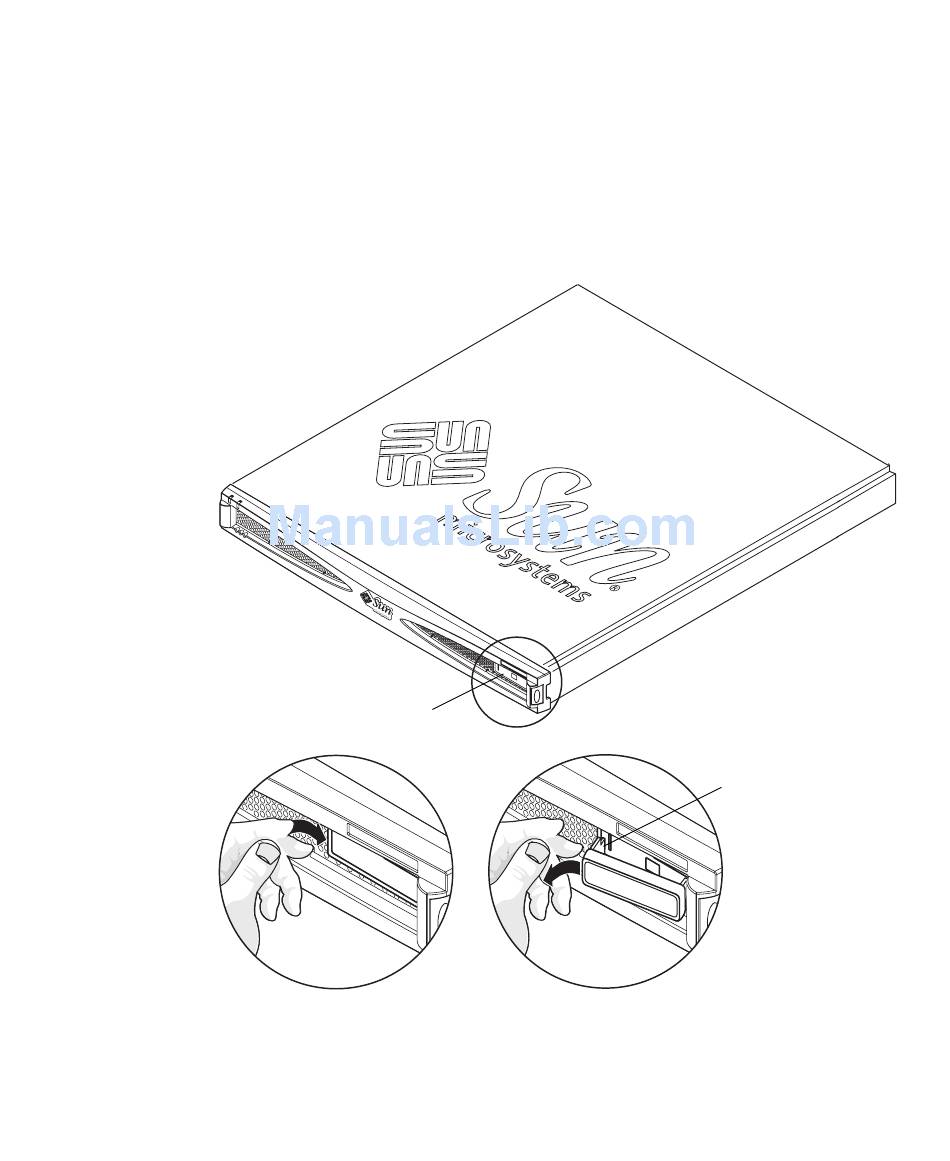

Releasing the Left Retaining Lug to Release the Nameplate's Left Side
FIGURE 1-5
2. Pull the retaining lug on the right away from the bezel so that the nameplate
comes free of the bezel (see ).
FIGURE 1-6
Chapter 1 Sun StorEdge S1 Array Overview
).
FIGURE 1-5
Left retaining lug
9
