FIGURE 2-8
7. Feed the exposed section of each of the wires in turn into the appropriate hole in
the DC connector.
FIGURE 2-9
Top of connector
1
FIGURE 2-9
8. Repeat Step 3 through Step 7 to create a second DC input power cable.
You connect the first DC input power cable to DC power source A and the second
DC input power cable to DC power source B as described in "Connecting and
Disconnecting Power Cables" on page 62.
Back

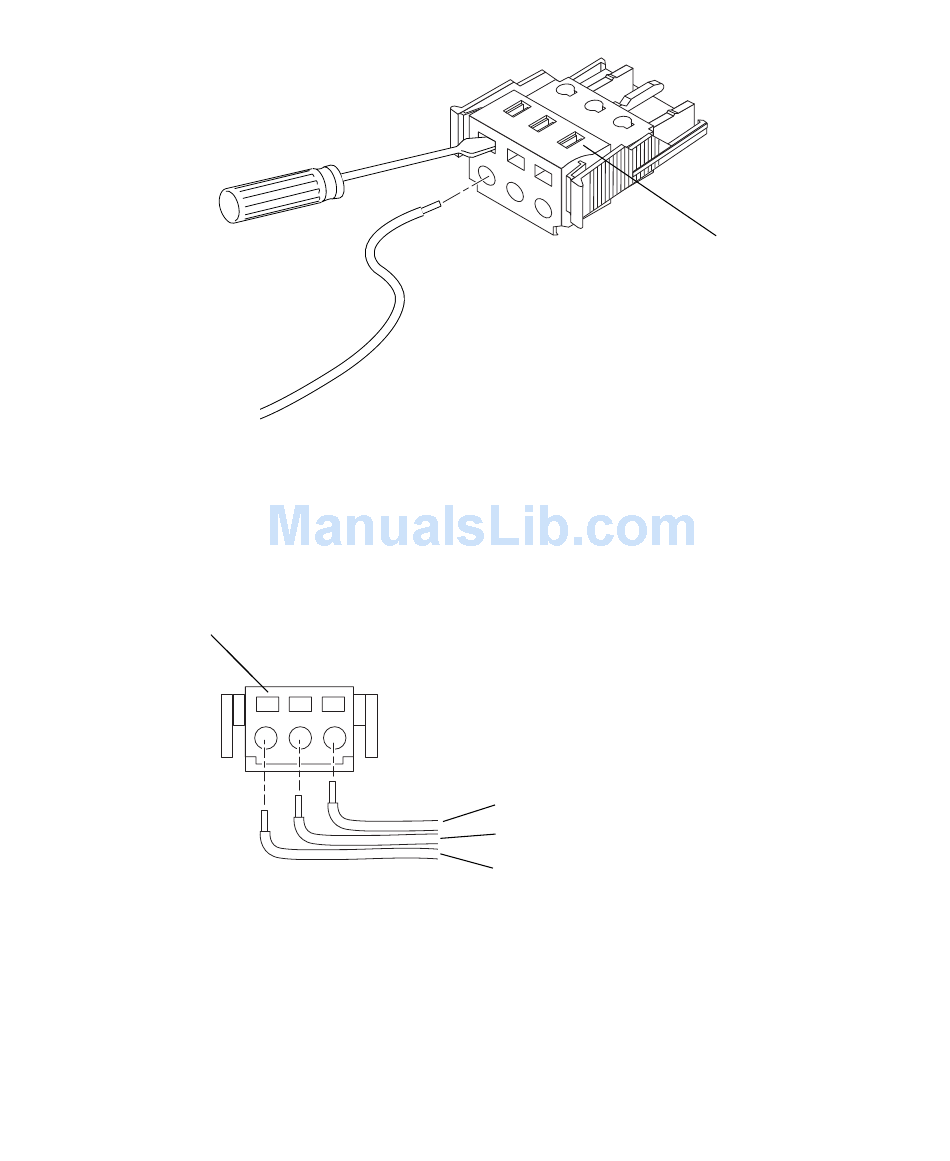

Opening the DC Connector Cage Clamp Using a Screwdriver
shows which colored wire is inserted into each hole in the DC connector.
2 3
Back
Inserting Wires by Color Into the DC Connector
Chapter 2 Preparing for Installation and Assembling the Cables
Front
Blue (from -48V return source)
Green and yellow (from ground source)
White (from -48V source)
Top of connector
31
