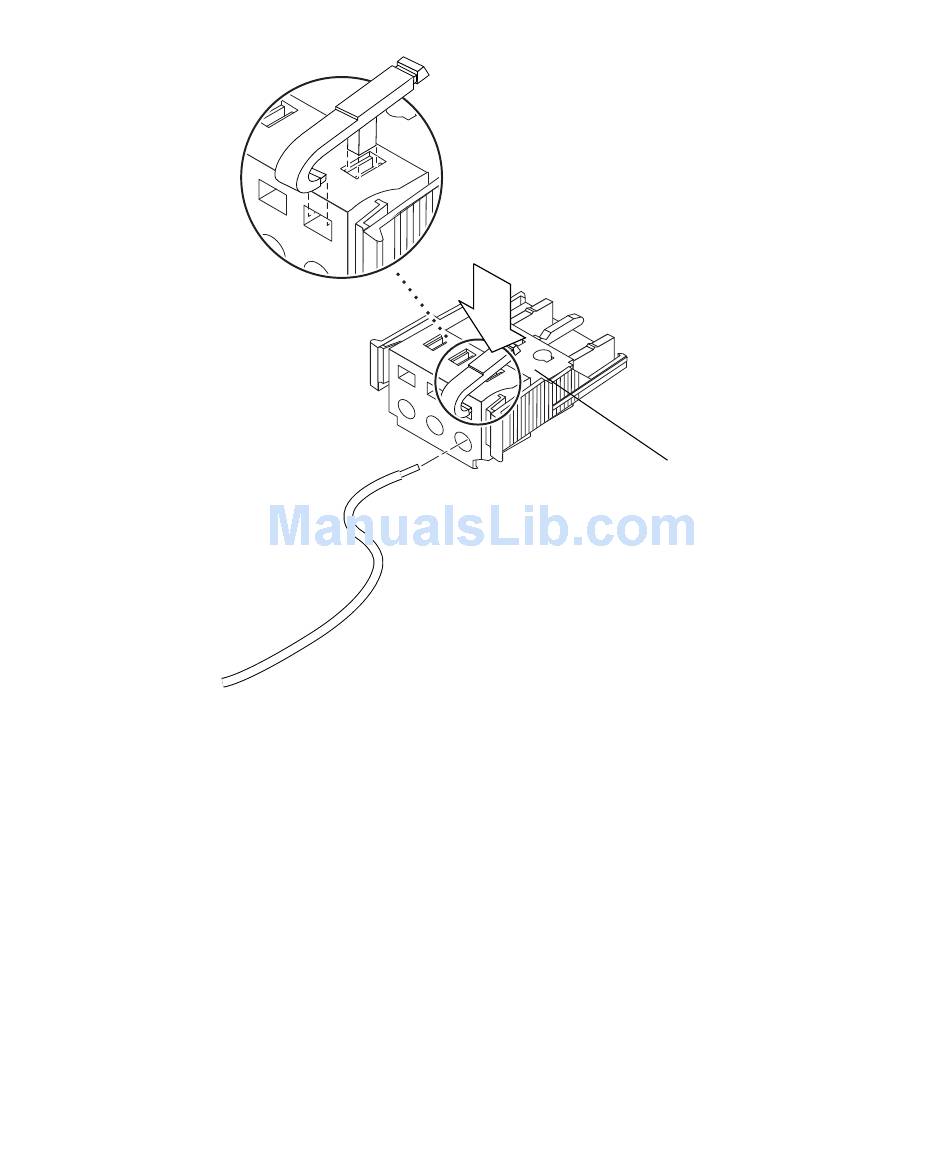

FIGURE 2-7
b. Press down on the cage clamp lever.
The cage clamp opens for this section of the DC connector.
6. Alternately, open the DC connector cage clamp using a small flat-blade
screwdriver (
The following illustration shows where to insert the lever to prepare to insert the
white "Return" wire into the connector. (See
into which holes, if needed.)
a. Insert a small flat-blade screwdriver into the rectangular hole directly above the
hole in the DC connector where you want to insert the first wire.
b. Press down on the screwdriver (
30 Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003
Back
Opening the DC Connector Cage Clamp Using the Cage Clamp Lever
).
FIGURE 2-8
Front
, which shows which wires go
FIGURE 2-9
).
FIGURE 2-8
Top of connector
