To Disconnect the DC Power Cable from the DC
M
Connector
G
Squeeze the two tabs on the sides of the DC input power cable and gently
disconnect the DC input power cable from the DC power supply (

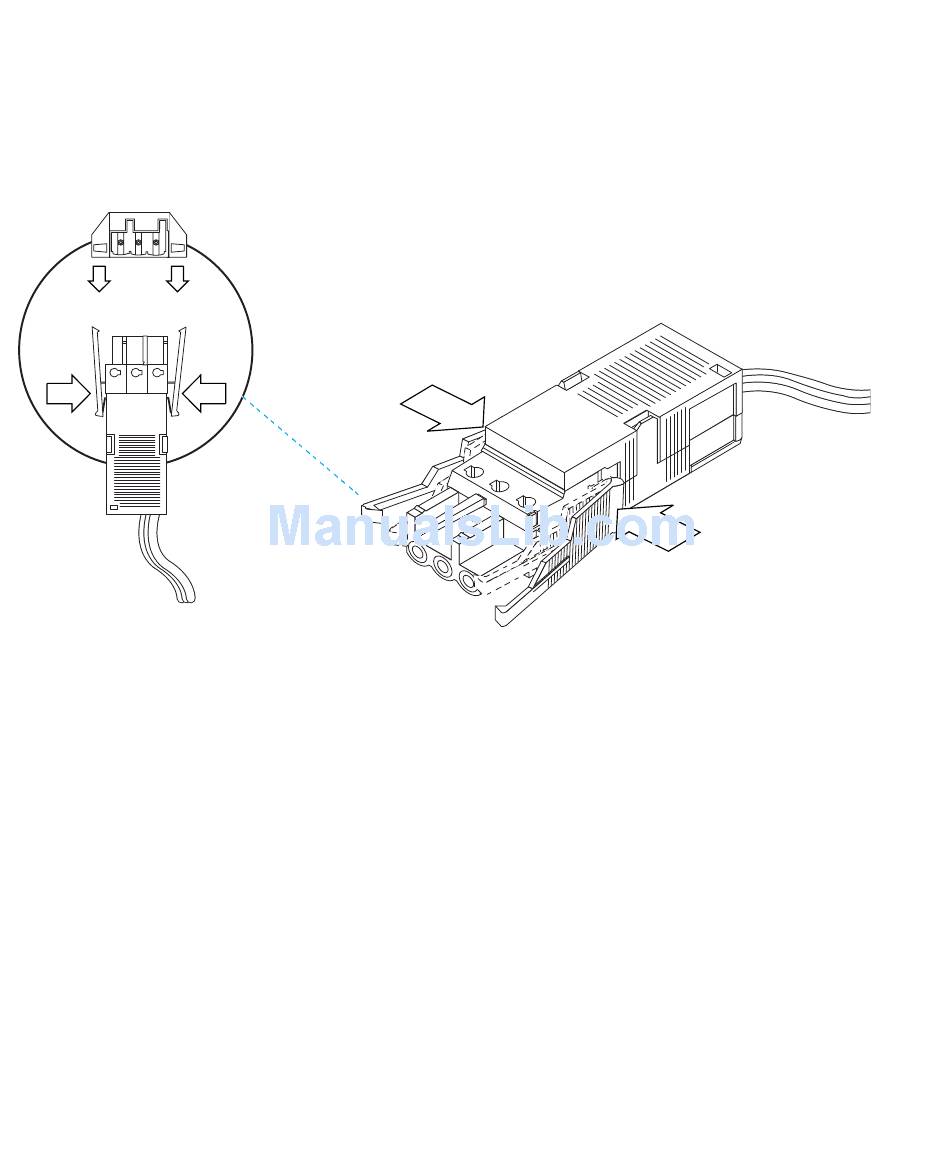

Disconnecting the DC Input Power Cable From the DC Connector
FIGURE 3-27
Isolating the Chassis Ground Connection (DC
Version Only)
Every array is shipped from the factory with the chassis ground connected to the
common output return through two screws on the power supply at the back of the
array.
M
To Isolate the Chassis Ground Connection
1. Go to the back of the array and locate the two screws used to isolate the chassis
ground connection.
66 Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003
).
FIGURE 3-27
