Cooling System; Figure 1-13 Dc Power Connectors On The Back Of A Dc Array; Figure 1-14 Airflow Requirements (Front And Back) - Sun Microsystems StorEdge S1 Array Installation And Maintenance Manual

The following figure shows the two DC power connectors
version of the Sun StorEdge S1 array.

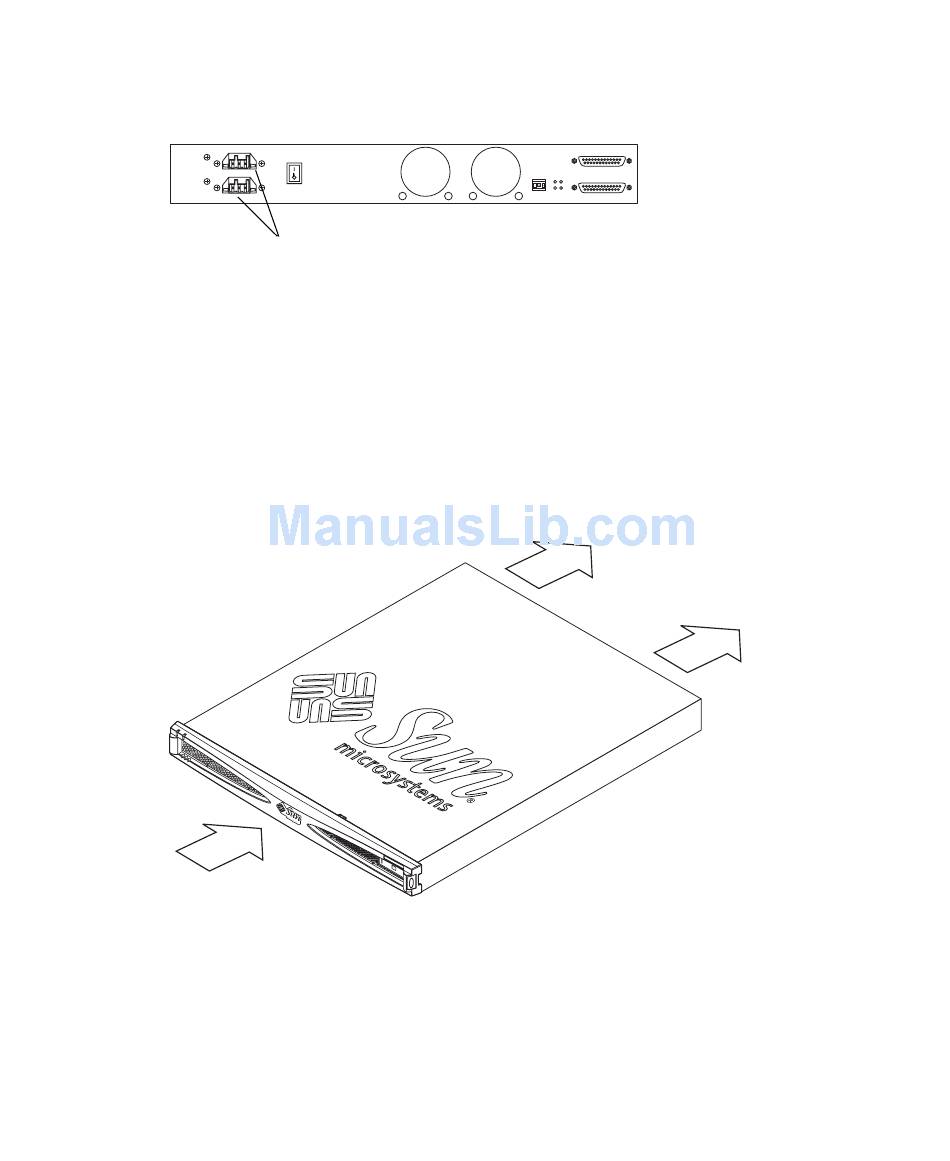

FIGURE 1-13

Cooling System

The cooling system ensures adequate airflow through the system. The internal fans
can achieve a maximum airflow of approximately 20 cfm in free air.
As illustrated in the following figure, the air is drawn through the front of the array
and expelled from the back of the array.
FIGURE 1-14
Airflow requirements differ for an open-rack system and a closed-rack system.
FIGURE 1-15
back of an open-rack system.
16 Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003
DC power connectors
DC Power Connectors on the Back of a DC Array
Airflow Requirements (Front and Back)
shows the air flowing from the back of the array straight out the open
a DC
on the back of
