Example: LVD SCSI Configuration
FIGURE 3-18
S1 arrays connected to its on-board LVD SCSI port. This configuration has fewer
limitations than the single-ended configuration in "Example: Single-Ended SCSI
Configuration" on page 52:
The maximum number of Sun StorEdge S1 arrays that can be used for this
I
configuration is four, because the system supports LVD SCSI (which supports a
longer maximum cable length) and no other peripherals are chained to this bus.
SCSI ID 7 is used by the LVD SCSI controller.
I
SCSI ID
assignment
0, 1, 2
3, 4, 5
8, 9, A
B, C, D
FIGURE 3-18
54
Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003
and
show an example of a host system with four Sun StorEdge
TABLE 3-3
Sun StorEdge S1 array
Sun StorEdge S1 array
Sun StorEdge S1 array
Sun StorEdge S1 array

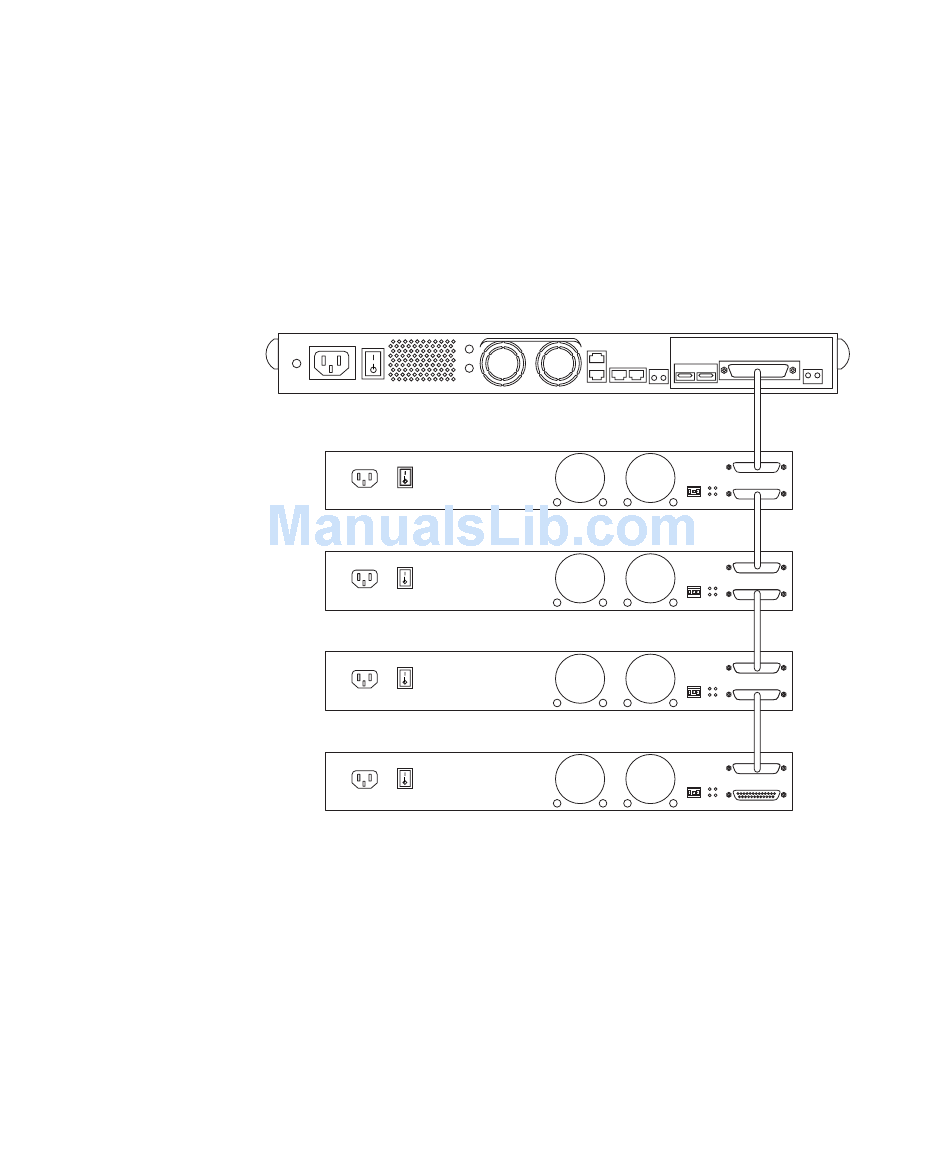

Four Sun StorEdge S1 Arrays on a Host System With LVD SCSI (Example)
