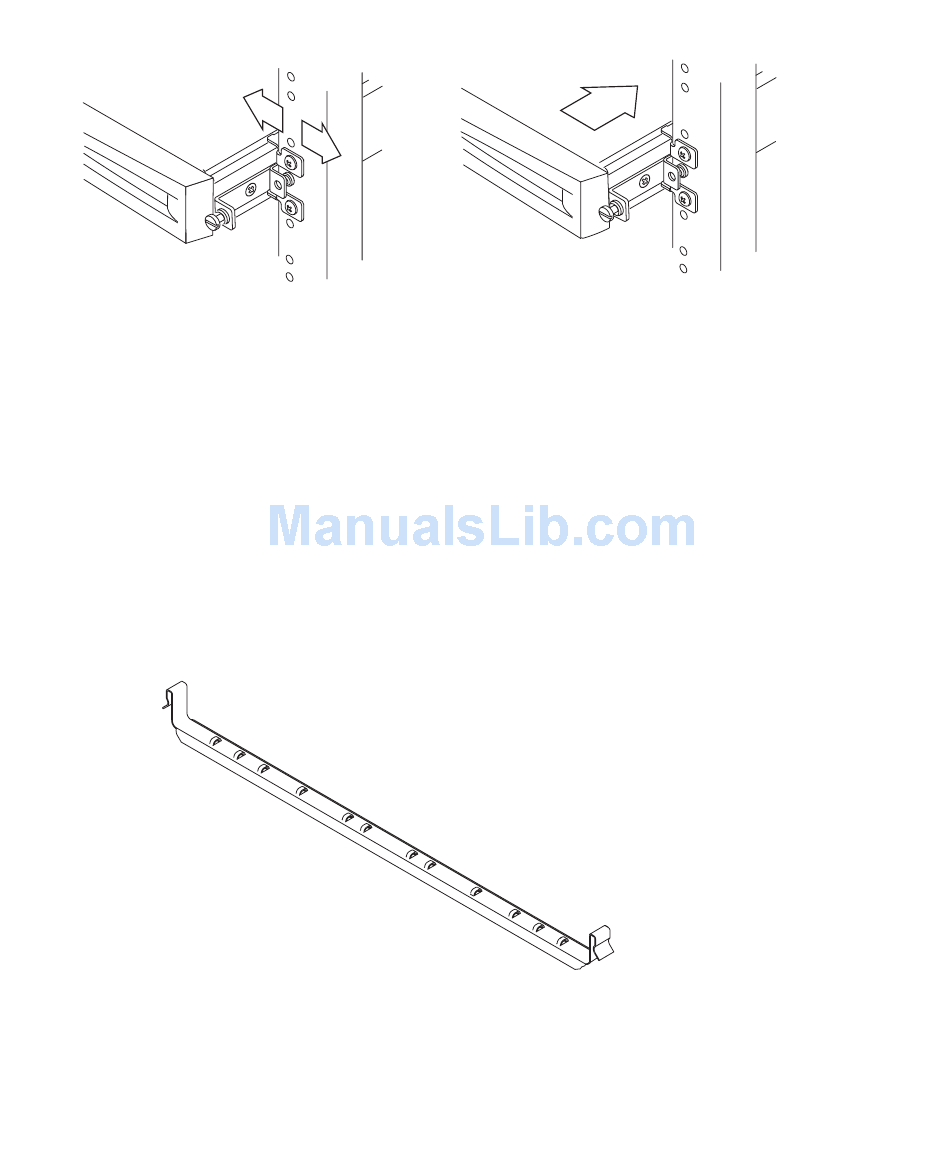

Adjusting the Mount and Tightening the Thumbscrew
FIGURE 3-9
14. Slide the stud from the stud plate as far as it can go into the open slot on the side
bracket that is attached to the back of the array (
15. Attach a kep nut from the accessory kit to each stud over its retaining ring, and
tighten the kep nut with a 9/32 inch or equivalent nut driver.
16. Tighten the screws that hold the brackets in the rack if you have not fully secured
them yet.
17. Use a straight-edge screwdriver to tighten the thumbscrews at the front to secure
the array in the rack.
18. Hook the cable management bracket (
behind the array.
FIGURE 3-10
As shown in
and hook one end onto the right mounting bracket so that the cable management
bracket is parallel to the array's back.
46 Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003
Cable Management Bracket
FIGURE 3-11FIGURE 3-11
FIGURE 3-8
) over the mounting brackets
FIGURE 3-10
, hook one end onto the left mounting bracket
).
