Components at the Back of the Array

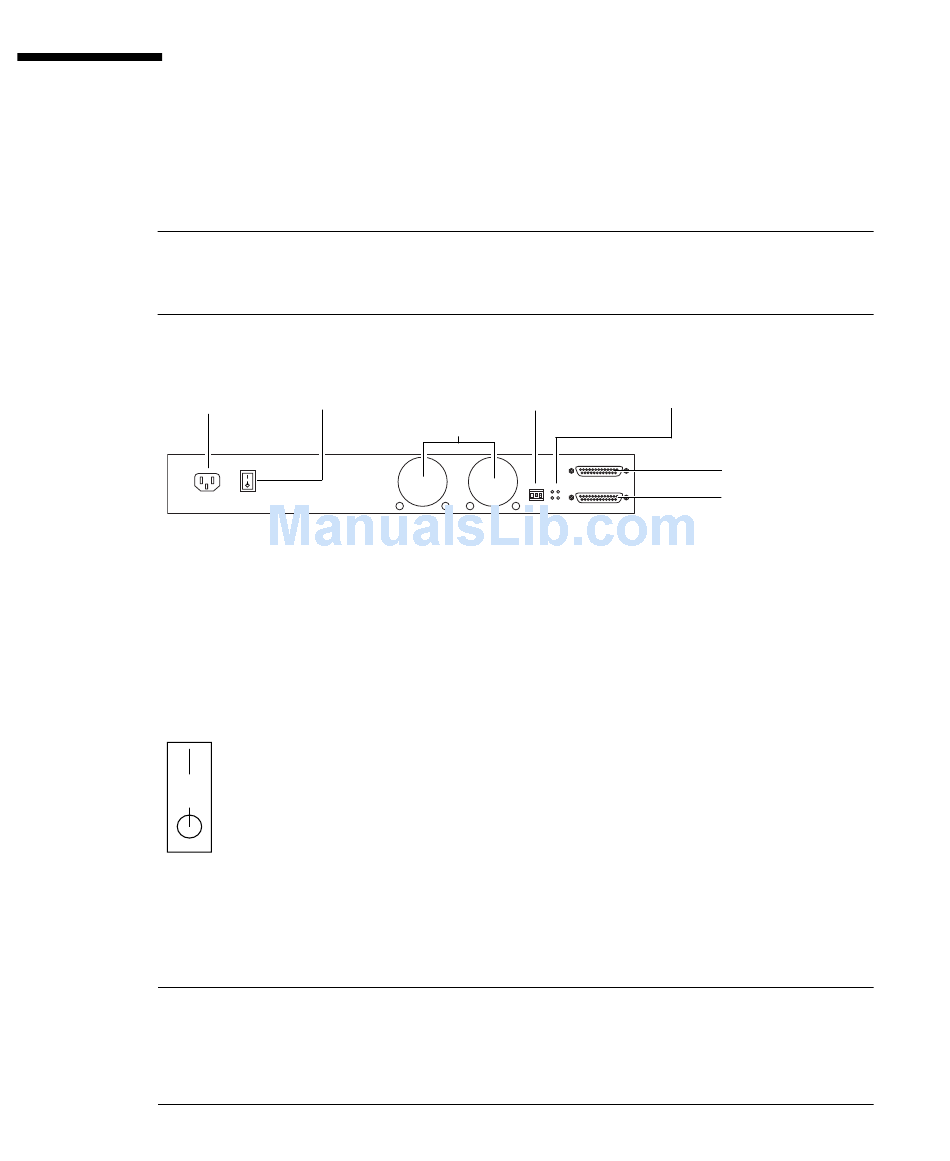

The following figure shows the components at the back of an AC version of the Sun
StorEdge S1 array.
Note – The AC and DC versions have the same power switch, fans, SCSI ID switch,
System and Autotermination LEDs, and SCSI IN and OUT ports. See
the back of a DC version.
Power connector Power switch
FIGURE 1-8

Power Switch

The array has one rocker power switch to control the power supply, which is
illustrated in the following figure.
FIGURE 1-9
The following table describes each of the rocker switch's settings.
On
Neutral
Standby
12 Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003
Sun StorEdge S1 Array, Back View
On
Neutral
Standby
Power Switch
The power supply provides full power to the array.
When the switch is released from the On position, the switch returns
to the Neutral position, and the power supply remains on.
The power supply provides standby power to the array.
SCSI ID switch
Fans
FIGURE 1-13
System and
Autotermination LEDs
SCSI-3 IN port
SCSI-3 OUT port
