Chassis ground
connection screws
Locating the Chassis Ground Connection Screws

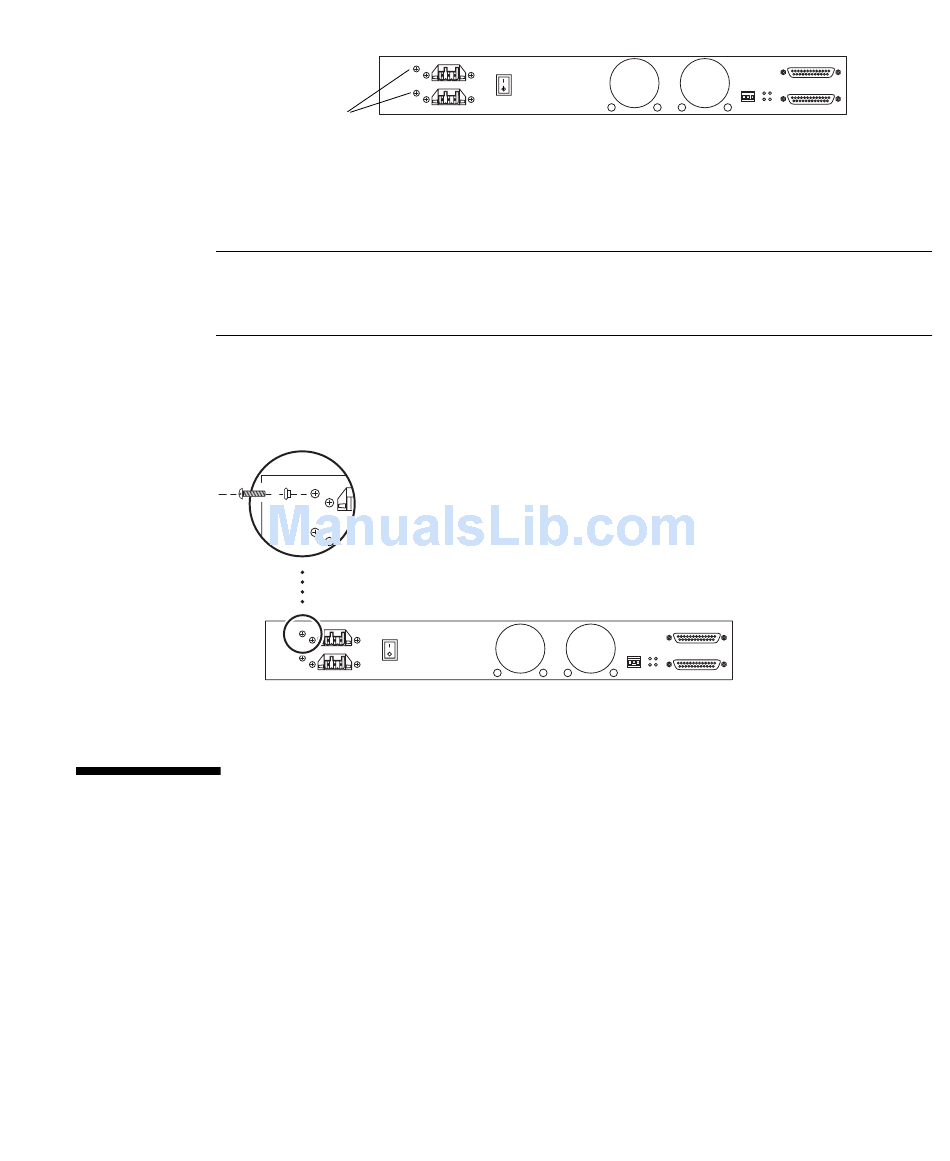

FIGURE 3-28
2. Unscrew the two chassis ground connection screws.
Note – Do not remove the two screws that hold the left side of the DC connectors in
place. Remove the two screws further to the left of the DC connectors, which are
raised slightly from the chassis.
3. Locate the two chassis ground isolation bushings in the ship kit.
4. Insert the two bushings and screws into the screw holes and tighten the screws.
Securing the Chassis Ground Connection Screw
FIGURE 3-29
Powering On the Array
After all of the SCSI cables and power cables are attached to the Sun StorEdge S1
array, power on the array as described in the following procedure.
To Power On the Array
M
1. Before turning the array's power on, check the binary SCSI LED display with the
power in standby mode.
Chapter 3 Installing the Sun StorEdge S1 Array
67
