Table 3-4 Scsi Id Assignments For One Sun Storedge S1 Array And One Single-Ended Storage Array On A Host System With Lvd Scsi - Sun Microsystems StorEdge S1 Array Installation And Maintenance Manual

SCSI ID
assignment
2, 3, 4
8, 9, A
FIGURE 3-19
TABLE 3-4
SCSI ID
Addresses Possible Use for ID Number
SCSI ID 0
SCSI ID 1
SCSI ID 2 Drive 1 of
array
SCSI ID 3 Drive 2 of
array
SCSI ID 4 Drive 3 of
array
SCSI ID 5
SCSI ID 6
SCSI ID 7 SCSI controller ID
56 Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003
One Sun StorEdge S1 Array and One
System With LVD SCSI (Example)

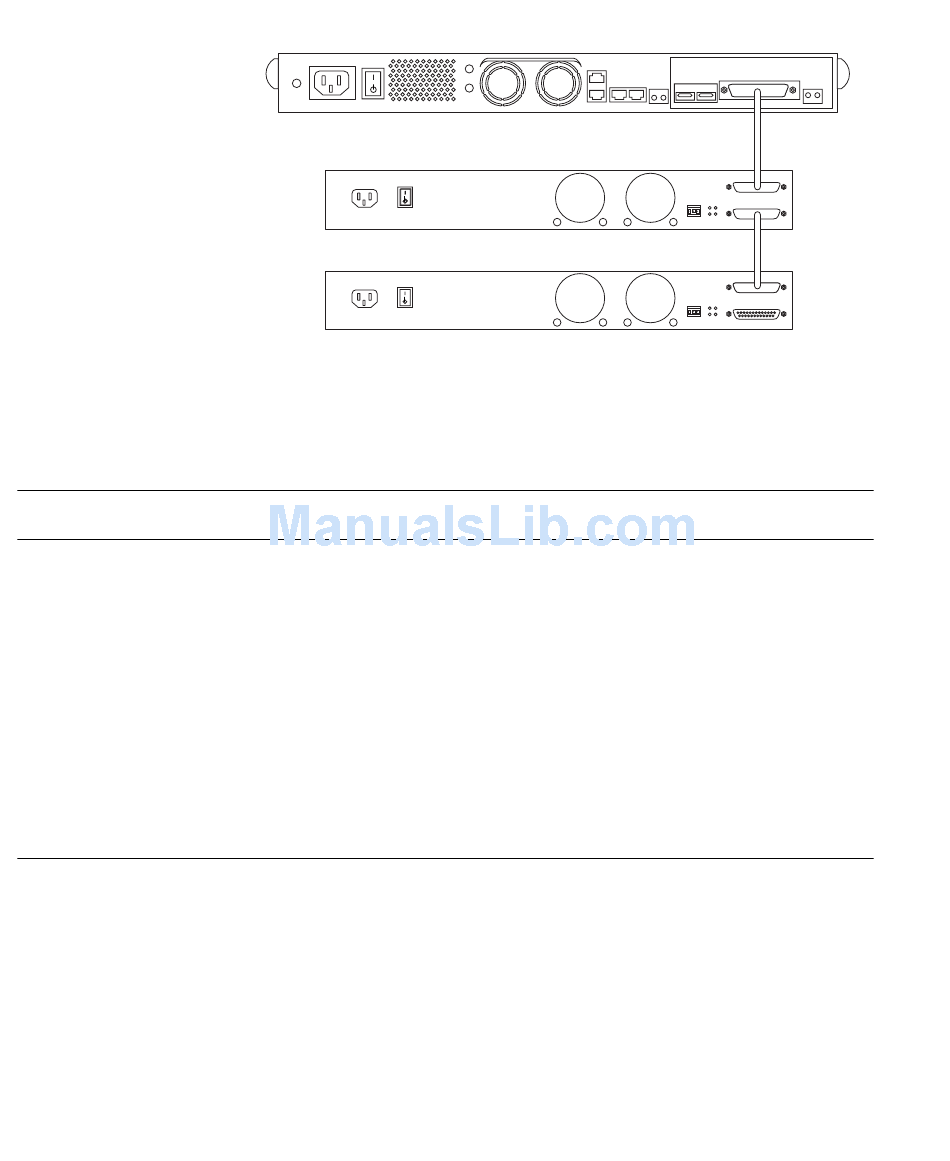

SCSI ID Assignments for One Sun StorEdge S1 Array and One Single-ended
Storage Array on a Host System With LVD SCSI
Netra st D130 storage
Netra st D130 storage
Netra st D130 storage
Netra st D130 Storage Array
Sun StorEdge S1 Array
Netra st D130 Storage
SCSI ID
Addresses Possible Use for ID Number
SCSI ID 8 Drive 1 of
SCSI ID 9 Drive 2 of
SCSI ID A Drive 3 of
SCSI ID B
SCSI ID C
SCSI ID D
SCSI ID E
SCSI ID F
Array on a Host
Sun StorEdge S1 array
Sun StorEdge S1 array
Sun StorEdge S1 array
