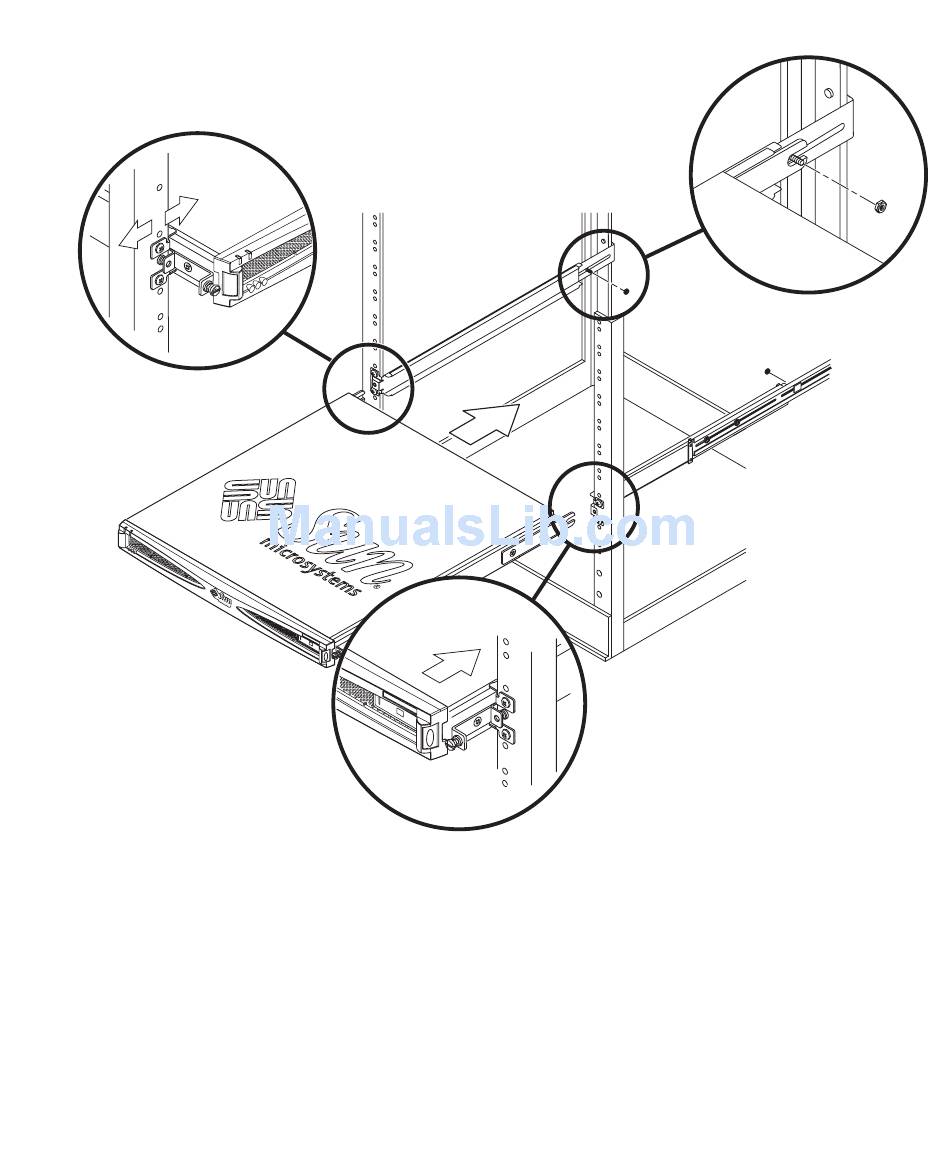

Sliding the Sun StorEdge S1 Array and Attaching It Into a Rack
FIGURE 3-8
13. Secure the captive screws on the front of the array into the front ear of each
bracket on the front posts (
a. If necessary, readjust the bracket ears on the front post to align the system
properly.
b. Insert the captive screws on the front edges of the array into the center hole on
the front ear of each bracket, and tighten the thumbscrews finger-tight.
).
FIGURE 3-9
Chapter 3 Installing the Sun StorEdge S1 Array
45
