Sun StorEdge S1 Array Overview
The Sun StorEdge S1 array is a Low Voltage Differential (LVD) Ultra3 SCSI unit that
is 1 RU (1.73 inches) in height. The thinness of the unit enables you to stack many
units in a single rack. The array has a single power supply (available in AC or DC
versions) and up to three hot-swappable, LVD SCSI disk drives. Because the array
supports LVD SCSI, you can connect up to four arrays to one LVD SCSI bus.
Note – The Sun StorEdge S1 array also supports single-ended drives. If single-
ended drives are used, those drives default to single-ended speeds. The entire array
defaults to single-ended mode if connected to a single-ended SCSI bus or to a single-
ended host bus adapter.

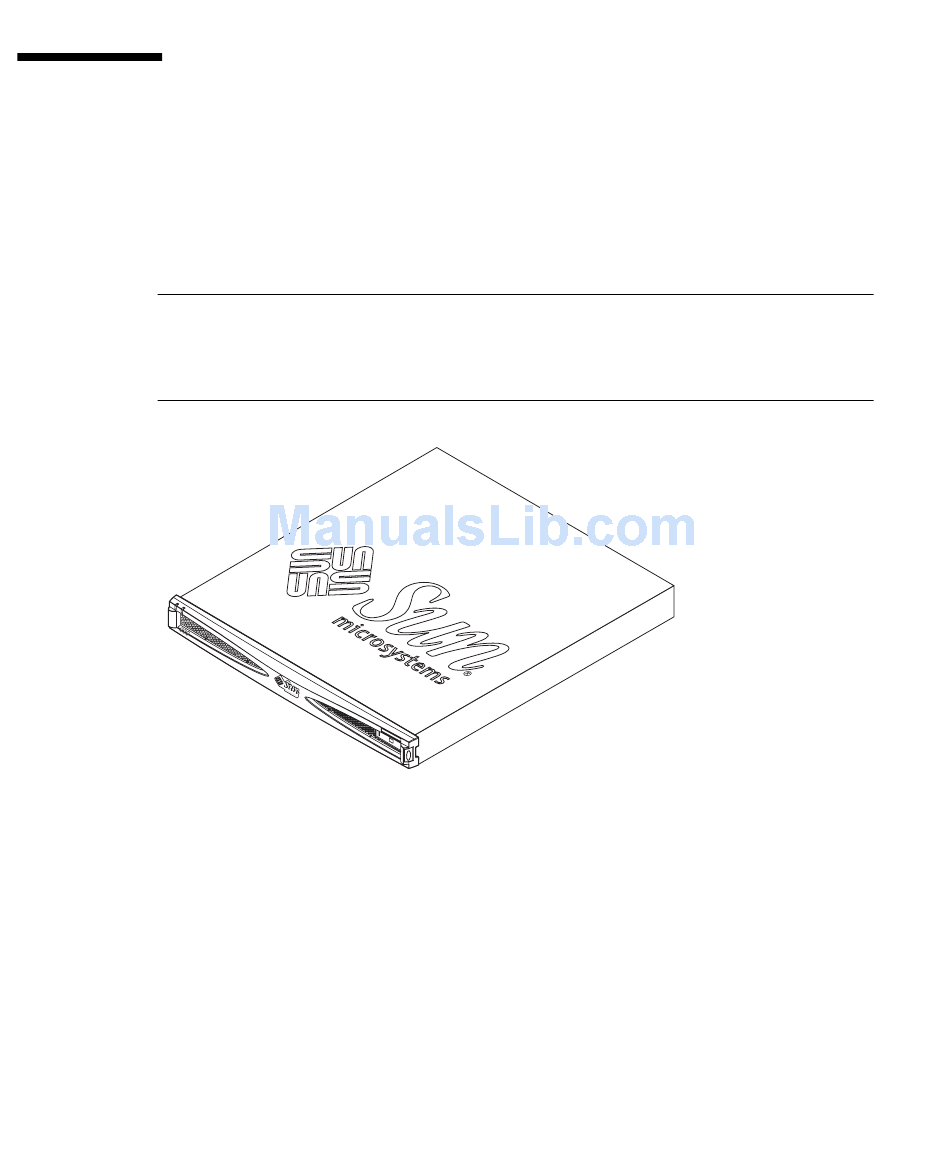

FIGURE 1-1
The array accepts up to three 1-inch high drives. For more information on the Sun
StorEdge S1 array disk drives, see the following:
"Disk Drives" on page 18
I
"Adding, Removing, and Replacing Drives" on page 73
I
2
Sun StorEdge S1 Array Installation and Maintenance Manual • April 2003
