Unpacking - NEC Super Script 4400 Maintenance Manual

U
NPACKING
Follow these steps to safely unpack the printer.
1. Open the top cover of the packing box and remove the QuickStart poster.
2. Remove the Accessory kit and Starter kit from the top of the printer.
3. Turn the large plastic box screws at the bottom of the box to the left (A) and pull out to remove (B).
4. Using your thumb and finger, remove the plastic screw sleeves from the box (C).
5. Lift off the outer box (D).
6. Open the plastic bag that contains the printer and slide it down.
7. With one person on each side of the printer, grasp the printer at the hand grips where they are exposed by
notches in the foam padding (E).
8. Lift the printer and place it on a sturdy, level surface.

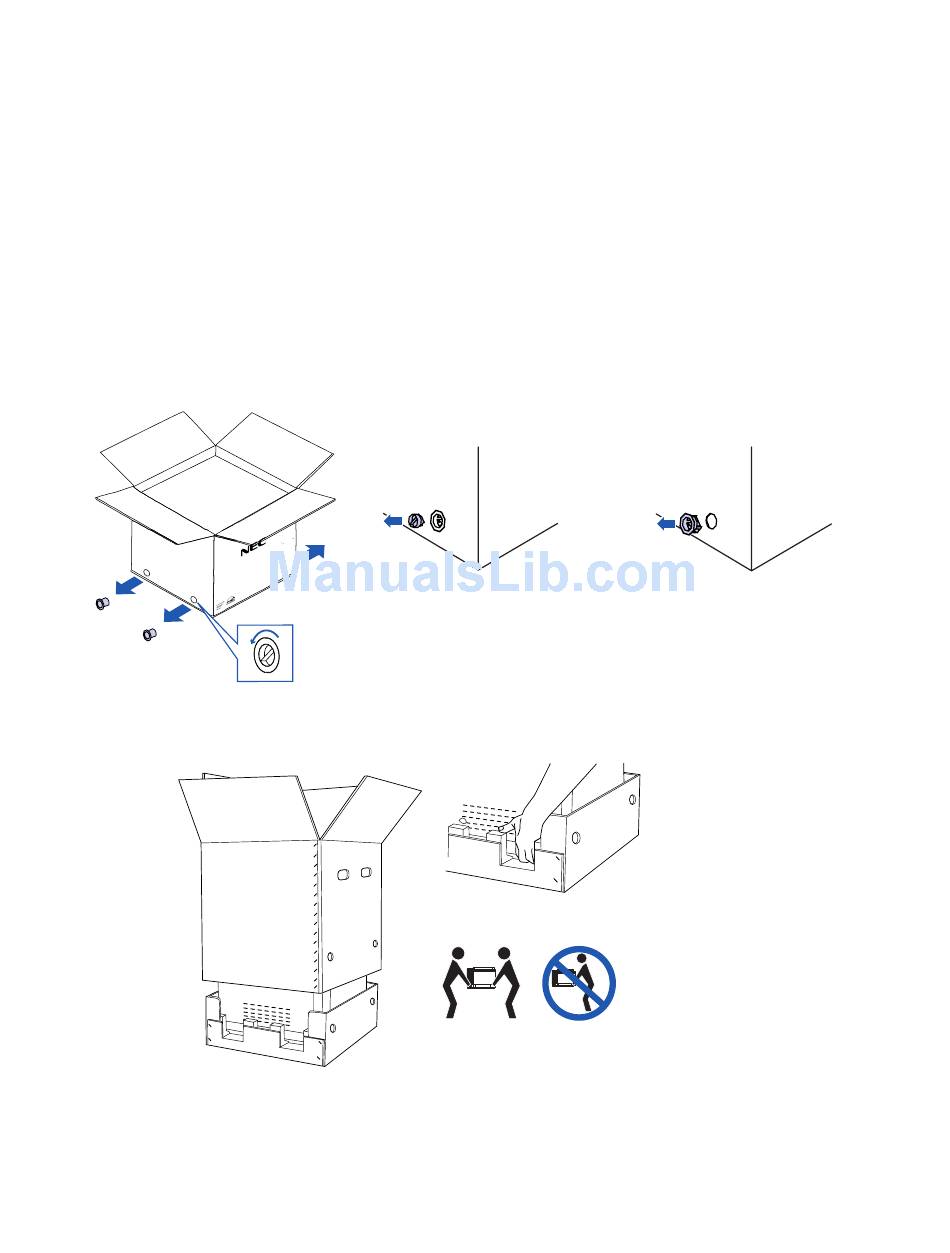

Unpacking the Printer Box
A
D
6 SuperScript 4400 — Maintenance Guide
B
note:
Save the box, box screws,
and packing material. If you ship
the printer in the future, be sure to
follow the special packing
instructions in Appendix D to
safeguard internal components.
E
Caution!
The printer and packaging
weigh approximately 100lbs. To set up the
printer and move it requires two adults.
C
