7 .1.10 Base Cover (L)
Tools
Phillips Screwdriver #2
Disassembly Procedures
1. Remove the side cover (L). (See the item 7.1.2)
2. Remove the set screw TS4 8 (2 pcs.) of base cover (L).
3. Remove the base cover (L) from the base.
Assembly Procedures
1. Prepare a new base cover (L).
2. Assemble the base cover (L) according to the reverse order of disassembling.
Caution!
When assembling the base cover, insert the leading edge of base cover (L) into the hook
provided at the bottom (left and right) of the base plate.
Have the projecting part of base cover (L) meet the hole of base plate
bottom.

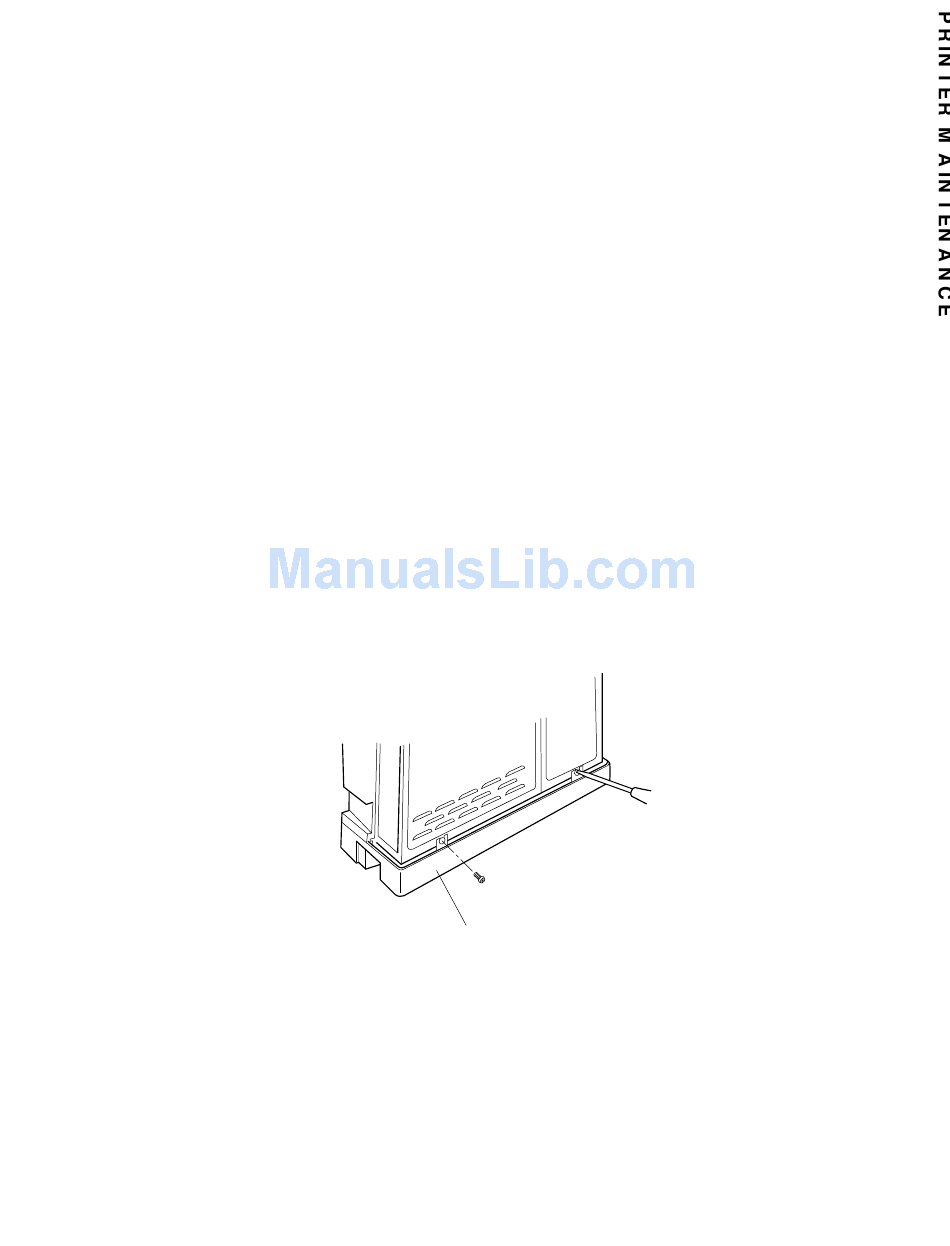

Base Cover (L)
