7 .1.6 Rear Cover (L) (Transfer Unit Cover)
Tools
Phillips Screwdriver #1, #2
Disassembly Procedures
1.
Open the transfer unit.
2.
Remove the screw ST3 6 (1 pc.) from the stop holding the transfer unit to the frame.
3.
Remove the transfer unit.
4.
Remove the set screw BT3 10 (4 pcs.) of rear cover.
5.
Remove the rear cover (L) from the transfer unit.
Assembly Procedures
1.
Prepare a new rear cover (L).
2.
Install the rear cover to the transfer unit.
3.
Assemble according to the reverse order of disassembling.

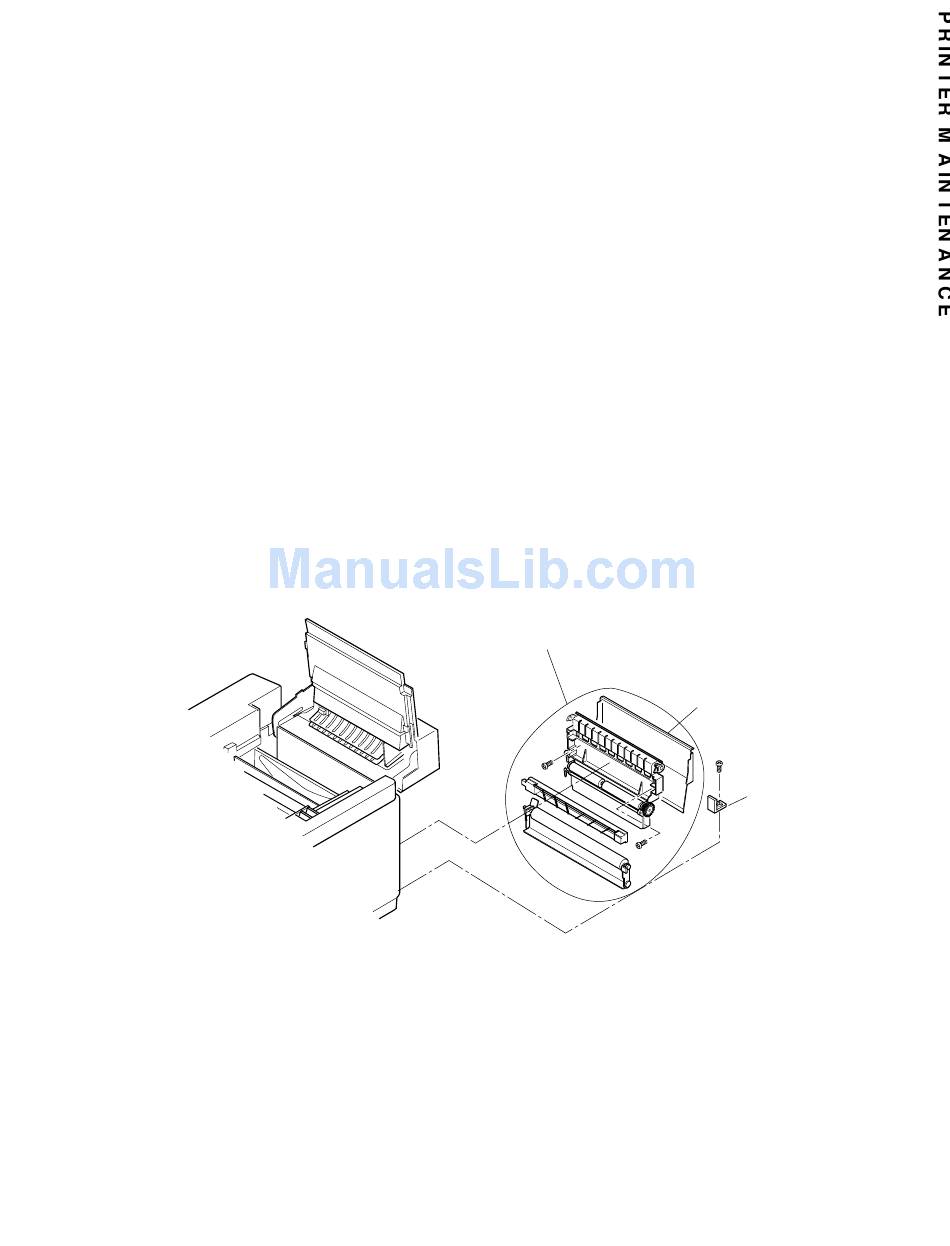

Transfer Unit
Replacement Procedures for Maintenance Parts
Rear Cover (L)
Metal Stop
