7 .1.7 Rear Cover (U)
Tools
Phillips Screwdriver #2
Disassembly Procedures
1.
Open the Transfer Unit.
2.
Unplug the power supply cable from the inlet.
3.
Remove the Rear cover. (See the item 7.1.8)
4.
Remove the set screw BT4 6 (1 pc.) of rear cover (U).
5.
Remove the rear cover (U).
Assembly Procedures
1.
Assemble the rear cover (U) according to the reverse sequence of disassembling.
126
SuperScript 4400 — Maintenance Guide

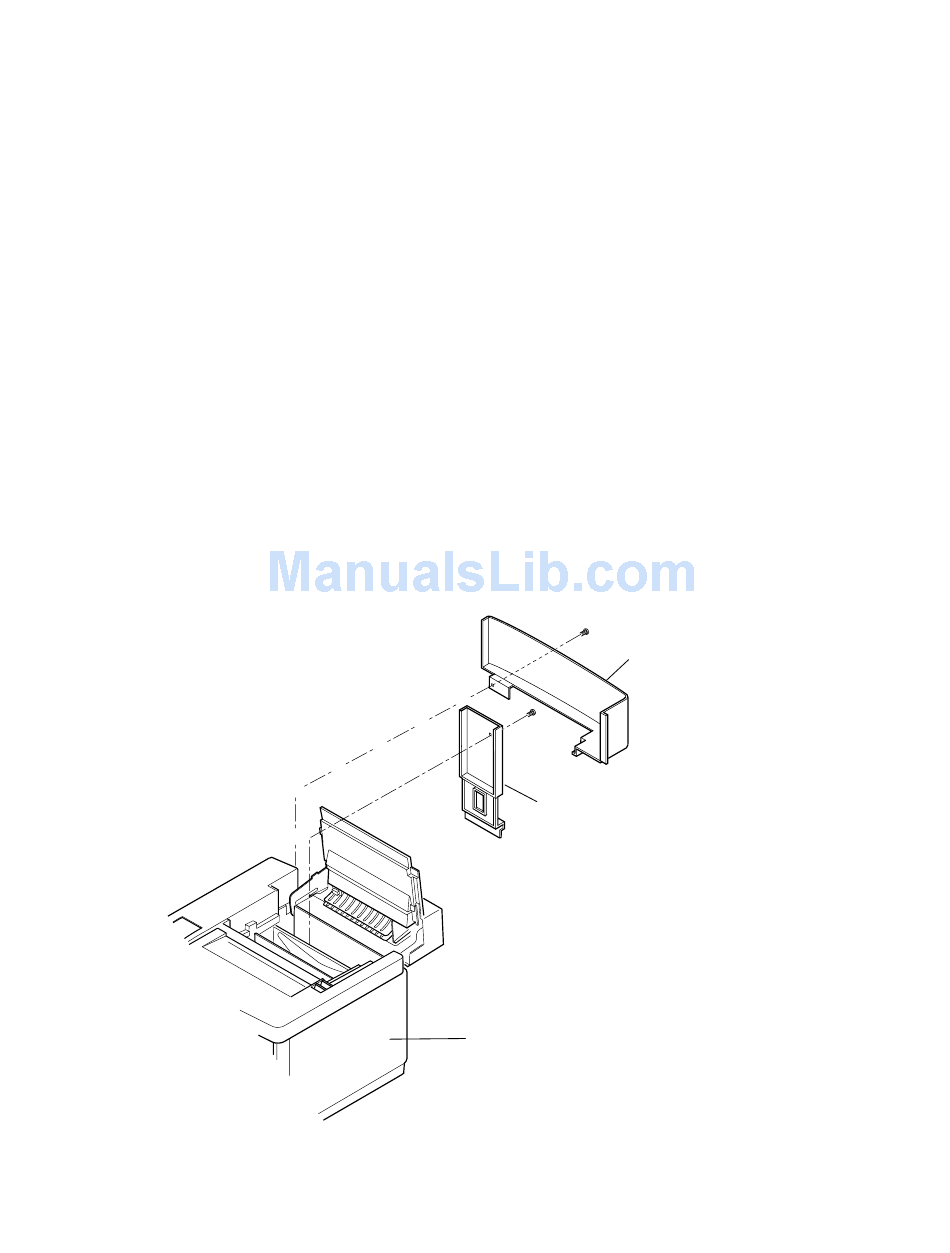

Rear Cover(U)
Rear Cover
Side Cover(R)
