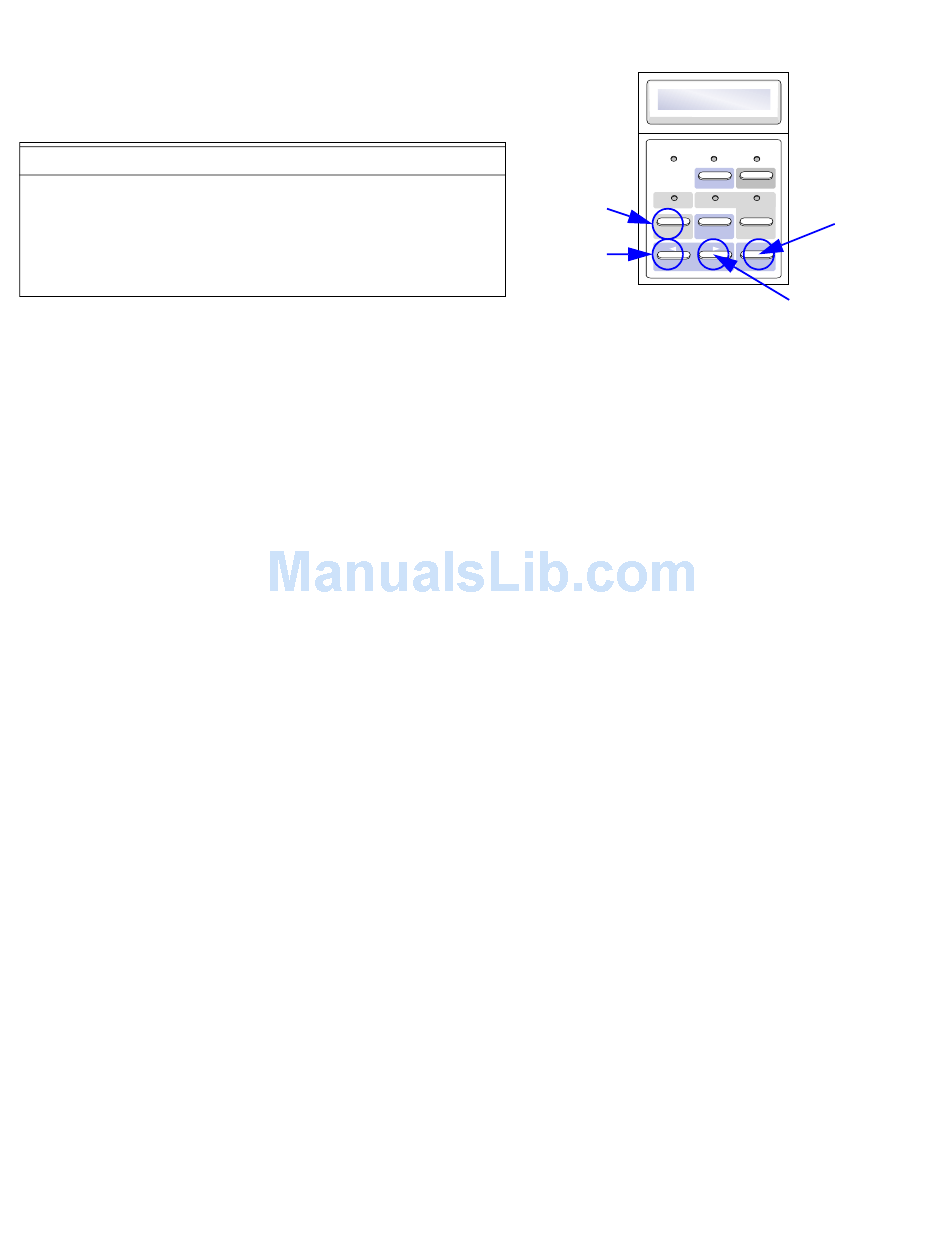

Factory Service Mode Button Layout
The button functions for this mode are different from the labels used for
normal operations. See the tabel and diagram below for the new layout.
Table 0-3: Factory Service Mode
Number
Buttton Name
NEXT
1
SELECT
2
PREVIOUS
3
ITEM
4
31 Test Print
Grid Pattern of single color or two colors (R, G, B) and Stripe Pattern of full color can be printed as a Test Print. The
procedure is as follows:
1.
Press Select key.
2.
Using Scroll key, select the desired pattern (i.e. grid pattern), and then, press Select key.
3.
Using Scroll key, select the desired color (i.e. red color), and then, press Select key
4.
After completion of the warming-up process, the desired pattern of selected color will be continuously printed.
5.
Print operation is suspended by pressing Clear key.
6.
If it is desired to return to the previous Control Panel LCD (message), press Clear key one more time.
32 Next Care Information
Information relating to the replacement timing of periodical replacement parts can be obtained, namely, the
number of motion images and prints.
1.
Press Select key after selecting Control Panel LCD (a) "NEXT CARE INFO"
2.
Using Scroll key, select the care code of desired
a.
Fuser Cleaning Roller (FC)
b. Photoconductor Belt Module (BL)
c.
Fuser Unit (FU)
3.
After selecting the desired information's code, press Select key. Then, number of images or printouts
corresponding to the selected code is displayed.
4.
Control Panel LCD can be cleared by pressing the Clear key.
5.
Press the Clear key one more time at the Control Panel LCD to return to the service mode.
33 Cassette Type
Desired paper cassette can be selected.
1.
Press Select key after selecting Control Panel LCD "CASSETTE TYPE".
2.
Using Scroll key, select the applicable code of desired cassette (A, B or C), and then, press the Select key.
3.
Press the Clear key to clear the Control Panel LCD
note:
A = US, B = EC, C = Japan
34 Total Page
Total number of printouts can be confirmed.
1.
Press Select key after selecting TOTAL PAGE mode.
2.
A 6 digit number is displayed. This number represents the total number of pages that have been printed.
3.
Press the Clear key to clear the Control Panel LCD
252
SuperScript 4400 — Maintenance Guide
Function
Navigate to previous selection.
Navigate to next selection.
Select a menu item
Clear a test
Power
Warning
Online
Menu
OnLine
4
Data
OHT
Label
Feed
Item
Media
3
Previous
Next
Select
2
1
