7 .6.9 Fuser Connector
Tools
Phillips Screwdriver #1, #2
Disassembly Procedures
1. Remove the fuser unit.
2. Remove the side cover (L). (See the
item 7.1.2.)
3. Remove the shield case A assembly.
(See the item 7.2.5.)
4. Remove the PN/PH connector
connected with the DC power
supply unit.
5. Remove the set screw SP3 8 (2
pcs.) of fuser connector.
6. Remove the fuser connector. * Set
screw of fuser connector is unique.
Assembly Procedures
1. Install a new fuser connector.
2. After the above, follow exactly the
reverse order of disassembling
procedures.

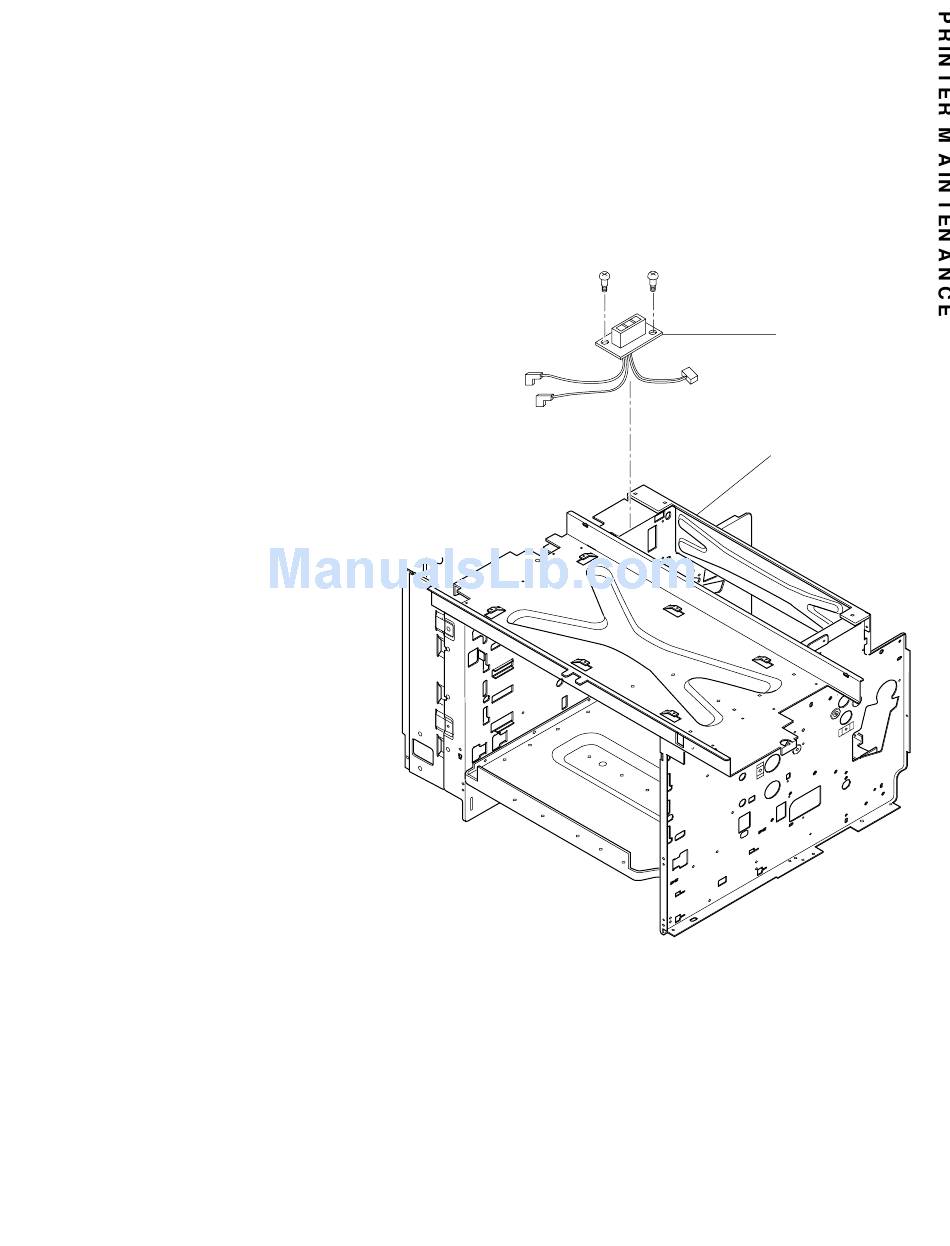

Replacement Procedures for Maintenance Parts
Fuser Connector
Frame Ass'y
