Installing The Fuser Oil Bottle And Fuser Cleaning Roller - NEC Super Script 4400 Maintenance Manual

I
NSTALLING THE

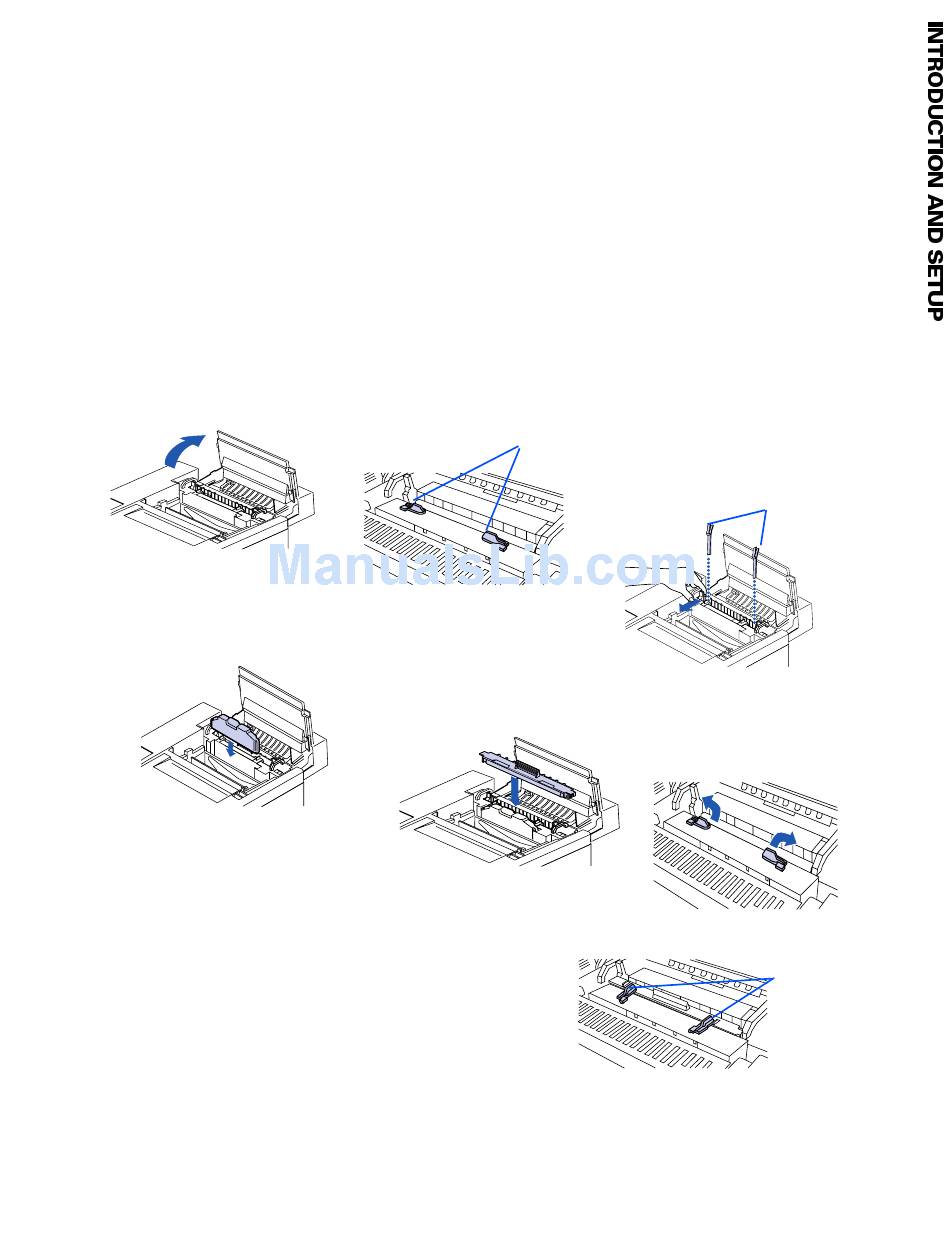

1. Open the Top Cover of the printer (A).
2. Make sure the Lock Tabs are in the open position (B).
3. Remove the orange Tension Release Pins, by pulling them up and out (C).
note:
You may have to pull hard to remove these. .
4. Remove the Fuser Oil Bottle from its plastic bag and set into place with the shunt valve down and the labeled
side facing the front of the printer (D). The tab on the bottle should face right when viewed from the printer's
front.
5. Remove the Fuser Cleaning Roller from its plastic bag and set into place with the exposed part of the roller
facing the front of the printer (E). The extra tab should be on the left.
6. Turn the Lock Tabs to the locked position holding the Fuser Oil Bottle and Fuser Cleaning Roller in place (F).
7. Close the Top Cover of the printer.
