Printing 4400 Information Pages
You can print a number of different pages o with useful information about your printer. Follow these steps.
1.
Press Online.
OFFLINE
2.
Press Menu.
MENU - CONTROL
3.
Press Next until
PRINT FORM
4.
Press Select
.
5.
Press Next until you see the page you want to print. Your choices are,
and
PAGE,
SUPPLY ORDER.
6.
Press Select, and when the panel displays
Resetting Usage Reports
You should reset the Usage Status any time you replace the Belt Cartridge, Fuser Cleaning Roller, or Fuser Unit.
Follow these steps. The example below shows how to reset the Usage Report when you replace the Fuser Unit.
1.
Press Online.
OFFLINE
2.
Press Menu.
MENU - CONTROL
3.
Press Next until
USAGE STATUS
4.
Press Select.
5.
Press Next until
REPLACE FUSER
6.
Press Select, and when the panel displays
S
M
ERVICE
ODE
This mode is to be used by a service technician to perform maintenance procedures. To enter the service mode
During power-up press and hold th Online and Menu buttons until at least 6 seconds after the "SUPERSCRIPT
4400 BOOTING..." message is displayed.
note:
To perform any download functions the host computer must be connected via the parallel port.
1.
Download Code - Prepares the printer to recieve new firmware code from the host computer via the parallel
port. When the printer is ready for download from a DOS window Enter Copy/b "filename" LPT1:
2.
Run Disk File - Execute a program file that has been downloaded to the printer's hard disk.
3.
Burn Flash - Prepares the printer to recieve new flash code from the host computer via the parallel port.
note:
To perform this function the Online and Select buttons need to be pressed during power-up.
4.
Show Version - Displays the current firmware version.
5.
Perform Self-test - Enters into the self test mode.
6.
Format Disk - Formats the hard disk.
F
S
ACTORY
ERVICE
This mode allows the service technician to perform diagnostic tests, and maintenance procedures on the printer
engine. The button functions for this mode are different from the labels used for normal operations. See the table
and diagram below for the new layout. To enter this mode perform the following procedure:
1.
Power the printer off.
2.
Slide the Controller out so that the controller is disconnected form the printer.
3.
Press and hold the Feed, Next, and Select buttons during power on until the printer boots.
note:
To exit this mode power the printer off and on.
note:
See "Chapter 8" for Factory Service Mode diagnostic procedures.

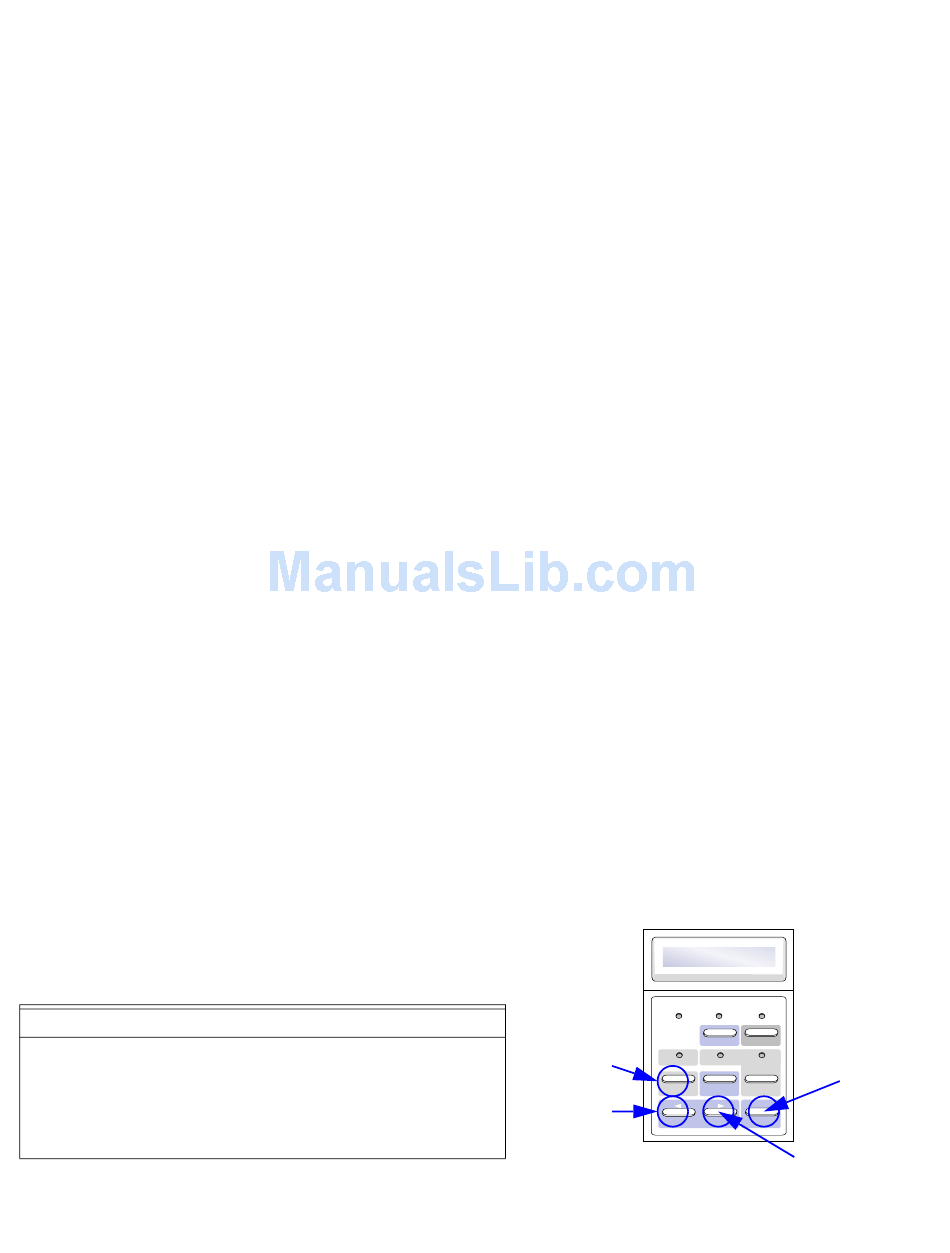

Table 0-1: Factory Service Mode
Number
Buttton Name
NEXT
1
SELECT
2
PREVIOUS
3
ITEM
4
28
SuperScript 4400 — Maintenance Guide
appears on the display.
appears on the display.
appears on the display.
CONFIRM
appears on the display.
appears on the display.
appears on the display.
appears on the display.
CONFIRM
O
PERATIONS
M
ODE
Function
Navigate to previous selection.
Navigate to next selection.
Select a menu item
Clear a test
DEMO PAGE, PS START PAGE, PS FONT
, press Select again.
, press Select again.
4
3
Power
Warning
Online
Menu
OnLine
Data
OHT
Label
2
Feed
Item
Media
Previous
Next
Select
1
