Design and function

MIG/MAG welding

5.9 MIG/MAG welding
5.9.1

Connection for workpiece lead

Item Symbol Description
1
2
3
• Insert the plug on the workpiece lead into the "-" welding current connection socket and lock.
Note the polarity of the welding current!
Some wire electrodes (e.g. self-shielding cored wire) are welded using negative polarity.
In this case, the welding current lead should be connected to the "-" welding current
socket, and the workpiece lead should be connected to the "+" welding current socket.
• Observe the information from the electrode manufacturer!
30
0
Workpiece
"-" welding current connection socket
• MIG/MAG welding:
Connection socket, "+" welding current
• MIG/MAG cored wire welding:
2
3

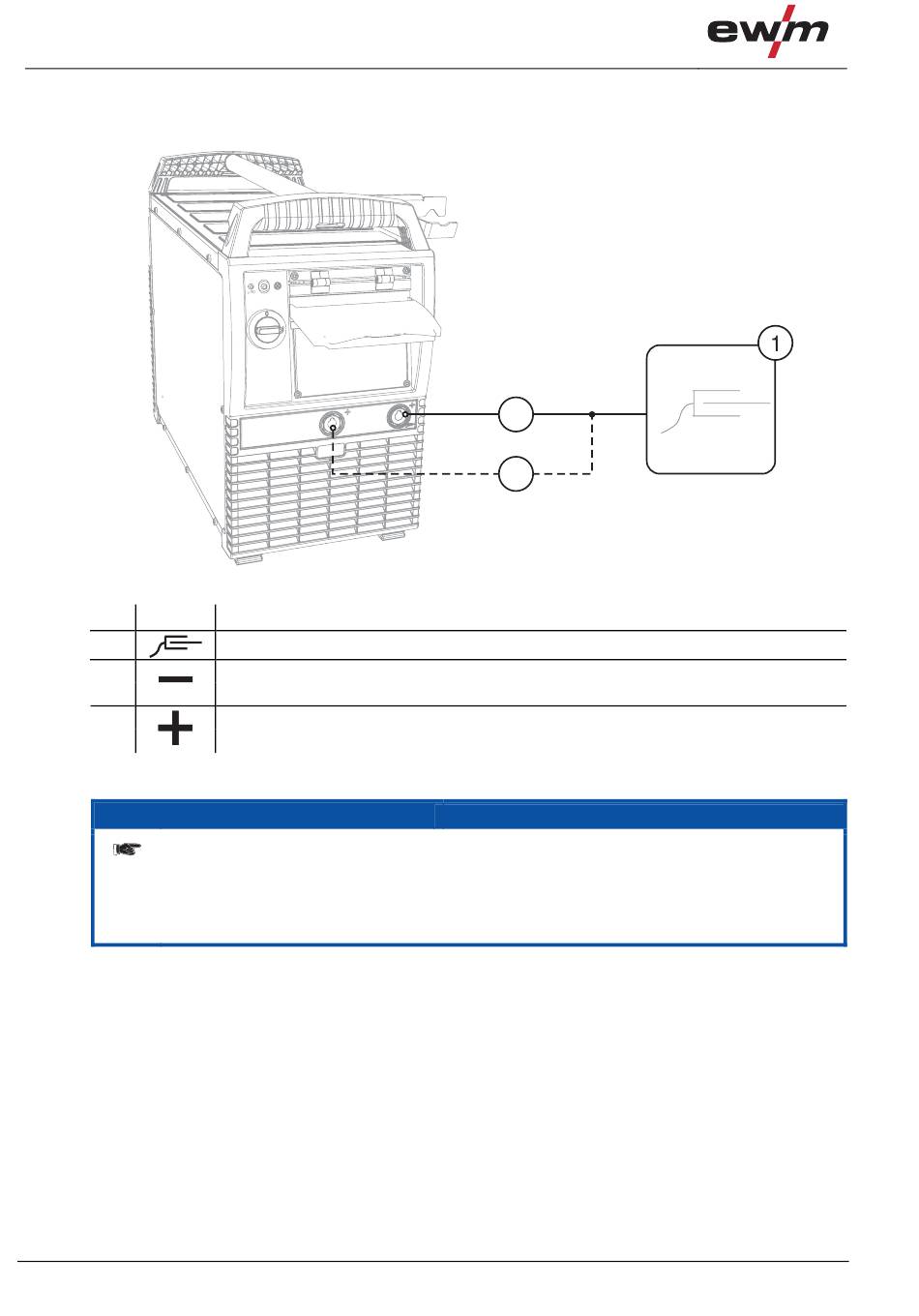

Figure 5-8
Workpiece connection
Workpiece connection
NOTE
099-005261-EW501
11.04.2012
