9
DTMF MEMORY

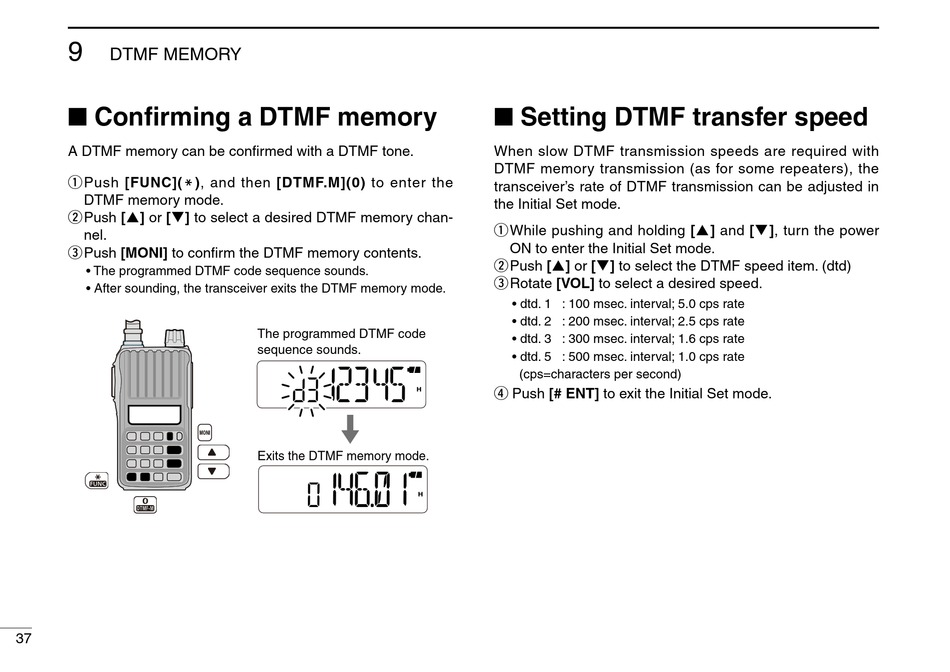

■ Confirming a DTMF memory

A DTMF memory can be confirmed with a DTMF tone.
q Push [FUNC](M), and then [DTMF.M](0) to enter the
DTMF memory mode.
w Push [] or [] to select a desired DTMF memory chan-
nel.
e Push [MONI] to confirm the DTMF memory contents.
• The programmed DTMF code sequence sounds.
• After sounding, the transceiver exits the DTMF memory mode.
37
The programmed DTMF code
sequence sounds.
Exits the DTMF memory mode.

■ Setting DTMF transfer speed

When slow DTMF transmission speeds are required with
DTMF memory transmission (as for some repeaters), the
transceiver's rate of DTMF transmission can be adjusted in
the Initial Set mode.
q While pushing and holding [] and [], turn the power
ON to enter the Initial Set mode.
w Push [] or [] to select the DTMF speed item. (dtd)
e Rotate [VOL] to select a desired speed.
• dtd. 1 : 100 msec. interval; 5.0 cps rate
• dtd. 2 : 200 msec. interval; 2.5 cps rate
• dtd. 3 : 300 msec. interval; 1.6 cps rate
• dtd. 5 : 500 msec. interval; 1.0 cps rate
(cps=characters per second)
r Push [# ENT] to exit the Initial Set mode.
