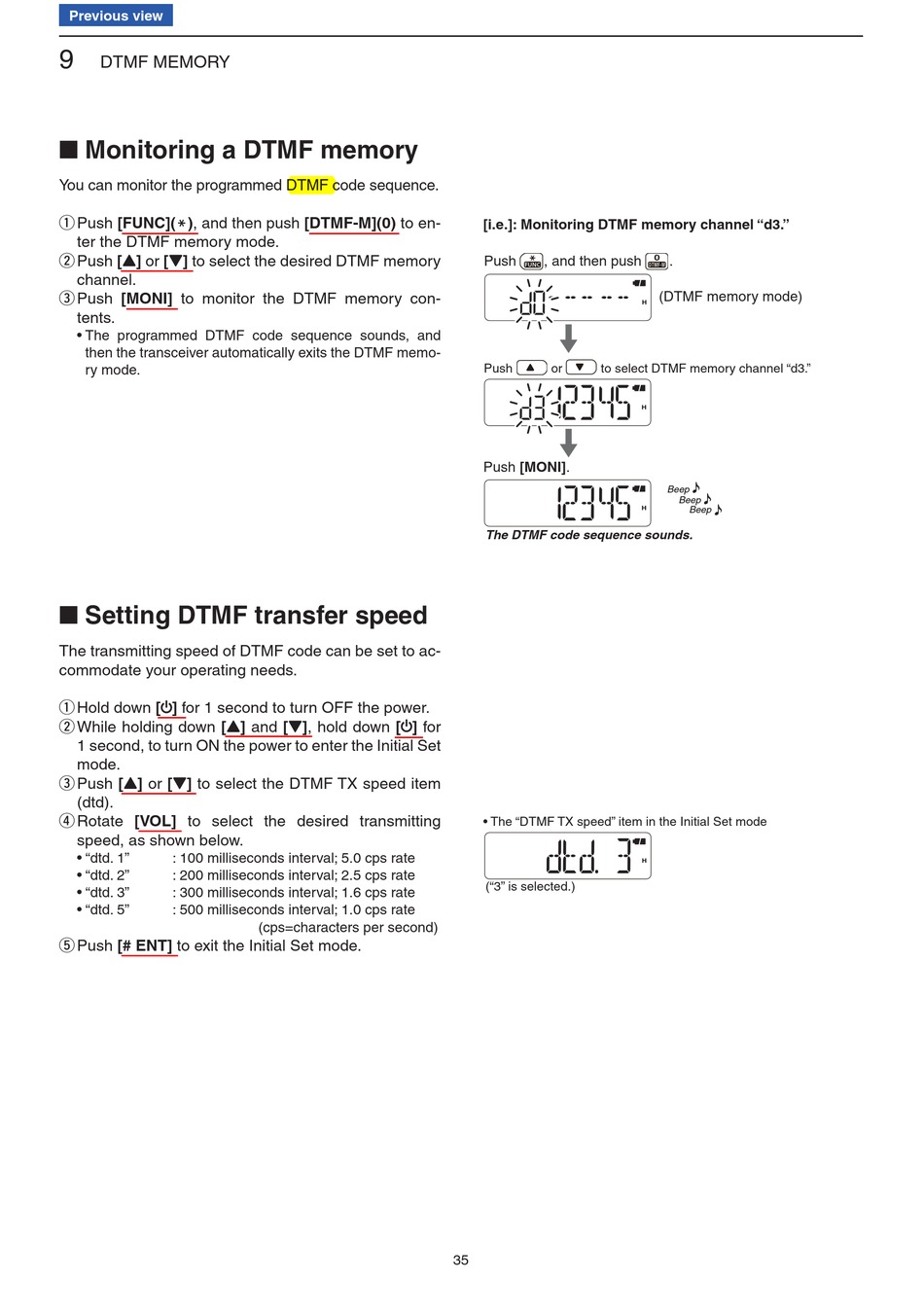

9
DTMF MEMORY

■ Monitoring a DTMF memory

You can monitor the programmed DTMF code sequence.
q Push [FUNC](M), and then push [DTMF-M](0) to en-
ter the DTMF memory mode.
w Push [Y] or [Z] to select the desired DTMF memory
channel.
e Push [MONI] to monitor the DTMF memory con-
tents.
• The programmed DTMF code sequence sounds, and
then the transceiver automatically exits the DTMF memo-
ry mode.

■ Setting DTMF transfer speed

The transmitting speed of DTMF code can be set to ac-
commodate your operating needs.
q Hold down [ ] for 1 second to turn OFF the power.
w While holding down [Y] and [Z], hold down [ ] for
1 second, to turn ON the power to enter the Initial Set
mode.
e Push [Y] or [Z] to select the DTMF TX speed item
(dtd).
r Rotate [VOL] to select the desired transmitting
speed, as shown below.
• "dtd. 1" : 100 milliseconds interval; 5.0 cps rate
• "dtd. 2" : 200 milliseconds interval; 2.5 cps rate
• "dtd. 3" : 300 milliseconds interval; 1.6 cps rate
• "dtd. 5" : 500 milliseconds interval; 1.0 cps rate
t Push [# ENT] to exit the Initial Set mode.
(cps=characters per second)
[i.e.]: Monitoring DTMF memory channel "d3."
Push , and then push
Push or to select DTMF memory channel "d3."
Push [MONI].
The DTMF code sequence sounds.
• The "DTMF TX speed" item in the Initial Set mode
("3" is selected.)
35
.
(DTMF memory mode)
Beep
Beep
Beep
