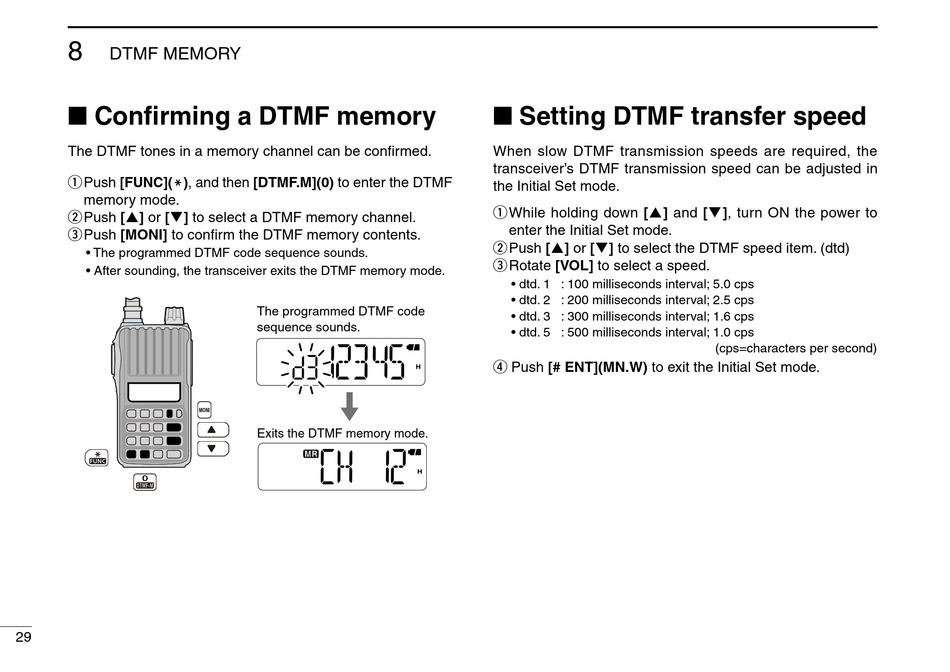

Confirming A Dtmf Memory; Setting Dtmf Transfer Speed - Icom IC-G80 Instruction Manual

8
DTMF MEMORY

■ Confirming a DTMF memory

The DTMF tones in a memory channel can be confirmed.
q Push [FUNC](M), and then [DTMF.M](0) to enter the DTMF
memory mode.
w Push [] or [] to select a DTMF memory channel.
e Push [MONI] to confirm the DTMF memory contents.
• The programmed DTMF code sequence sounds.
• After sounding, the transceiver exits the DTMF memory mode.
29
The programmed DTMF code
sequence sounds.
Exits the DTMF memory mode.

■ Setting DTMF transfer speed

When slow DTMF transmission speeds are required, the
transceiver's DTMF transmission speed can be adjusted in
the Initial Set mode.
q While holding down [] and [], turn ON the power to
enter the Initial Set mode.
w Push [] or [] to select the DTMF speed item. (dtd)
e Rotate [VOL] to select a speed.
• dtd. 1 : 100 milliseconds interval; 5.0 cps
• dtd. 2 : 200 milliseconds interval; 2.5 cps
• dtd. 3 : 300 milliseconds interval; 1.6 cps
• dtd. 5 : 500 milliseconds interval; 1.0 cps
r Push [# ENT](MN.W) to exit the Initial Set mode.
(cps=characters per second)
