9
DTMF MEMORY

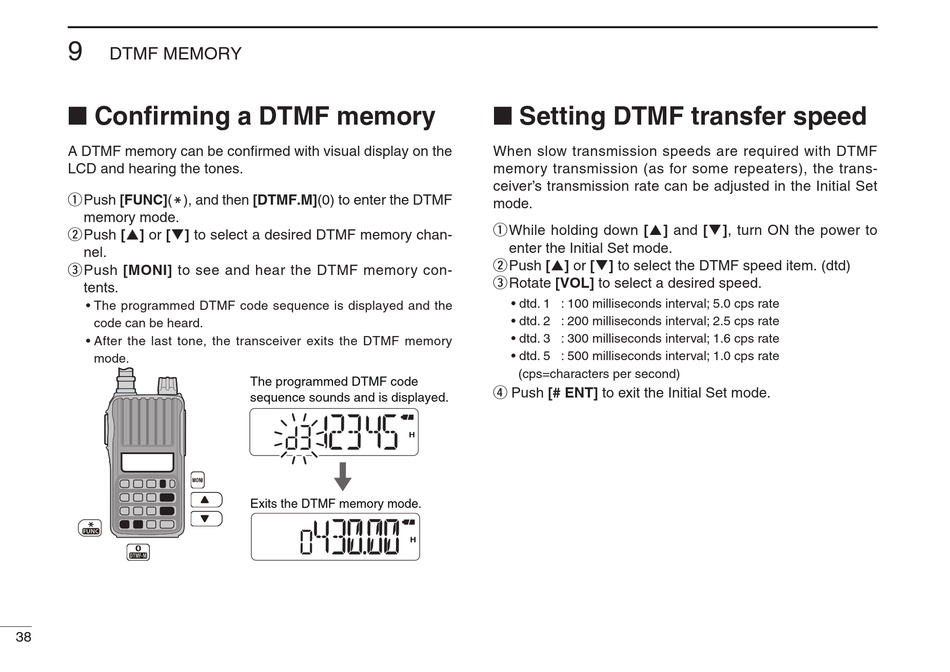

■ Confirming a DTMF memory

A DTMF memory can be confirmed with visual display on the
LCD and hearing the tones.
q Push [FUNC](M), and then [DTMF.M](0) to enter the DTMF
memory mode.
w Push [p] or [q] to select a desired DTMF memory chan-
nel.
e Push [MONI] to see and hear the DTMF memory con-
tents.
• The programmed DTMF code sequence is displayed and the
code can be heard.
• After the last tone, the transceiver exits the DTMF memory
mode.
38
The programmed DTMF code
sequence sounds and is displayed.
Exits the DTMF memory mode.

■ Setting DTMF transfer speed

When slow transmission speeds are required with DTMF
memory transmission (as for some repeaters), the trans-
ceiver's transmission rate can be adjusted in the Initial Set
mode.
q While holding down [p] and [q], turn ON the power to
enter the Initial Set mode.
w Push [p] or [q] to select the DTMF speed item. (dtd)
e Rotate [VOL] to select a desired speed.
• dtd. 1 : 100 milliseconds interval; 5.0 cps rate
• dtd. 2 : 200 milliseconds interval; 2.5 cps rate
• dtd. 3 : 300 milliseconds interval; 1.6 cps rate
• dtd. 5 : 500 milliseconds interval; 1.0 cps rate
(cps=characters per second)
r Push [# ENT] to exit the Initial Set mode.
