Confirming A Dtmf Memory; Setting Dtmf Transfer Speed - Icom IC-E80D Instruction Manual

13
OTHER FUNCTIONS

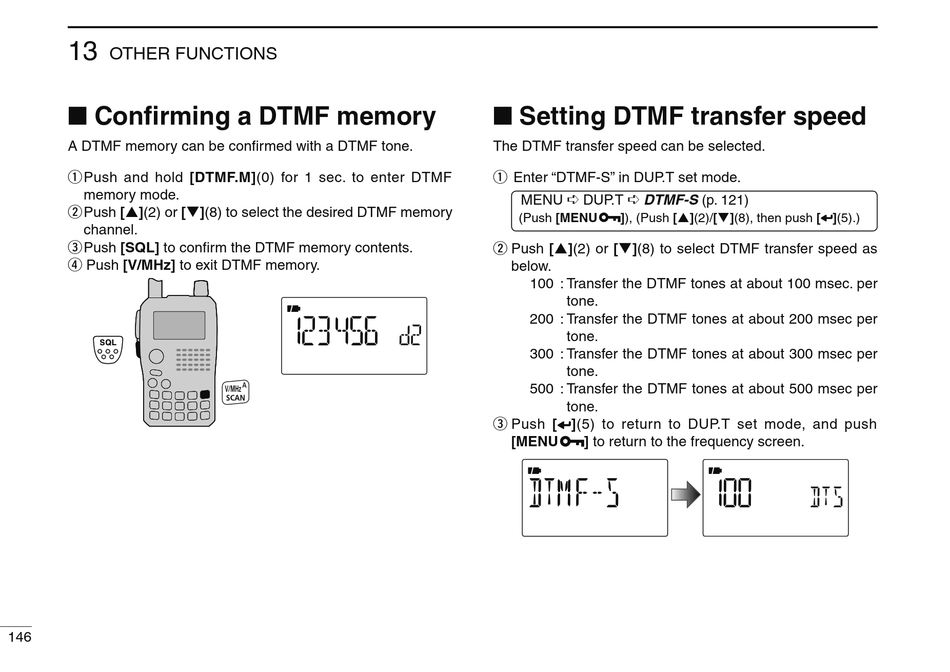

Confirming a DTMF memory
A DTMF memory can be confirmed with a DTMF tone.
q Push and hold [DTMF.M](0) for 1 sec. to enter DTMF
memory mode.
w Push [ ](2) or [ ](8) to select the desired DTMF memory
channel.
e Push [SQL] to confirm the DTMF memory contents.
r Push [V/MHz] to exit DTMF memory.
146

Setting DTMF transfer speed

The DTMF transfer speed can be selected.
q Enter "DTMF-S" in DUP.T set mode.
MENU DUP.T DTMF-S (p. 121)
(Push [MENU ]), (Push [ ](2)/[ ](8), then push [ ](5).)
w Push [ ](2) or [ ](8) to select DTMF transfer speed as
below.
100 : Transfer the DTMF tones at about 100 msec. per
tone.
200 : Transfer the DTMF tones at about 200 msec per
tone.
300 : Transfer the DTMF tones at about 300 msec per
tone.
500 : Transfer the DTMF tones at about 500 msec per
tone.
e Push [ ](5) to return to DUP.T set mode, and push
[MENU ] to return to the frequency screen.
