Jumpering

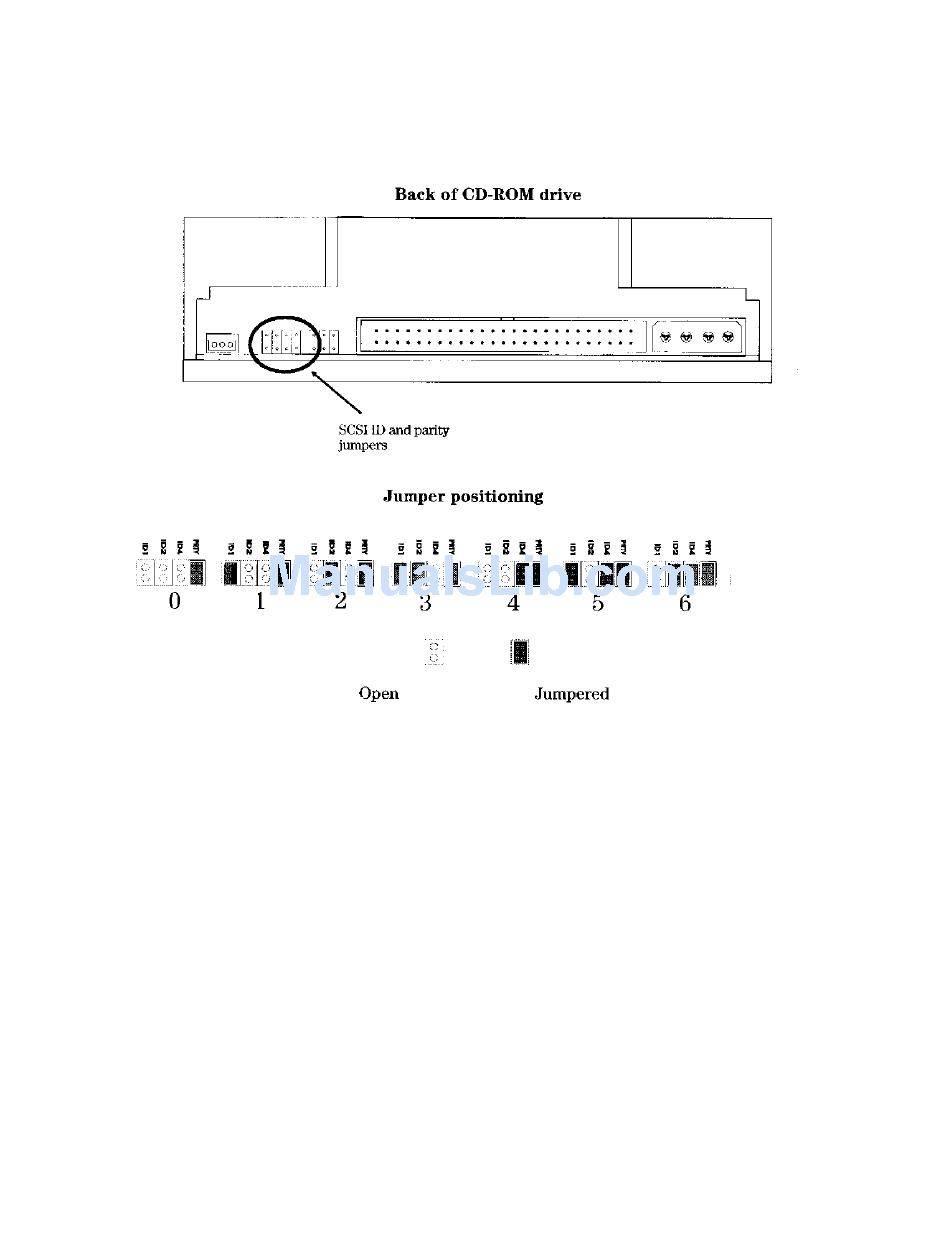

Figure 8-62 shows the location of the jumper and the possible settings for the three-bit SCSI ID
configurations. The SCSI ID can range from 0 to 6, depending on which pins are jumpered. SCSI address
7 is reserved for the host. Note that the parity jumper must be in place in all settings.
Figure 8-62. HP A3416A SCSI ID Jumpers
