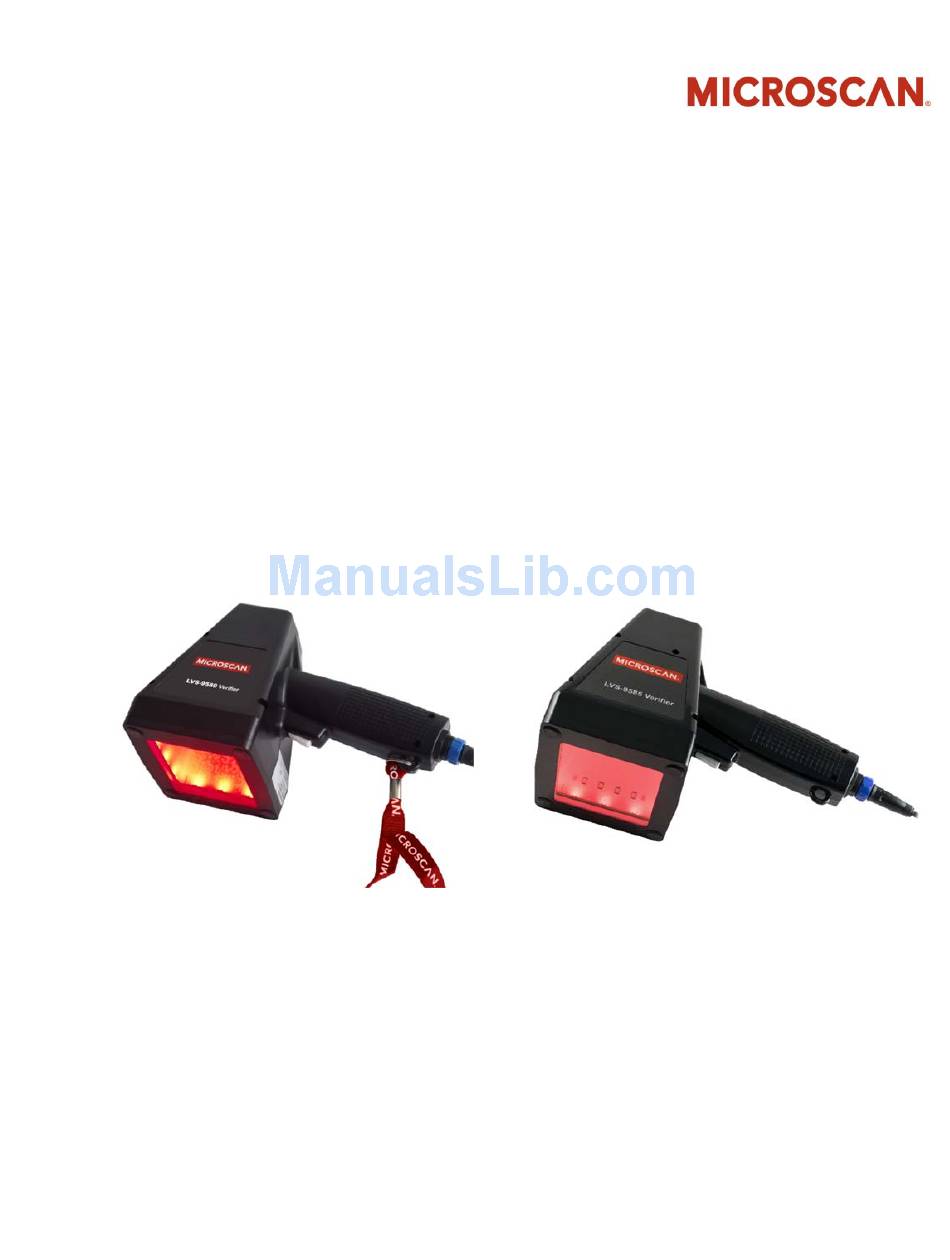

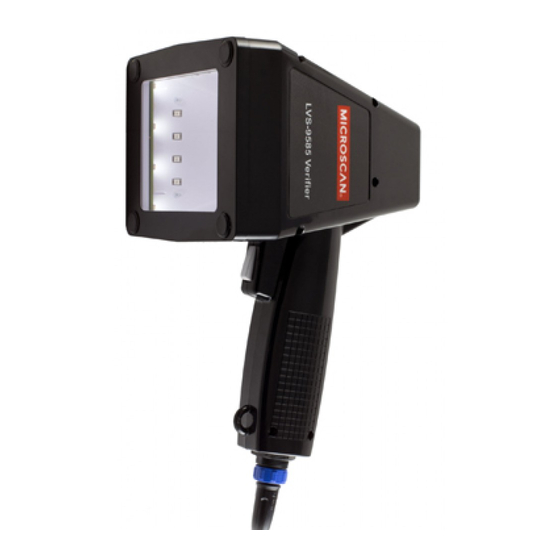

LVS
®
9580/9585 Operating Instructions
English
LVS-9580
LVS-9585
P/N 84-9310011-02 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVS-9585 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microscan LVS-9585

Summary of Contents for Microscan LVS-9585

  • Page 1 ® 9580/9585 Operating Instructions English LVS-9580 LVS-9585 P/N 84-9310011-02 Rev B...

  • Page 2: Technical Support

    All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Microscan manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Microscan.

  • Page 3: Table Of Contents

    Supported Symbologies and Standards ..............16 Supported Symbologies ..................16 Supported Standards ....................17 APPENDIX A – OPERATING THE LVS-9580 DPM VERIFIER ........18 APPENDIX B – OPERATING THE LVS-9585 VERIFIER ..........23 LVS-9580/9585 Operating Instructions - English Page 3 of 27...

  • Page 4: Important Information

    Do not attempt to work on the system with the USB cable connected.  To avoid damaging the system, unplug the USB cable before cleaning.  If the system ever needs repair, consult Microscan or a Microscan Distributor. LVS-9580/9585 Operating Instructions - English Page 4 of 27...

  • Page 5: About The Lvs-9580/9585

    LVS-9580/9585 Operating Instructions - English About the LVS-9580/9585 The LVS-9580/9585 is a portable, handheld barcode verifier designed for off-line verification of barcodes to ISO/IEC standards. The LVS-9580/9585 is a 5.0 megapixel camera-based system that grades linear (1D) and two-dimensional (2D) codes up to 3 inches (76 mm) wide and up to 2 inches (51 mm) tall (including the quiet zone).

  • Page 6: Hardware Overview

    LVS-9580/9585 Operating Instructions - English Hardware Overview The LVS-9580/9585 is comprised of the following hardware components: Note: The image below shows the device approaching the symbol to be verified. The four rubber feet at the corners of the verifier window must be placed on the surface where the symbol is printed or marked.

  • Page 7: Lvs-95Xx Software Steps

    LVS-9580/9585 Operating Instructions - English LVS-95XX Software Steps Refer to the sections below for steps on:  Logging in to LVS-95XX software  Turning on the LVS-9580/9585 camera  Calibrating the LVS-9580/9585 Note: Refer to the “LVS-95XX Series Software Installation Guide” for step-by-step instructions on installing the LVS-95XX software;...
  • Page 8 LVS-9580/9585 Operating Instructions - English 2. Click the “Setup” tab. The “Login” box appears. 3. Enter admin (not case sensitive) in the Operator ID field and in the Password field. 4. Click “OK.” LVS-95XX Software will open. 5. Turn on the LVS-9580/9585 camera by following the steps in the next section entitled “Turn on the LVS- 9580/9585 Camera.”...

  • Page 9: Turn On The Lvs-9580/9585 Camera

    LVS-9580/9585 Operating Instructions - English Turn On the LVS-9580/9585 Camera 1. Click the “Setup” tab and select “9580/9585” in the “Camera” section (see below). LVS- 9580/9585 Additional camera Select the “Auto-Sector” option Note: When using only the LVS-9580/9585 (with no other LVS-95XX barcode verifier, such as the LVS- 9510), “9580/9585”...

  • Page 10: Calibrate The Lvs-9580/9585

    LVS-9580/9585 Operating Instructions - English Calibrate the LVS-9580/9585 IMPORTANT: The LVS-9580/9585 should be calibrated regularly. The entire calibration process takes less than 30 seconds to complete and ensures the LVS-9580/9585 is certified according to industry standards. The Calibrated Conformance Standard Test Card should be replaced every two years. It is recommended to clean the LVS-9580/9585 window prior to calibration.
  • Page 11 LVS-9580/9585 Operating Instructions - English 3. Firmly grip the LVS-9580/9585 handle. There is no need to pull the trigger at this time (pulling the trigger causes the LVS-9580/9585 to capture a live image; however, the image is automatically live while the system is in Calibration mode).
  • Page 12 Re-scan the Master Grade barcode and follow the above steps to calibrate. It may take two or three attempts before calibration is complete. If calibration continues to fail, contact Microscan or a Microscan representative for further instructions. IMPORTANT: The calibration score will hardly ever match exactly; this is normal and acceptable as long as the scores are within +/- 3 percentage points.

  • Page 13: Grading Barcodes

    LVS-9580/9585 Operating Instructions - English Grading Barcodes 1. Click the “Grading” tab. 2. Firmly grip the LVS-9580/9585 handle and press and hold the trigger (do not release the trigger). 3. Place the LVS-9580/9585 window over the barcode ensuring the four rubber feet surrounding the window rest on the substrate (media/label material).

  • Page 14: Cleaning Instructions

    DO NOT directly spray the window with glass cleaner; always spray a towel or cloth with household glass cleaner and then gently wipe the window. DO NOT use an industrial-strength glass cleaner. Please contact a Microscan Distributor or Microscan Technical Support with questions or concerns about the performance of the LVS-9580/9585: Americas_support@microscan.com EMEA_support@microscan.com...

  • Page 15: Engineering Specifications

    RoHS/WEEE compliant   LVS-9580: Red 660 nm filter  LVS-9585: Red dome (660 nm); White dome, 30º angle Communication  USB 2.0 A/MINI-B cable 2.0 m (6.5 ft.) Specifications and images subject to change. LVS-9580/9585 Operating Instructions - English...

  • Page 16: Supported Symbologies And Standards

    LVS-9580/9585 Operating Instructions - English Supported Symbologies and Standards Below are just a few of the Symbologies and Standards supported by the LVS-9580/9585. Contact Microscan for a full list of supported Symbologies and Standards. Supported Symbologies   1D (Linear) Codes: 2D (Two-Dimensional) Codes: ...

  • Page 17: Supported Standards

    LVS-9580/9585 Operating Instructions - English Supported Standards ISO Conformance Standards:  ISO/IEC 15415  ISO/IEC 15416  ISO/IEC 15418  ISO/IEC 15426-1  ISO/IEC 15426-2  ISO/IEC TR29158 (DPM models only) / AIM DPM-1-2006 GS1 US Certification:  Data Matrix for Healthcare ...

  • Page 18: Appendix A - Operating The Lvs-9580 Dpm Verifier

    LVS-9580/9585 Operating Instructions - English Appendix A – Operating the LVS-9580 DPM Verifier The LVS-9580 DPM Verifier is a Direct Part Mark (DPM) verifier. The LVS-9580 DPM Verifier can be used to verify the symbol quality and structure of a Data Matrix symbol that is permanently affixed to a manufactured item.
  • Page 19 LVS-9580/9585 Operating Instructions - English Grading The LVS-9580 Grading Screen shows 6 boxes on the right side of the viewing window. These will represent which lighting modes are being used to Grade the DPM code. The LVS-9580 will only use Red Dome.
  • Page 20 LVS-9580/9585 Operating Instructions - English Best DPM Grade being reported. DPM image is zoomed in. If an A Grade is found, a pop-up window advises the user to “Release trigger”. If “Found” or “Adjusting” message is not shown after 20 seconds then the mark should be re-orientated within the field of view and another attempt to grade should be made.
  • Page 21 LVS-9580/9585 Operating Instructions - English Try Re-Grading When a direct part mark fails to read, position the symbol in a different part of the field of view. The software is sensitive to motion and may capture a slightly blurred image, which will cause the software not to grade it correctly.
  • Page 22 LVS-9580/9585 Operating Instructions - English Reports All results measured by the software are available in a printed report. These reports are also archived for future examination. An image of the direct part mark is attached to the printed report. LVS-9580/9585 Operating Instructions - English Page 22 of 27...

  • Page 23: Appendix B - Operating The Lvs-9585 Verifier

    LVS-9580/9585 Operating Instructions - English Appendix B – Operating the LVS-9585 Verifier Grading DPM Symbols with the LVS-9585 Verifier The LVS-9585 DPM Verifier is different from the LVS-9580 DPM Verifier due to the addition of 9 different lighting modes: ...

  • Page 24: Calibration Screen

    Clicking on the Red or White box confirms proper calibration for that lighting mode. Grading Screen The LVS-9585 Grading Screen shows 6 boxes on the right side of the viewing window. These will represent which lighting modes are being used to grade the DPM code.
  • Page 25 LVS-9580/9585 Operating Instructions - English Choose the Lighting Modes To choose the lighting modes: 1. Select the Lighting button on the Grading Screen. 2. Select the lighting mode. The default lighting modes are Red dome, White dome, and 30 degree N + S + E + W.
  • Page 26 LVS-9580/9585 Operating Instructions - English 2. Position the DPM symbol so that it is square to the field of view and then hold the LVS-9585 steady. (The software does not grade the code until there is no motion detected.) Once software has found the DPM symbol, the screen zooms in (magnify) on the symbol. The software also reports what grade has been detected.
  • Page 27 LVS-9580/9585 Operating Instructions - English 3. If an A Grade is found, a pop-up window advises you to “Release trigger”. 4. If the “Found” or “Adjusting” message is not shown after 20 seconds, reorient the mark within the field of view and grade it again.
