Performing a Walk Test

To perform a Walk Test:
At the Installer Toolbox screen, press the Walk Test
1
button.
NOTE: For the 25 minutes that the system is in Walk Test
mode, the system beeps once every 30 seconds. During
the last five (5) minutes, the system beeps two (2) times
every 30 seconds. The
bar.
Press the ↓ and ↑ arrows to scroll through the sensor
2
list.

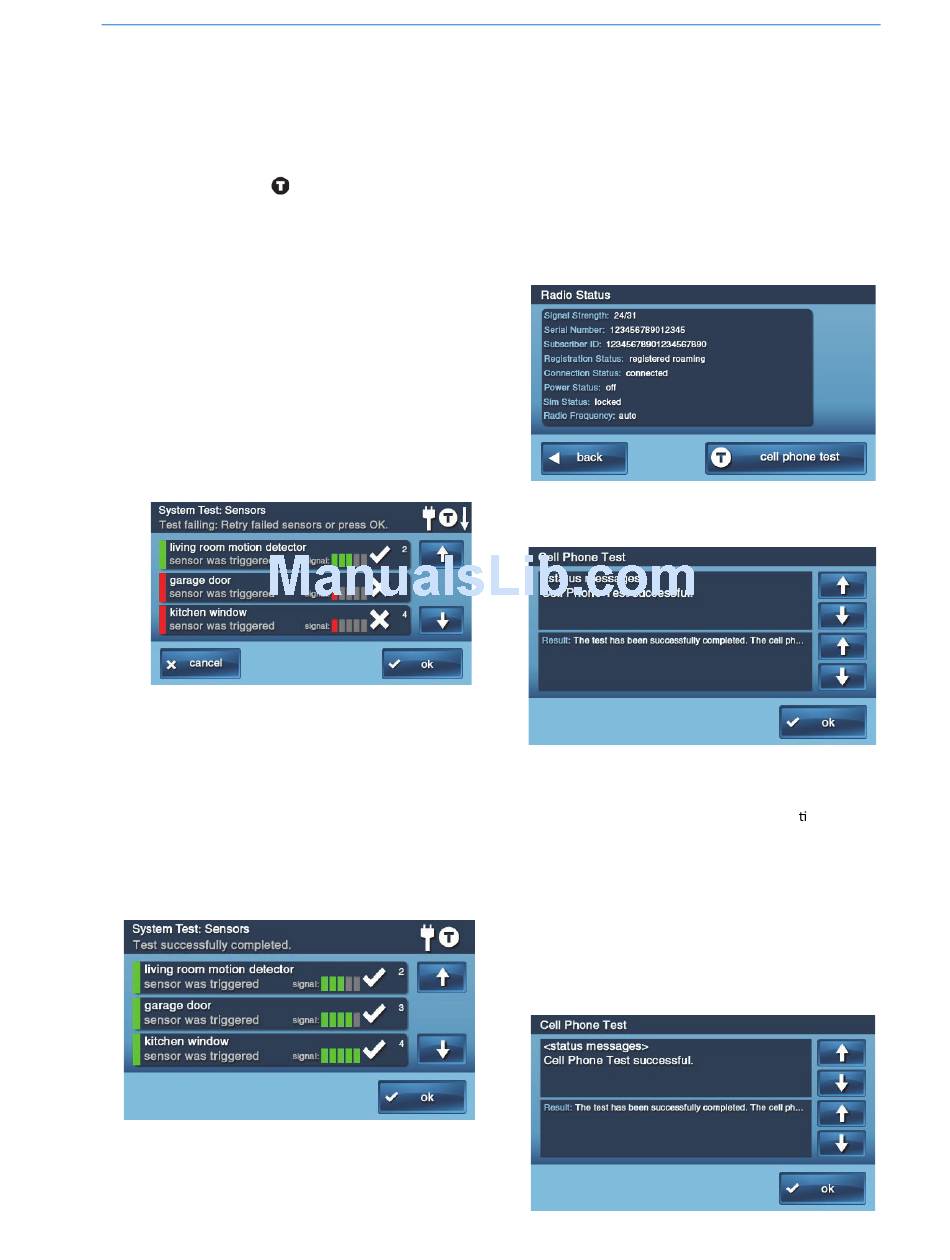

3 Activate the first sensor in the list and review the result
on the screen:
• When a sensor is received by the Control Panel,
three (3) beeps occur and the display lights a green
bar to the left of the sensor's name.
• The received signal strength of the sensor displays
as one to five green bars. The more bars, the higher
the signal strength.
• If the signal level is sufficient, a check mark displays
for that sensor.
• If the signal level is insufficient or the signal test
fails, the display lights a red bar, and an "x" displays
for that sensor.
• For sensors with multiple loops, wait 15 seconds
between triggering each loop.
4 Continue testing with each of the other sensors listed.
After all the sensors have been tested, press OK to test
the Control Panel's indicators and sounder.
Press each test item displayed, observe the Control
5
Panel item being tested, and answer the YES/NO test
question.
When all sensors and devices have been tested, press
6
OK. The Control Panel displays a summary of the test
results. To return to the Installer Toolbox screen, press
OK.
icon also flashes in the status

RADIO STATUS TEST

If the GSM (Cellular) Radio Module is installed in the
Control Panel, use the Radio Status screen to view signal
strength, serial number, registration status, and other
information for the cellular connection. The is a helpful tool
to use when troubleshooting the installation.

Cell Phone Test

To perform a cell phone test:
At the Installer Toolbox screen, press the Radio Status
1
button.
2 In the Radio Status screen, press the Cell Phone Test
button.
At the Enter Master Code to Access Cell Phone Test
3
screen, enter the master user code.
The Cell Phone Test screen appears
The top area of the Telephone Test screen shows the
Control Panel actions and the bottom area shows the
results.
4 Press the ↓ and ↑ arrows to review the ac ons and
results:
• RED text indicates the tested signal strength is zero,
too low, or that the GSM (Cellular) Radio Module is
unregistered.
• ORANGE text indicates the connection is idle and
the GSM (Cellular) Radio Module is registered.
• GREEN text indicates good signal strength is good
and the GSM (Cellular) Radio Module is registered.
When successful, press OK to return to the Toolbox (3
5
of 3) screen.
