SOLID STATE OUTPUT

The Control Panel provides one (1) solid state output that
can be programmed to activate during various conditions.
The output can switch up to 250 mA @ 16 VDC to ground.
NOTE: For ETL Listing, an external DC Backup Power Supply
is required for a load connected to Terminal 4.
NOTE: When the Control Panel is connected with an AC
power source, Terminal 1 provides DC Power only.

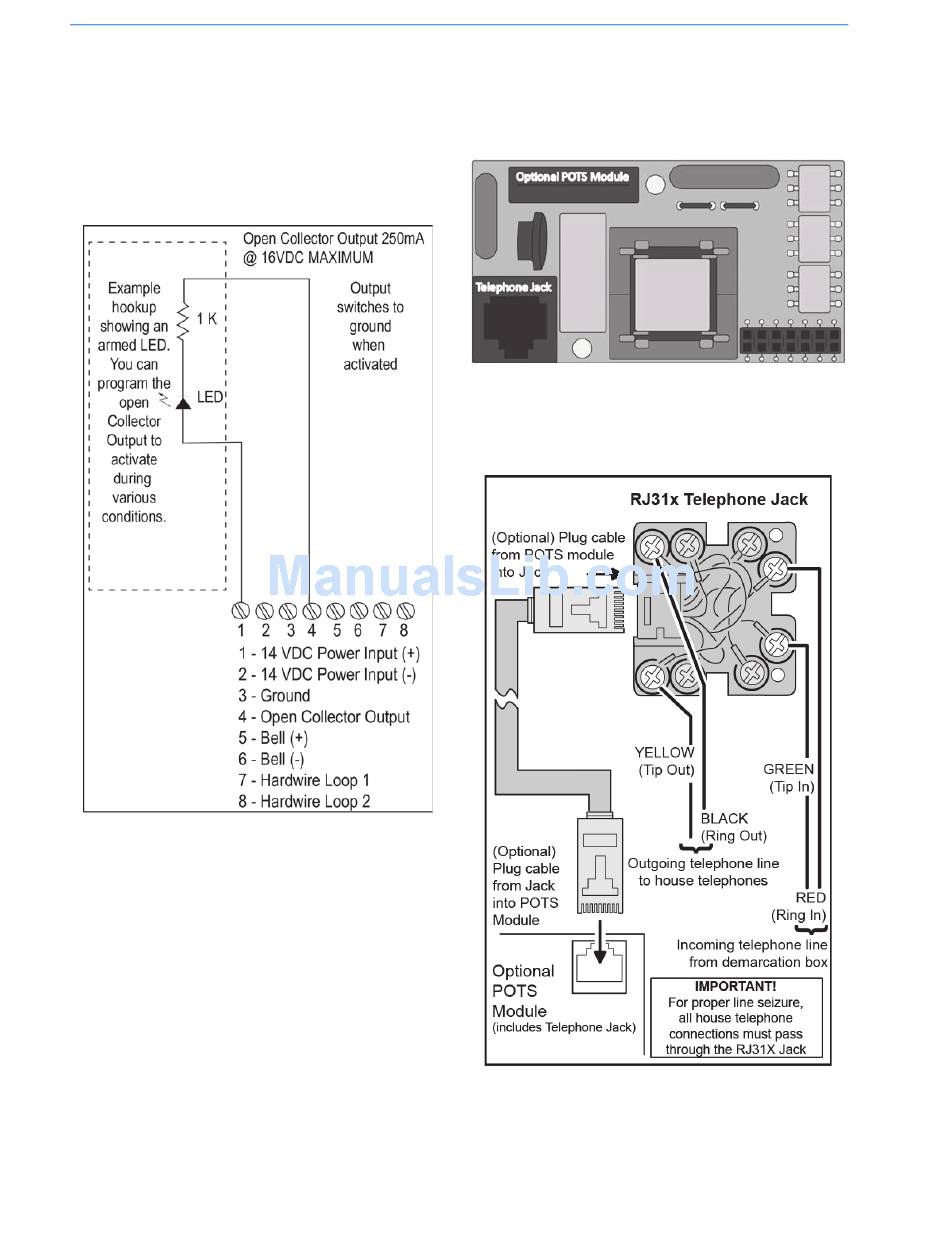

Figure 8 Solid State Output
This output only functions while the Control Panel is
receiving power from the wall power supply.
Install the device to be controlled by the solid state
1
output.
Route wiring from the device location to the Control
2
Panel's wall cutout.
WARNING: To avoid damage to the output, do NOT
connect an electromechanical bell to these terminals.
16 Copyright © 2014 Linear LLC
OPTIONAL 2GIG GO!CONTROL POTS
MODULE
To use the telephone jack, you must install the 2GIG
Go!Control POTS Module. Both the incoming and outgoing
telephone line can be connected.
Figure 9 2GIG Go!Control POTS Module
When the digital communicator activates, all local
telephones are disconnected to prevent an off‐hook
telephone on the premises from blocking the digital
communicator's call.
Figure 10 2GIG Go!Control POTS Module Installation
