SYSTEM STATUS ICONS
The top line of the Control Panel's display is the status bar
that shows the current system mode, the status of the
sensors, and any current system trouble alerts. Special
icons are displayed on the right side to provide visual
indications of the system's current condition.

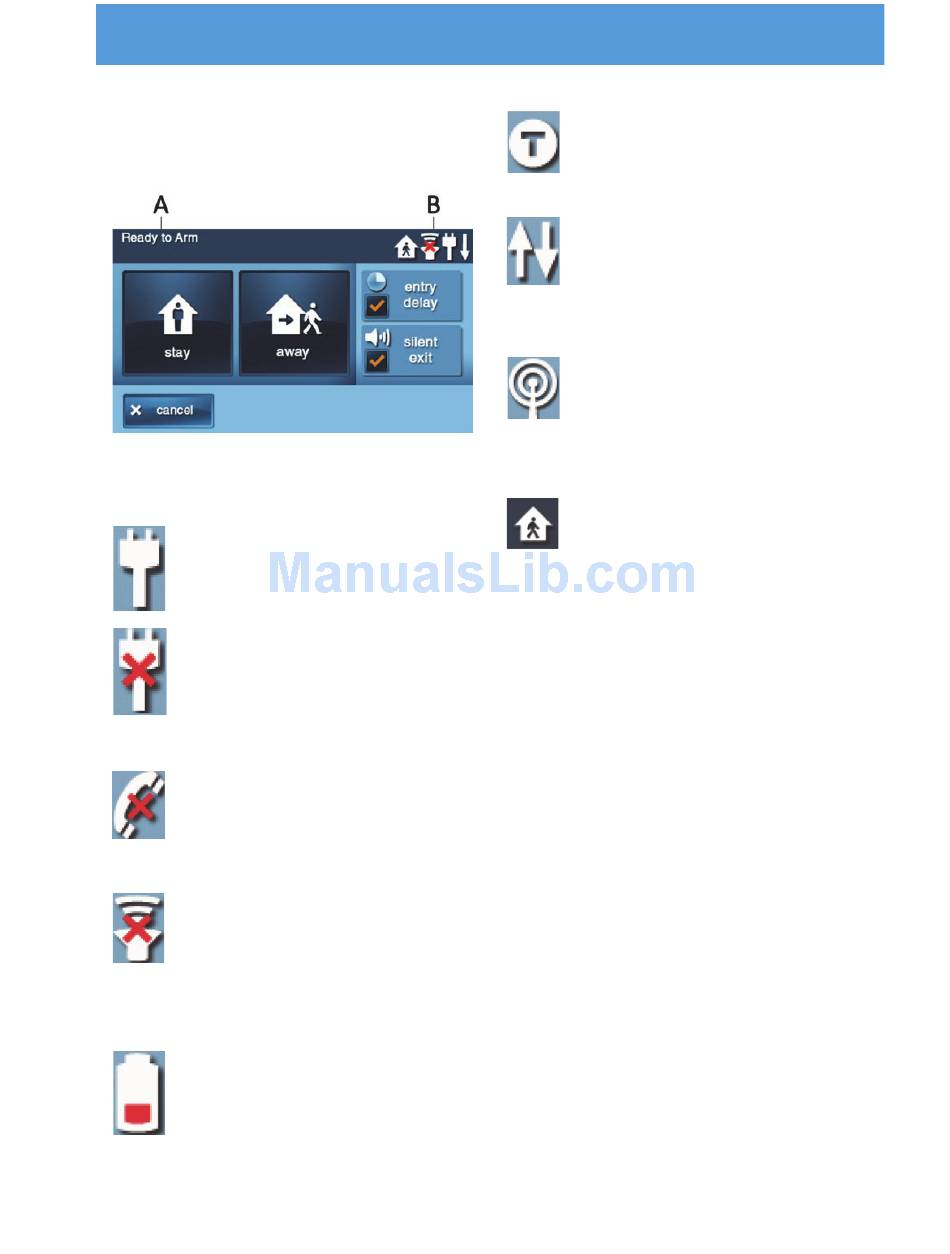

Figure 33 System Status Icons
A Status Bar
B Status Icons
AC POWER ON/OFF
Figure 34 AC Power ON
The AC Power icon shows the status of the AC
power to the Control Panel. A WHITE plug
appears when AC power is present.
Figure 35 AC Power OFF
The AC Power icon shows the status of the AC
power to the Control Panel. A RED "X" appears
over the WHITE plug when AC power is absent.
PHONE LINE FAILURE
Figure 36 Phone Line Failure
If the Control Panel detects that the telephone
line is disconnected, the phone line failure icon
appears.
SOUNDER DISABLED
Figure 37 Sounder Disabled
If the system's internal sounder has been
lowered and external sounder has been disabled
by the installer for testing, the sounder disabled
icon appears. It also flashes to indicate silent
arming.
LOW BACKUP BATTERY
Figure 38 Low Backup Battery
If the Control Panel's backup battery tests low,
the low backup battery icon appears.
TEST MODE
Figure 39 Test Mode
This icon displays when the system is in Walk
Test mode.
TOUCH SCREEN KEYPAD TRAFFIC
Figure 40 Touch Screen Keypad Traffic
An up arrow indicates the panel is sending
information to the touch screen keypad (if
installed). A down arrow indicates the touch
screen keypad is sending information to panel.
CELL RADIO
Figure 41 Cell Radio
If the option GSM (Cellular) Radio Module is
installed, the Cell Radio icon appears while the
Control Panel is receiving Over‐the‐Air (OTA)
firmware updates.
INTERIOR SENSOR OPEN
Figure 42 Interior Sensor Open
If an interior sensor is open (or a motion
detector has just been activated) this icon
appears. As a warning, the icon flashes during
arming.
Copyright © 2014 Linear LLC
29
