Wired Sensor Programming - 2gig Technologies Go!Control Panel Installation & Programming Manual

WIRED SENSOR PROGRAMMING
The Control Panel can be programmed with up to two (2)
wired sensors. The wired sensors are hardwire contact
loops connected to the loop input terminals on the Control
Panel's terminal strip. To see where the two (2) hardwire
sensors can be wired into the Terminal Block, see the
"Terminal Block Wiring Diagram" on page 20.
CAUTION: Wired sensors cannot be used for a CO or Fire
sensor loop.
IMPORTANT: Note that Wired Sensor reports as below:
• Wired Sensor #1 = Reports as Sensor #49
• Wired Sensor #2 = Reports as Sensor #50
See Figure 52 "Wired Sensor Programming Outline" on
page 45 on the next page for the steps required to program
wired sensors into the Control Panel. The options that can
be set for each wired sensor are:
• Q2: Wired Sensor Number. Select 1 or 2.
• Q: Wired Sensor # Type. Select the zone. For
example, (01) Exit/Entry 1, (02) Exit/Entry 2,
(03) Perimeter, and so on. See "Sensor Types
(Zones)" on page 36.
• Q: Wired Sensor # Equipment Type. Some
sensor type (zones) will prompt you to specify
the equipment type. Other sensor types will not
prompt you for an equipment type.
• Q: Wired Sensor # Equipment Code. Select the
four (4)‐digit equipment code that corresponds
to the appropriate sensor model. See
"Equipment Codes" on page 40
• Q: Wired Sensor # Equipment Age. Specify
whether the sensor is a (0) New or (1) Existing.
• Q: Wired Sensor # Normal State. Choose
between (0) Not Used, (1) Closed, (2) Open, (3)
End‐Of‐Line‐Resistor.
• Q: Wired Sensor # Dialer Delay. Delayed or
instant digital communicator reports for the
sensor. The delay time is set by Dialer Abort
screen.
• Q: Wired Sensor # Voice Descriptor. Name
assigned to the sensor and announced if
programmed.
• Q: Wired Sensor # Reports. Send or do not set
digital communicator reports for the sensor.
• Q: Wired Sensor # Chime. Select voice
announcement and chime options for the
sensor.

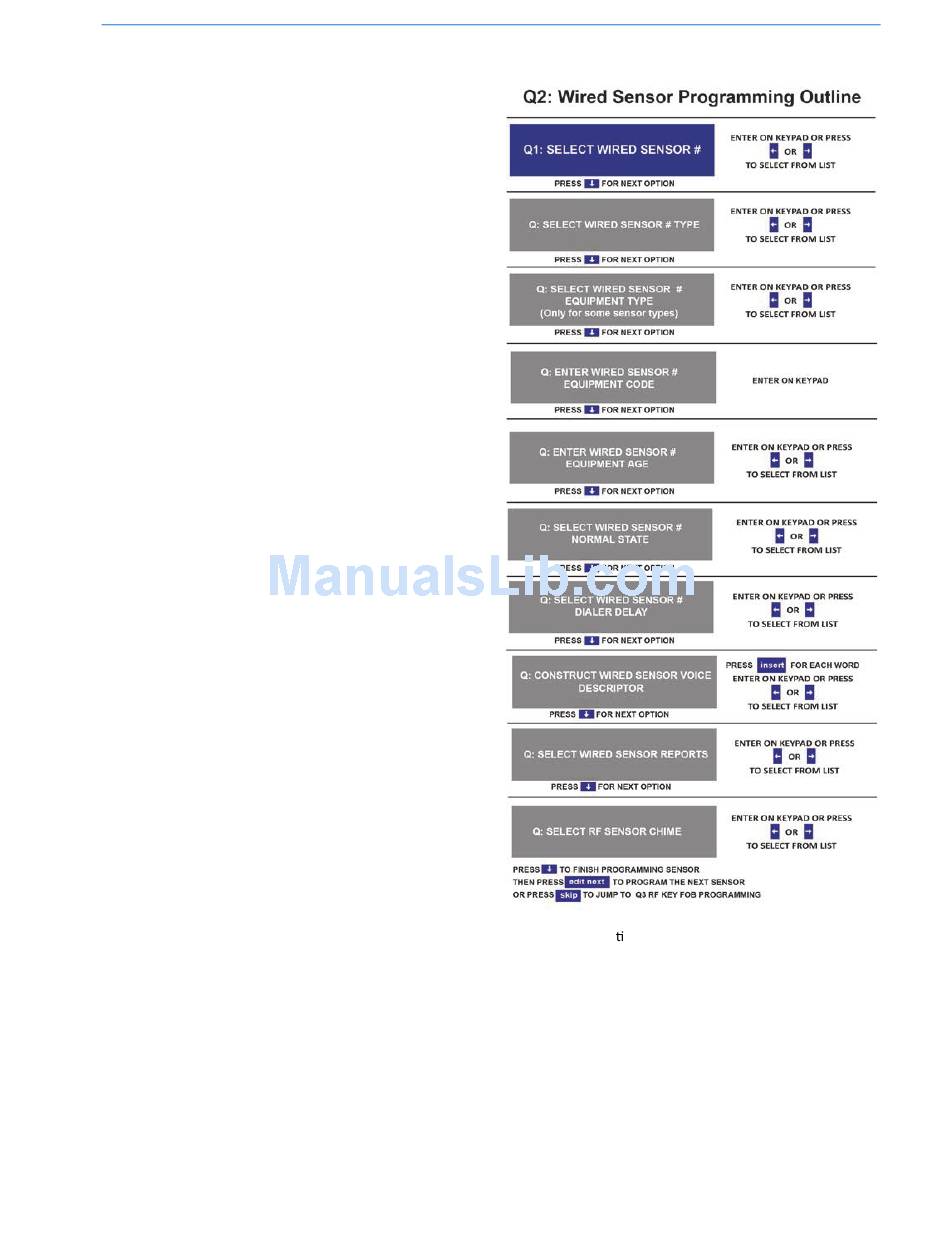

Q2: Wired Sensor Programming Outline
Figure 52 Wired Sensor Programming Outline
Scroll between op ons using the ← and → arrows. Move to
the previous or next prompt by pressing the ↑ and ↓
arrows.
To program another sensor click Next.
1
To exit programming, click Skip then End and Exit. Upon
2
exit, the panel takes several seconds to restart.
