Go!Control Wireless Security System | Installation and Programming Guide

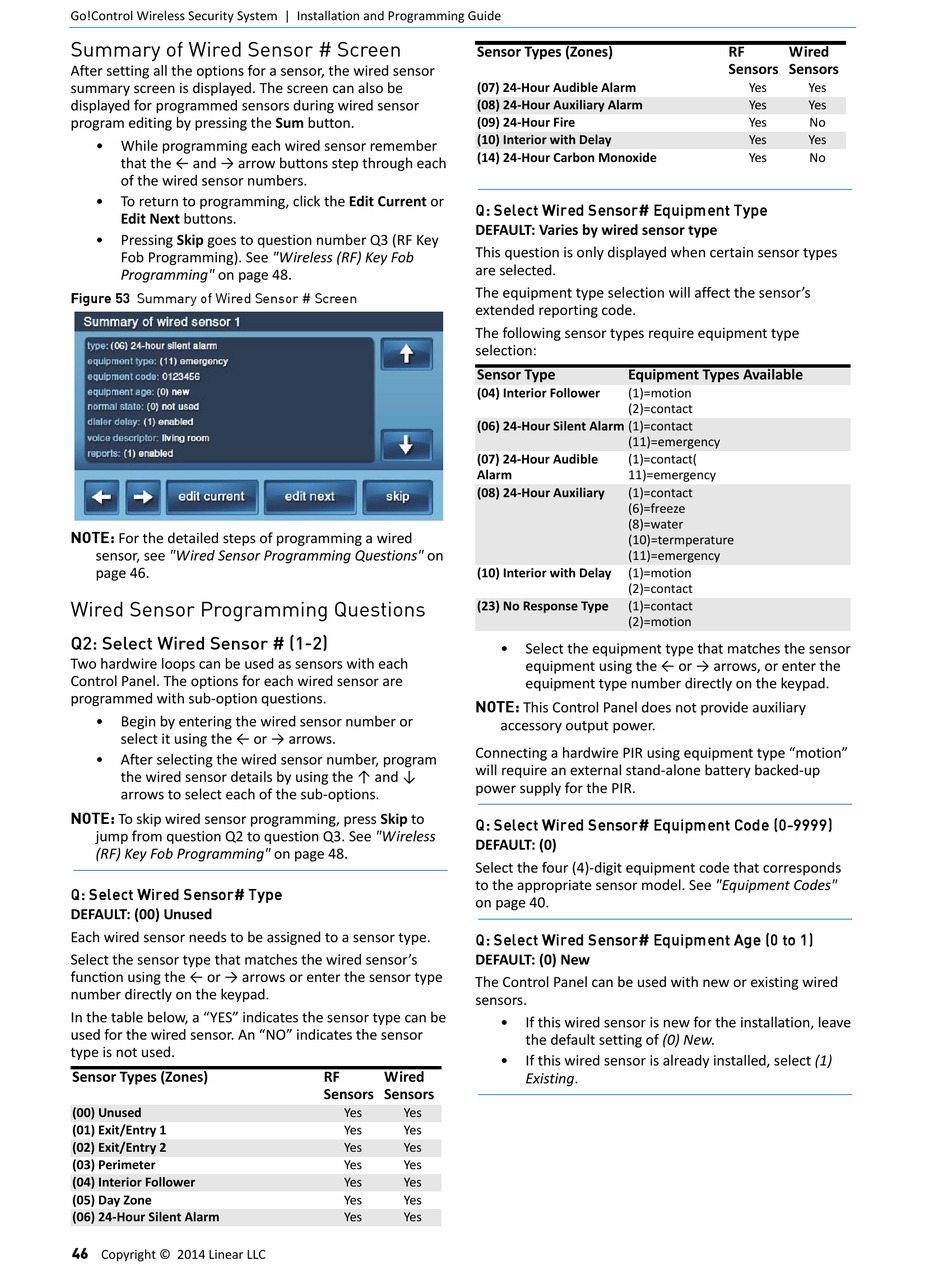

Summary of Wired Sensor # Screen
After setting all the options for a sensor, the wired sensor
summary screen is displayed. The screen can also be
displayed for programmed sensors during wired sensor
program editing by pressing the Sum button.
• While programming each wired sensor remember
that the ← and → arrow bu ons step through each
of the wired sensor numbers.
• To return to programming, click the Edit Current or
Edit Next buttons.
• Pressing Skip goes to question number Q3 (RF Key
Fob Programming). See "Wireless (RF) Key Fob
Programming" on page 48.
Figure 53 Summary of Wired Sensor # Screen
NOTE: For the detailed steps of programming a wired
sensor, see "Wired Sensor Programming Questions" on
page 46.
Wired Sensor Programming Questions
Q2: Select Wired Sensor # (1-2)
Two hardwire loops can be used as sensors with each
Control Panel. The options for each wired sensor are
programmed with sub‐option questions.
• Begin by entering the wired sensor number or
select it using the ← or → arrows.
• After selecting the wired sensor number, program
the wired sensor details by using the ↑ and ↓
arrows to select each of the sub‐options.
NOTE: To skip wired sensor programming, press Skip to
jump from question Q2 to question Q3. See "Wireless
(RF) Key Fob Programming" on page 48.
Q: Select Wired Sensor# Type
DEFAULT: (00) Unused
Each wired sensor needs to be assigned to a sensor type.
Select the sensor type that matches the wired sensor's
func on using the ← or → arrows or enter the sensor type
number directly on the keypad.
In the table below, a "YES" indicates the sensor type can be
used for the wired sensor. An "NO" indicates the sensor
type is not used.
Sensor Types (Zones)
(00) Unused
(01) Exit/Entry 1
(02) Exit/Entry 2
(03) Perimeter
(04) Interior Follower
(05) Day Zone
(06) 24‐Hour Silent Alarm
46 Copyright © 2014 Linear LLC
Sensor Types (Zones)
(07) 24‐Hour Audible Alarm
(08) 24‐Hour Auxiliary Alarm
(09) 24‐Hour Fire
(10) Interior with Delay
(14) 24‐Hour Carbon Monoxide
Q: Select Wired Sensor# Equipment Type
DEFAULT: Varies by wired sensor type
This question is only displayed when certain sensor types
are selected.
The equipment type selection will affect the sensor's
extended reporting code.
The following sensor types require equipment type
selection:
Sensor Type
(04) Interior Follower
(06) 24‐Hour Silent Alarm (1)=contact
(07) 24‐Hour Audible
Alarm
(08) 24‐Hour Auxiliary
(10) Interior with Delay
(23) No Response Type
•
NOTE: This Control Panel does not provide auxiliary
accessory output power.
Connecting a hardwire PIR using equipment type "motion"
will require an external stand‐alone battery backed‐up
power supply for the PIR.
Q: Select Wired Sensor# Equipment Code (0-9999)
DEFAULT: (0)
Select the four (4)‐digit equipment code that corresponds
to the appropriate sensor model. See "Equipment Codes"
on page 40.
Q: Select Wired Sensor# Equipment Age (0 to 1)
DEFAULT: (0) New
The Control Panel can be used with new or existing wired
sensors.
•
•
RF Wired
Sensors Sensors
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Equipment Types Available
(1)=motion
(2)=contact
(11)=emergency
(1)=contact(
11)=emergency
(1)=contact
(6)=freeze
(8)=water 
(10)=termperature 
(11)=emergency
(1)=motion
(2)=contact
(1)=contact
(2)=motion
Select the equipment type that matches the sensor
equipment using the ← or → arrows, or enter the
equipment type number directly on the keypad.
If this wired sensor is new for the installation, leave
the default setting of (0) New.
If this wired sensor is already installed, select (1)
Existing.
RF Wired
Sensors Sensors
Yes Yes
Yes Yes
Yes No
Yes Yes
Yes No
