WIRELESS SENSORS

Install wireless sensors in the appropriate location using the
Install Instructions as your guide. Instructions are included
with each wireless sensor.

HARDWIRE LOOPS

Hardwire loops can be programmed either Normally Open
(N/O) or Normally Closed (N/C). End‐of‐Line Resistors
(EOLR) can also be used to supervise the loops. Only
contacts should be used with the hardwire loops.
NOTE: The Control Panel does not support powering
external devices (PIR's, etc.).
NOTE: Hardwire loops cannot be used for a CO or Fire
sensor loop.
If either of the two (2) hardwire loops are going to be
1
used, install the contacts and then route the loop wire
to the Control Panel's wall cutout.
If end‐of‐line supervision is required for the loop, install
2
a 2.2kΩ resistor (not supplied) as shown in Figure
6  Hardwire Loop Wiring.

Wiring

Hardwire loops need to be programmed for contact type.

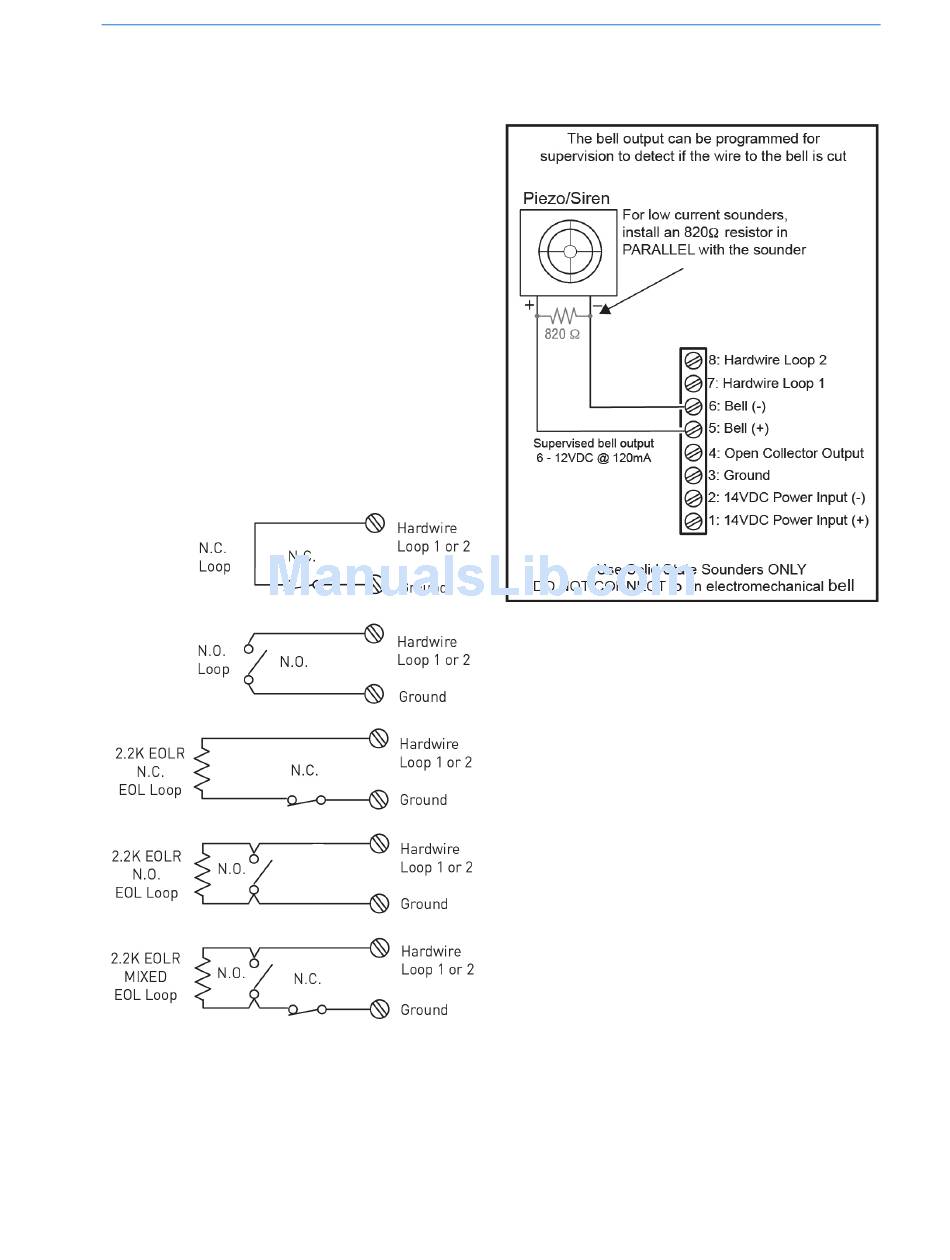

Figure 6 Hardwire Loop Wiring
WARNING: Stranded conductors clamped under wire‐
binding screws or similar parts shall have the individual
strands soldered together or arranged in a construction
that has been determined to be the equivalent.

REMOTE ALARM SOUNDER

The Control Panel provides two (2) terminals for an optional
connection to a remote electronic alarm sounder.
Figure 7 Remote Alarm Sounder
WARNING: To avoid damage to the output, do NOT
connect an electromechanical bell to these terminals.
The bell terminals can be supervised. If Q21: Siren
Supervision Time is set to (1) Enabled, and the wire
between the Control Panel and sounder is cut, the Control
Panel displays a trouble alert message for siren supervision
and sends a bell trouble report to the Central Station.
Install the remote sounder in a secure location where it
1
will be easily heard by occupants.
Route wiring from the remote sounder location to the
2
Control Panel's wall cutout.
NOTE: If the piezo alarm siren for the remote sounder has
an extremely low current draw or the sounder produces
hum or noise, install an 820Ω resistor in parallel with
the sounder.
Copyright © 2014 Linear LLC
Installation
15
