WIRELESS (RF) KEYPAD PROGRAMMING
The Control Panel can be programmed with up to four (4)
RF keypads or RF touch screen keypads.
NOTE: RF Keypads 1 ‐ 4 report to the Control Panel as
sensors 59 ‐ 62 (for emergency, and low battery
reports) .
RF Keypad Reporting Codes
Keypad 1 Reports as sensor #59
Keypad 2 Reports as sensor #60
Keypad 3 Reports as sensor #61
Keypad 4 Reports as sensor #62
• User Codes #1 ‐ #8 are reported for openings and
closings
• User Code #0 is reported for Quick Arming
The following options can be set for each RF keypad:
• Select RF Keypad Number. Select keypad number 1‐4.
• Select RF Keypad # Used. Enable or disable the
keypad.
• Select RF Keypad # Equipment Code. Select the
sensor model for the keypad. See "Equipment
Codes" on page 40.
• Select RF Keypad # Other Equipment Code. If you
selected (0000) Other, enter the special equipment
code.
• Select RF Keypad # Serial #. Enter the serial number
from the keypad or "learn" by sending signal.
• Select RF Keypad # Equipment Age. Select (0) New
or (1) Existing.
• Select RF Keypad # Emergency Keys. Select (1)
Enabled or (0) Disabled.
• Construct RF Keypad # Voice Descriptor.
RF Keypad Programming Outline

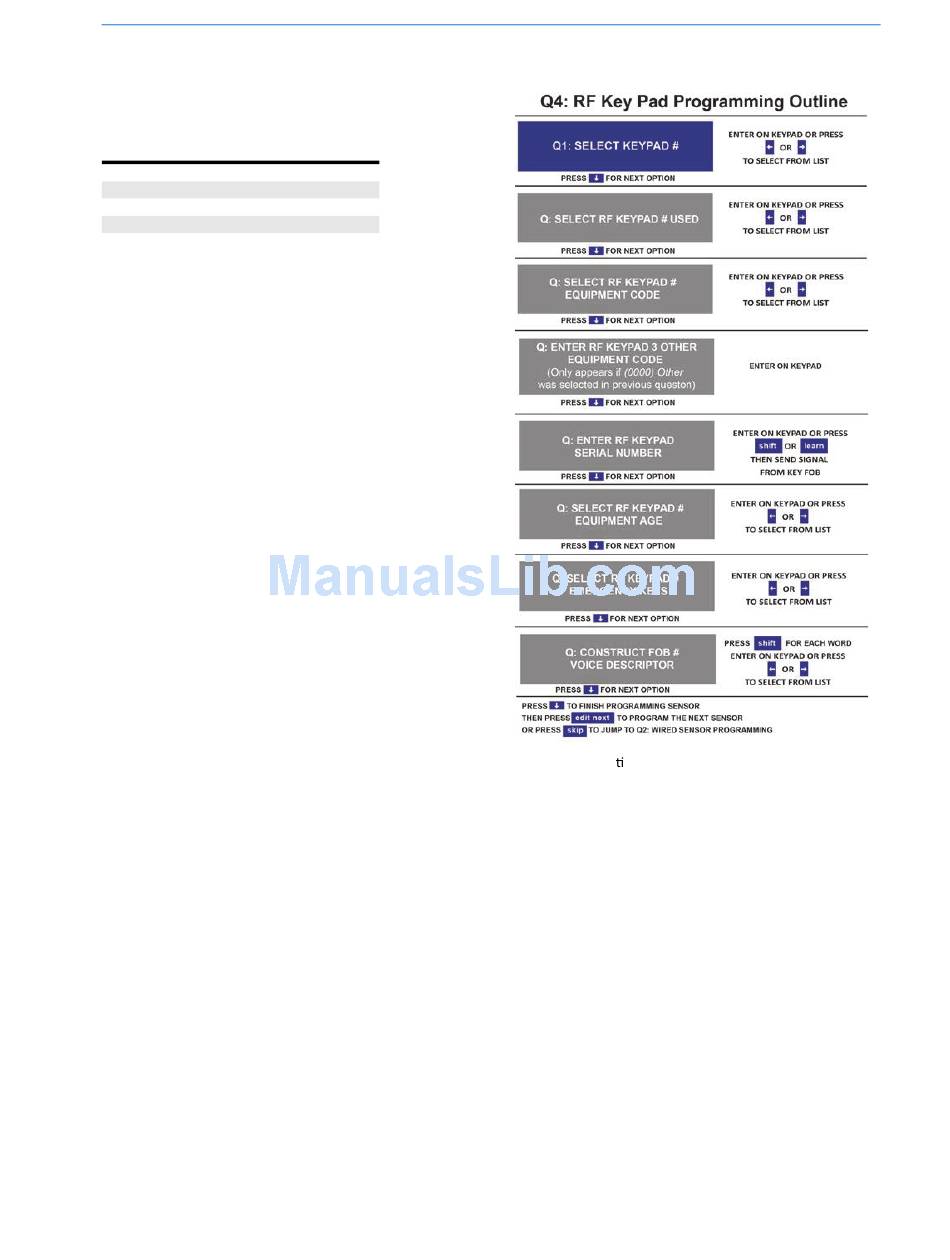

Figure 55 Keypad Programming Outline
Scroll between op ons using the ← and → arrows. Move to
the previous or next prompt by pressing the ↑ and ↓
arrows.
1 To program another sensor click Next.
To exit programming, click Skip, then End, and then
2
Exit. Upon exit, the panel takes several seconds to
restart.
3 Press Skip to jump to question Q4. See "RF Keypad
Programming Questions" on page 52
