Go!Control Wireless Security System | Installation and Programming Guide
WIRELESS (RF) KEY FOB
PROGRAMMING
The Control Panel can be programmed with up to eight (8)
RF key fobs.
Programming the fobs into the Control Panel involves
selecting the sensor number for a particular device, setting
or learning the serial number, and selecting the other
options for the sensor.
IMPORTANT: RF key fobs 1 ‐ 8 report to the Control Panel
as sensors 51 ‐ 58 (opening/closing, emergency, and low
battery reports).
Fob # Reports as Sensor #
1 51
2 52
3 53
4 54
5 55
6 56
7 57
8 58
See Figure 54 Key Fob Programming Outline for the steps
required to program fobs into the Control Panel. The
options that can be set for each fob are:
• Q3: Select Fob Number. Select key fob number 1‐8.
• Q: Select Fob # Used. Select (0) Disabled or (1)
Enabled.
• Q: Select Fob # Equipment Code. Select the four
(4)‐digit equipment code that corresponds to the
appropriate keyfob. See "Equipment Codes" on
page 40.
• Q: Enter Fob # Other Equipment Code. Enter the
special equipment code. This is only required when
the Key Fob # Equipment Code is set to (0000)
Other.
• Q: Enter Fob # Serial #. Enter the serial number
(typically a label on the sensor or the sensor
packaging) or press Shift then Learn to place the
panel into learning mode. Then trip the sensor to
transmit the serial number to the panel.
• Q: Select Fob # Equipment Age. Specify whether
the sensor is a (0) New or (1) Existing sensor.
• Q: Select Fob # Emergency Key. Choose the
function of double‐pressing the top buttons (0)
Disabled, (1) Auxiliary Alarm, (2) Audible Alarm, (3)
Silent Panic, or (4) Fire.
• Q: Select Fob # Key # Can Disarm. Choose (0)
Disabled or (1) Enabled to specify if the key fob is
allowed to disarm the system.
• Q: Construct Fob # Voice Descriptor. Construct the
name assigned for the sensor announcement. See
"Voice Descriptors" on page 38.
• Q: Select Fob # Arm No Delay. Choose if keyfob will
arm instantly without an exit delay.
• Q: Select Fob # Key # Output. Select action for key
fob auxiliary button.
48 Copyright © 2014 Linear LLC

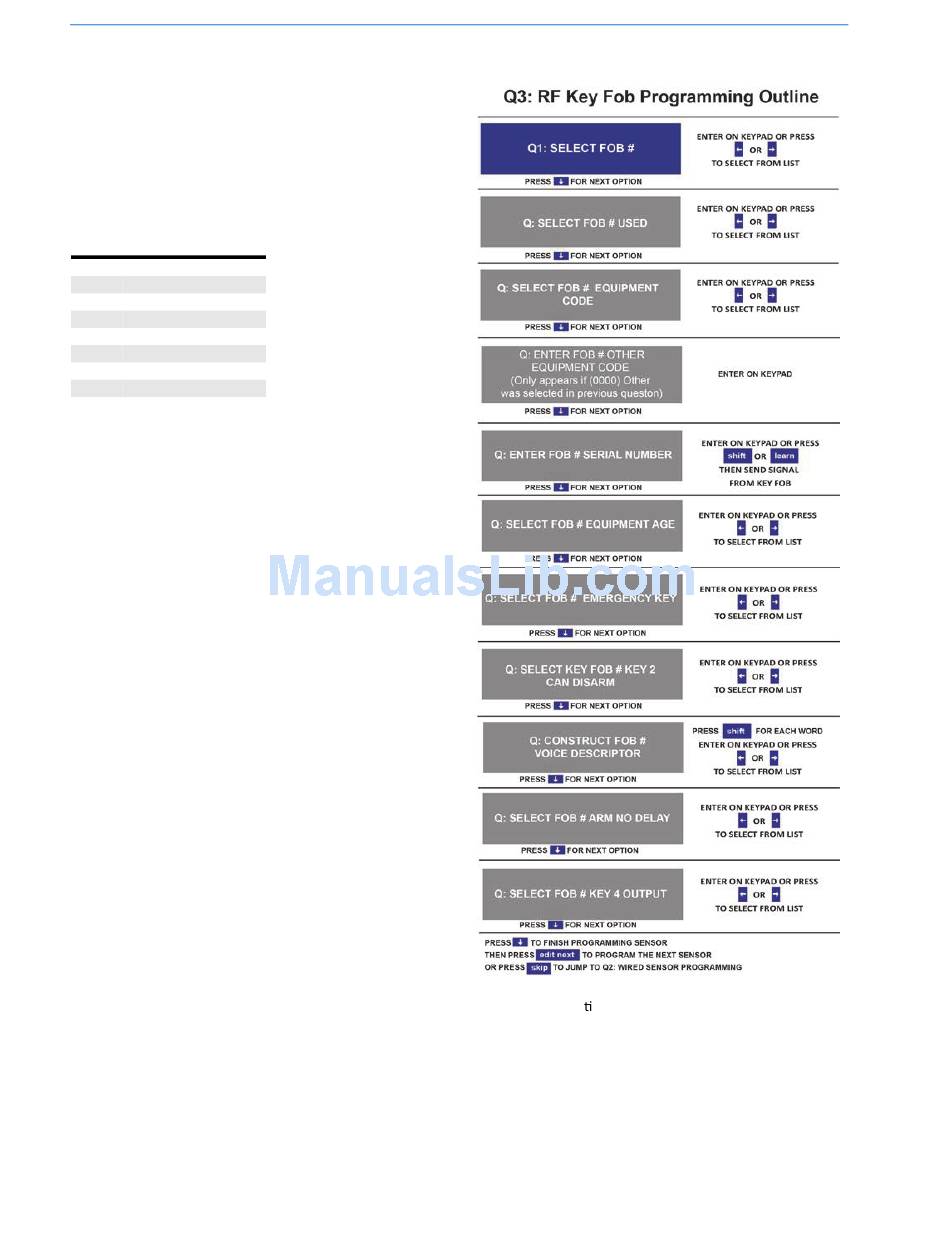

Key Fob Programming Outline
Figure 54 Key Fob Programming Outline
Scroll between op ons using the ← and → arrows. Move to
the previous or next prompt by pressing the ↑ and ↓
arrows.
To program another sensor click Next.
1
To exit programming, click Skip, then End, and then
2
Exit. Upon exit, the panel takes several seconds to
restart.
TIP: Press Skip to jump to question Q4. See "RF Keypad
Programming Questions" on page 52.
