INSTALLATION

CONTROL PANEL MOUNTING PLATE

Mount the Control Panel on the wall in a convenient location (or use the optional desk mount). These tools may be required
to mount the Control Panel onto the wall:
• Screwdriver
• Wire Stripper
• Staple Gun
• Drywall Saw (or equivalent)
• Ladder
Remove the locking screw from the top of the Control Panel case and remove the mounting plate.
1
Use the mounting plate as a template to mark the wall for the wiring cutout slot. Use a drywall saw to cut the slot.
2
If using the optional GSM (Cellular) Radio Module with an external antenna, remove the plastic knockout labeled
3
"EXTERNAL ANTENNA" on the mounting plate. Mark and cut a slot in the drywall for the external antenna.
4 Attach the mounting plate to the wall using three (3) screws.

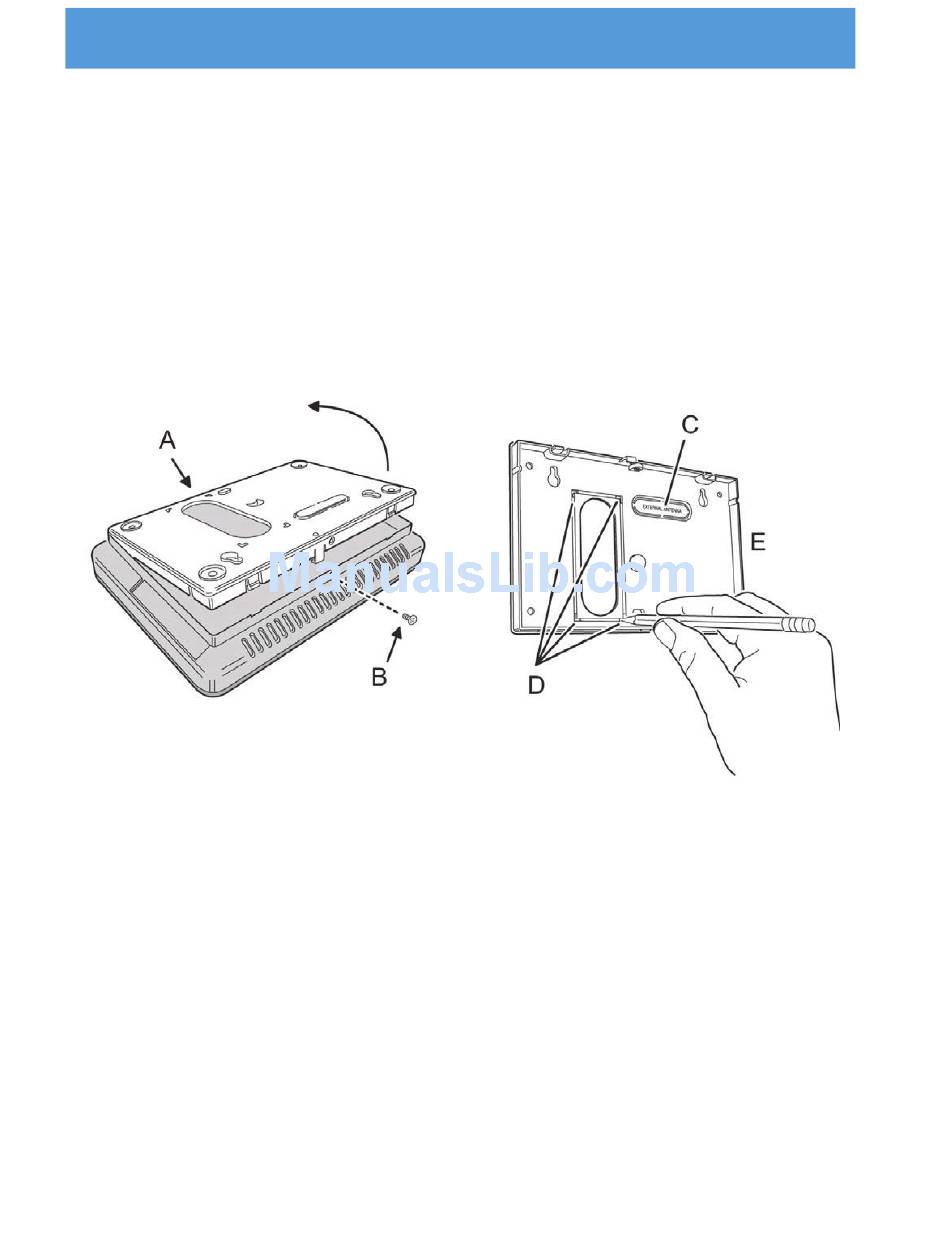

Figure 5 Control Panel Mounting Plate
A Mounting plate
B Remove case screw and mounting plate
C If using external antenna, remove knockout plate.
D Use mounting plate as a template to mark wire cutout hole in dry wall.
E Mount plate with three (3) screws.
