Go!Control Wireless Security System | Installation and Programming Guide

GSM (CELLULAR) RADIO MODULE

If installing the GSM (Cellular) Radio Module, see below:

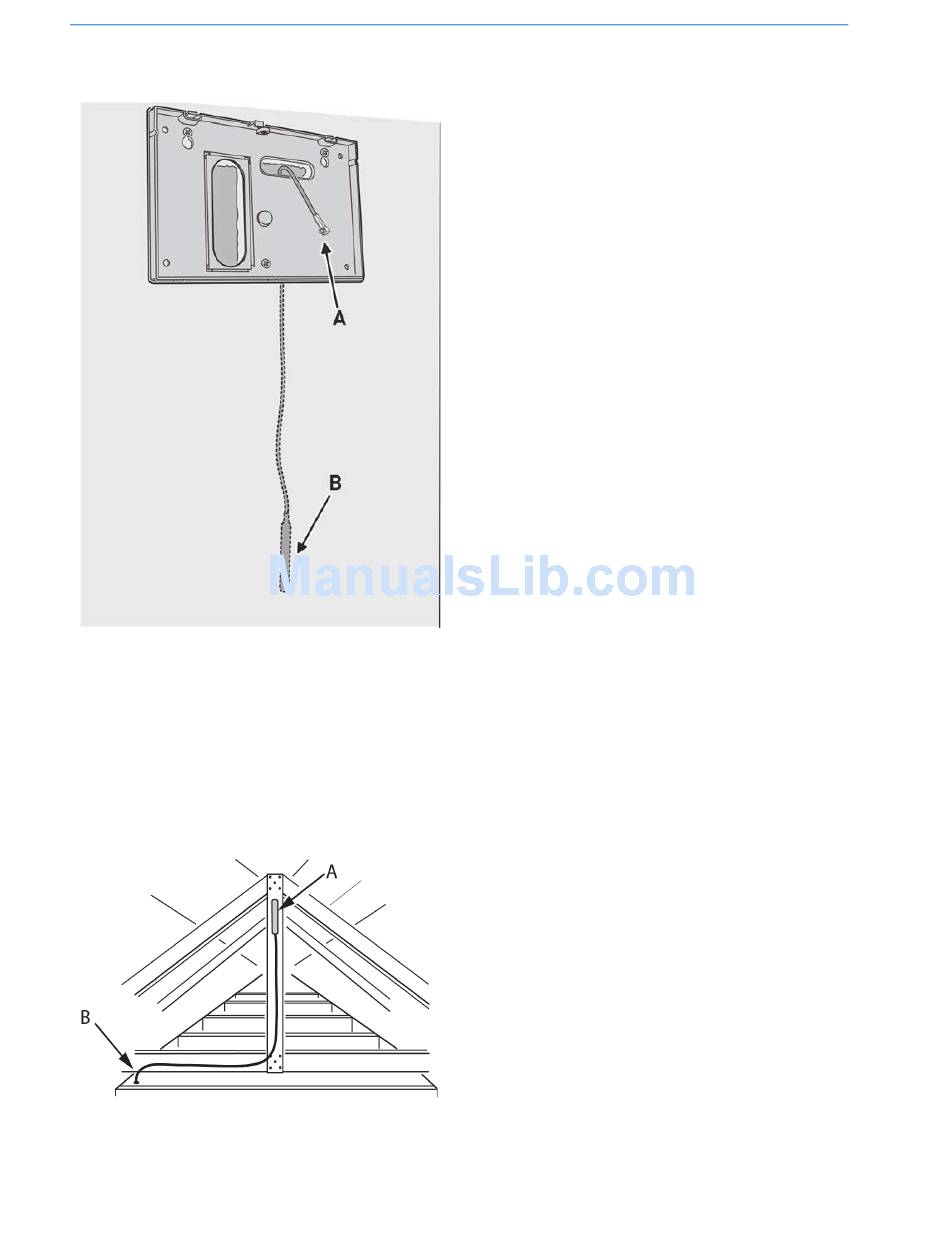

Figure 12 In-Wall Antenna Installation
A GSM (Cellular) Radio Module Connector
B End of antenna hangs down inside the wall
NOTE: The routing of the antenna wire is critical. You must
route the wire exactly as directed or cell radio
interference will occur.
When using external antennas, plug the antenna
1
connector into the GSM (Cellular) Radio Module. The
antenna drops into the wall or mounts in the attic with
the cable passing through the slot in the Control Panel's
mounting plate.
Figure 13 Attic Antenna Installation
A Attic antenna mounted as high as possible
B Coaxial cable to Control Panel
18 Copyright © 2014 Linear LLC
The GSM (Cellular) Radio Module should already be
activated by the factory. If not, contact the Remote Service
Provider. For the GSM (Cellular) Radio Module to function,
it must be activated before it can be enrolled. Enrollment is
accomplished by creating an account with the provider.
